PRODUCT OVERVIEW AND ASSEMBLY

14

eng

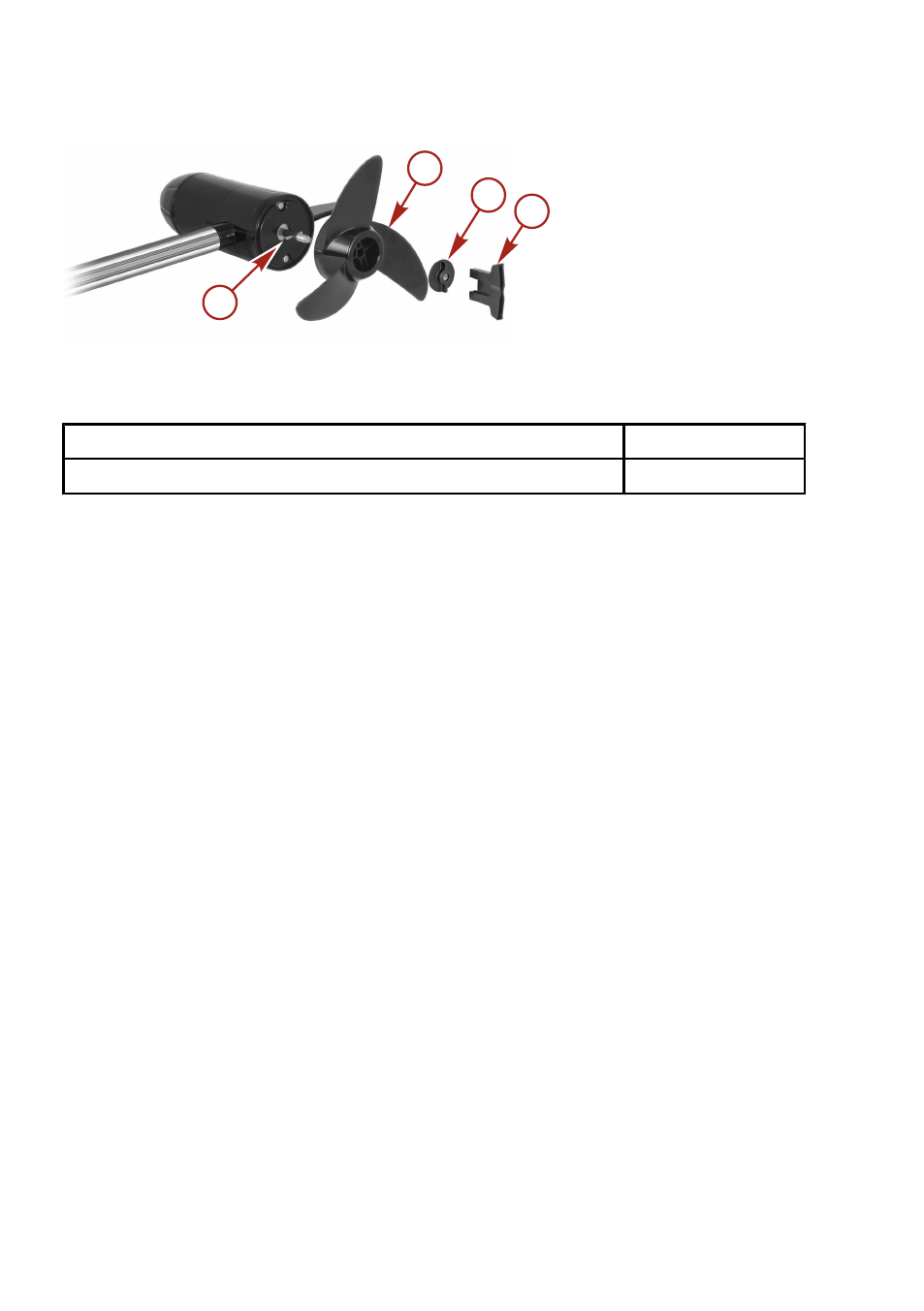

3. Install the propeller nut. Tighten securely.

a -

Propeller pin

b -

Propeller

c -

Propeller nut

d -

Propeller

wrench

4. Use a MotorGuide propeller wrench or pliers to tighten the propeller

nut another ¼ turn.

Recommended MotorGuide Accessory Description

Part Number

MotorGuide prop wrench kit

MGA050B6
