WIRING AND BATTERY INFORMATION

eng

4. Connect a jumper cable (common ground bond) from the trolling

motor battery "d" negative (–) terminal to the engine battery

negative (–) terminal.

NOTE: Vessels with multiple batteries, must have a common ground

bonding circuit. Not establishing a common ground between the vessel

batteries, may cause severe corrosion, electrolysis, or an electrical

shock.

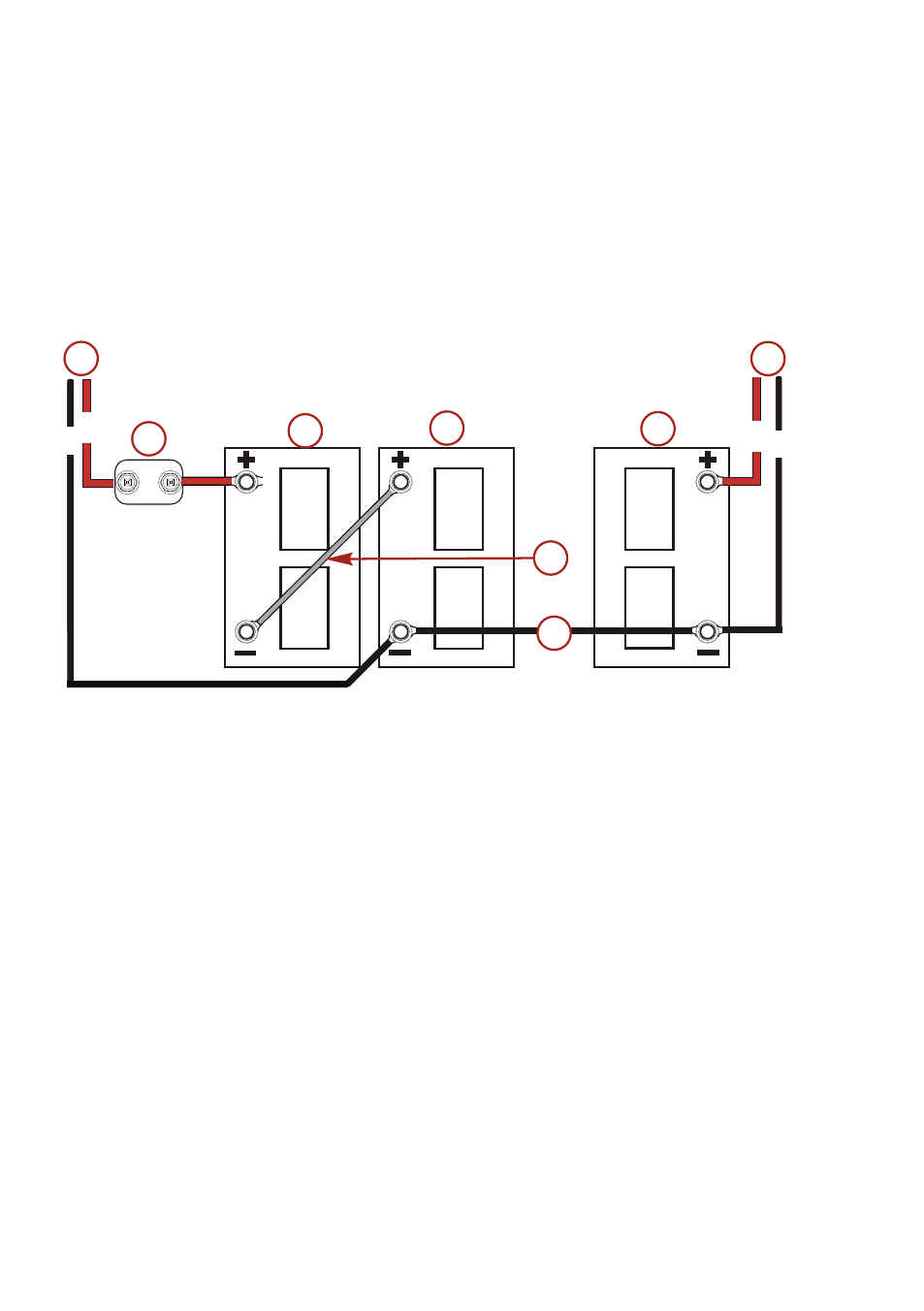

a -

Power cables to trolling motor

b -

50 amp manual reset circuit breaker

c -

Trolling motor battery "c"

d -

Trolling motor battery "d"

e -

Series cable connection

f -

Common ground bond

g -

Engine starting battery

h -

Power cables to engine

RED

BLK

REDRED

44328
