Installing the Motor into the Bow Mount
1. Turn the bracket door knob counterclockwise to loosen and open
the bracket door.
2. Place the motor column into the bracket and close the door.
3. Turn the bracket door knob clockwise to tighten the motor column
in the bracket.

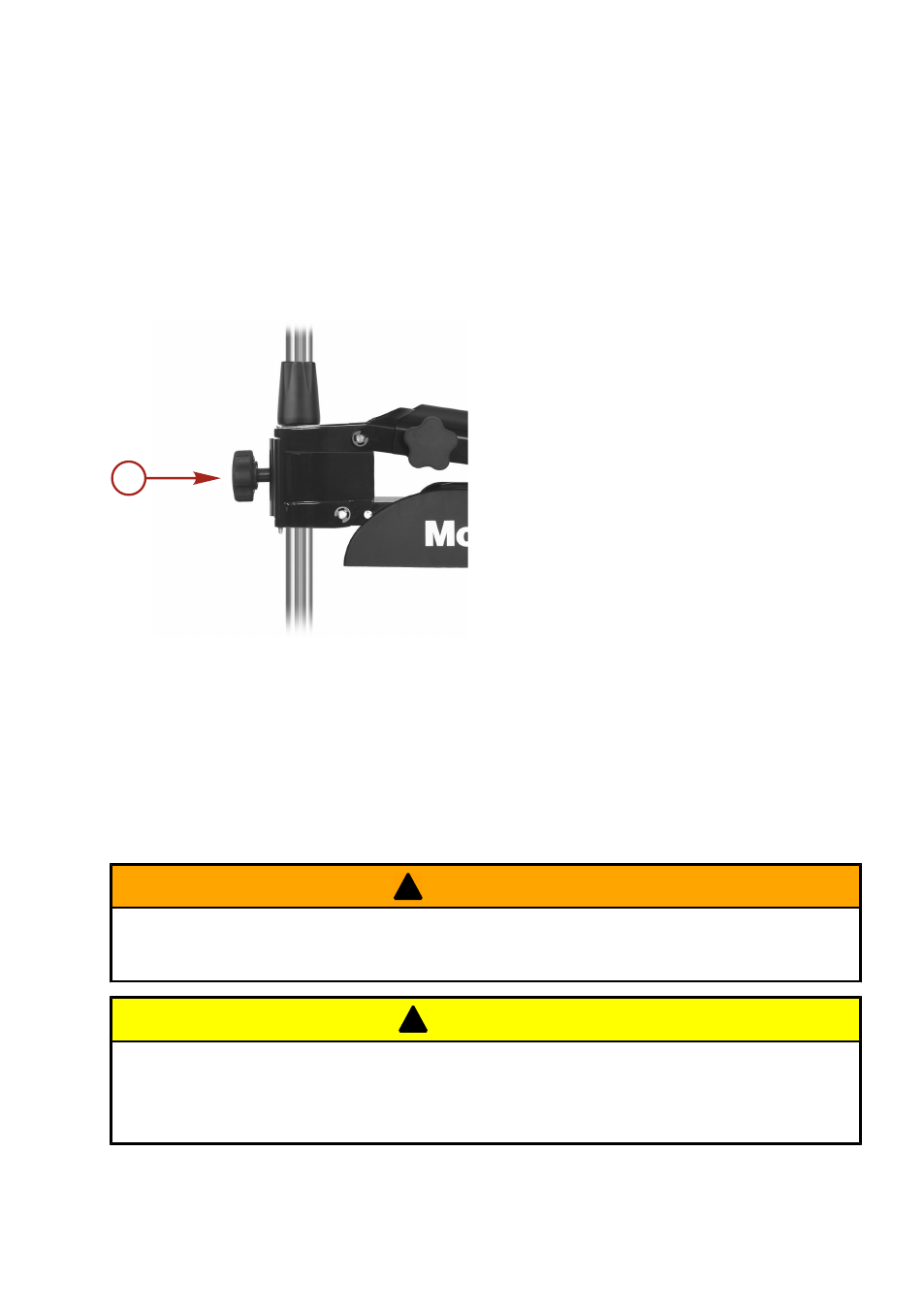

a -
Bracket door knob
Removing the Motor from the Bow Mount
1. Turn the bracket door knob counterclockwise to loosen and open
the bracket door.
2. Remove the motor column from the bracket and close the door.
Stowing the Trolling Motor
!
WARNING
Rotating propellers can cause serious injury or death. Never start or
operate the motor out of water.
!
CAUTION
Moving parts, such as hinges and pivot points, can cause serious
injury. Keep away from moving parts when stowing, deploying, or
tilting the motor.
