WIRING AND BATTERY INFORMATION

eng

NOTE: Vessels with multiple batteries, must have a common ground

bonding circuit. Not establishing a common ground between the vessel

batteries, may cause severe corrosion, electrolysis, or an electrical

shock.

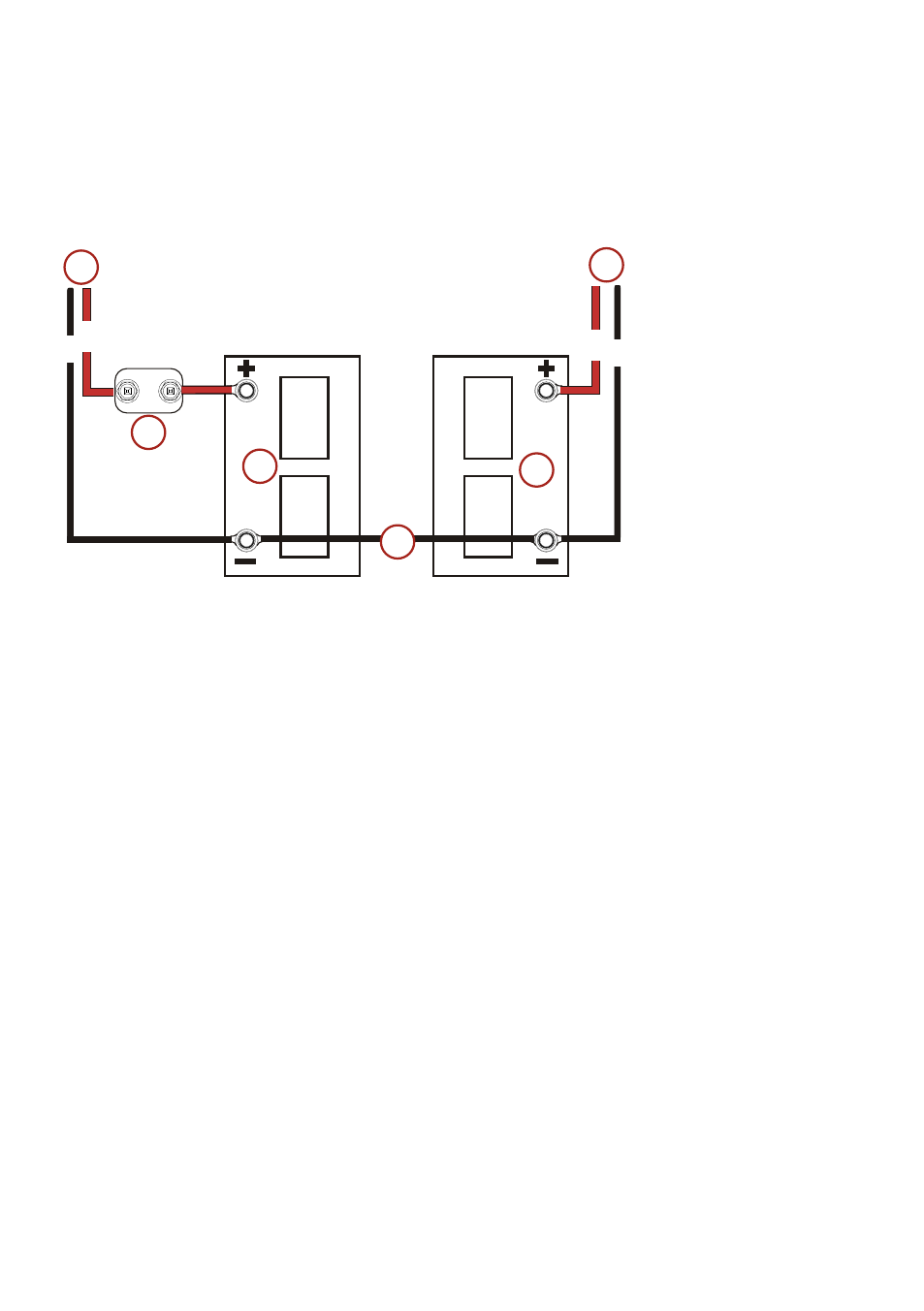

a -

Power cables to trolling motor

b -

50 amp manual reset circuit breaker

c -

Trolling motor battery

d -

Engine starting battery

e -

Power cables to engine

f -

Common ground bond

12 VOLT PARALLEL CIRCUIT BATTERY CONNECTION

1. Install a 50 amp manual reset circuit breaker in line with the trolling

motor power cable positive lead and the battery positive (+)

terminal.

2. Connect a jumper cable between both of the trolling motor battery

positive (+) terminals.

3. Connect a jumper cable between both of the trolling motor battery

negative (–) terminals.

4. Connect the black trolling motor power cable negative lead to the

battery negative (–) terminal.

RED

BLK

REDRED
