MotorGuide VariMAX - Manual (Page 29)

MOUNT INSTALLATION
eng
25
1. Select an appropriate area on the deck of the boat to install the
mount. Ensure that the forward mounting screws will not penetrate
the hull.

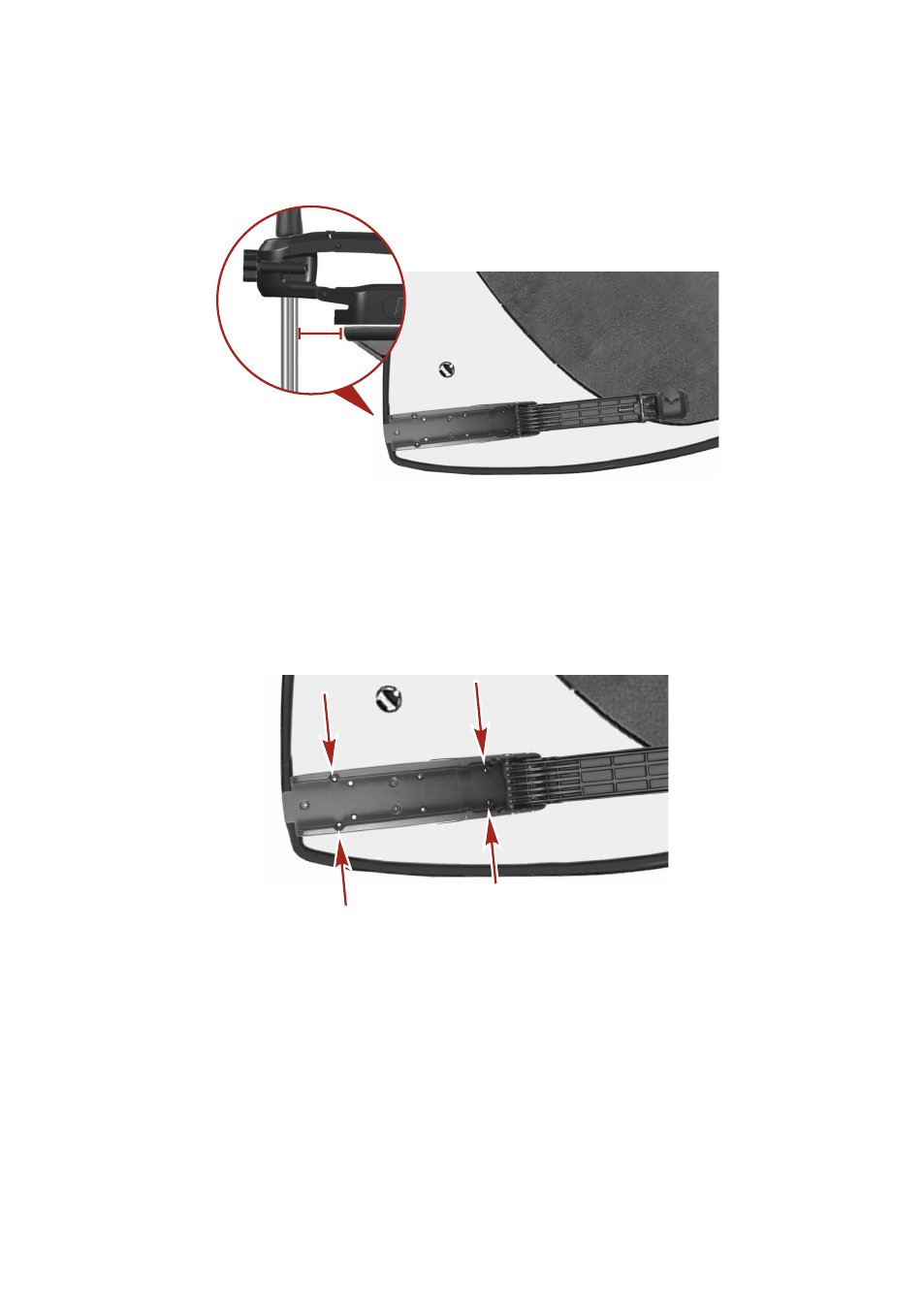

39074
Mount on deck
2. Place the bow mount base on the surface of the boat deck. Use the
mount base as a template to mark the locations of the front
mounting holes in the plastic decket and the rear mounting holes
on the mount base.
39075
Mount base mounting holes
3. Drill the mounting holes with a 7 mm (1/4 in.) diameter drill bit.
Remove any debris.
IMPORTANT: Use a larger drill bit to countersink the holes on
fiberglass boats to prevent cracking.
4. Insert the rubber washers between the base of the mount and the
boat mounting surface. Install the steel washers and nylon locking
nuts onto the mounting screws underneath the boat deck. Tighten
securely with a Phillips screwdriver and 11 mm (7/16 in.) wrench.
