WIRING AND BATTERY INFORMATION
16
eng
• Use 13 mm (6 gauge) battery cables if extending the existing wire
beyond the standard battery cable.
Recommended MotorGuide Accessory Description Part Number
Trolling motor power plug 8M4000953
Trolling motor sp (receptacle) 8M4000954
50 amp alligator clips 8M4000287
6 gauge battery cable and terminals with 50 amp manual reset
circuit breaker
MM309922T
50 amp manual reset circuit breaker MM5870
BluVis Battery Voltage Indicator

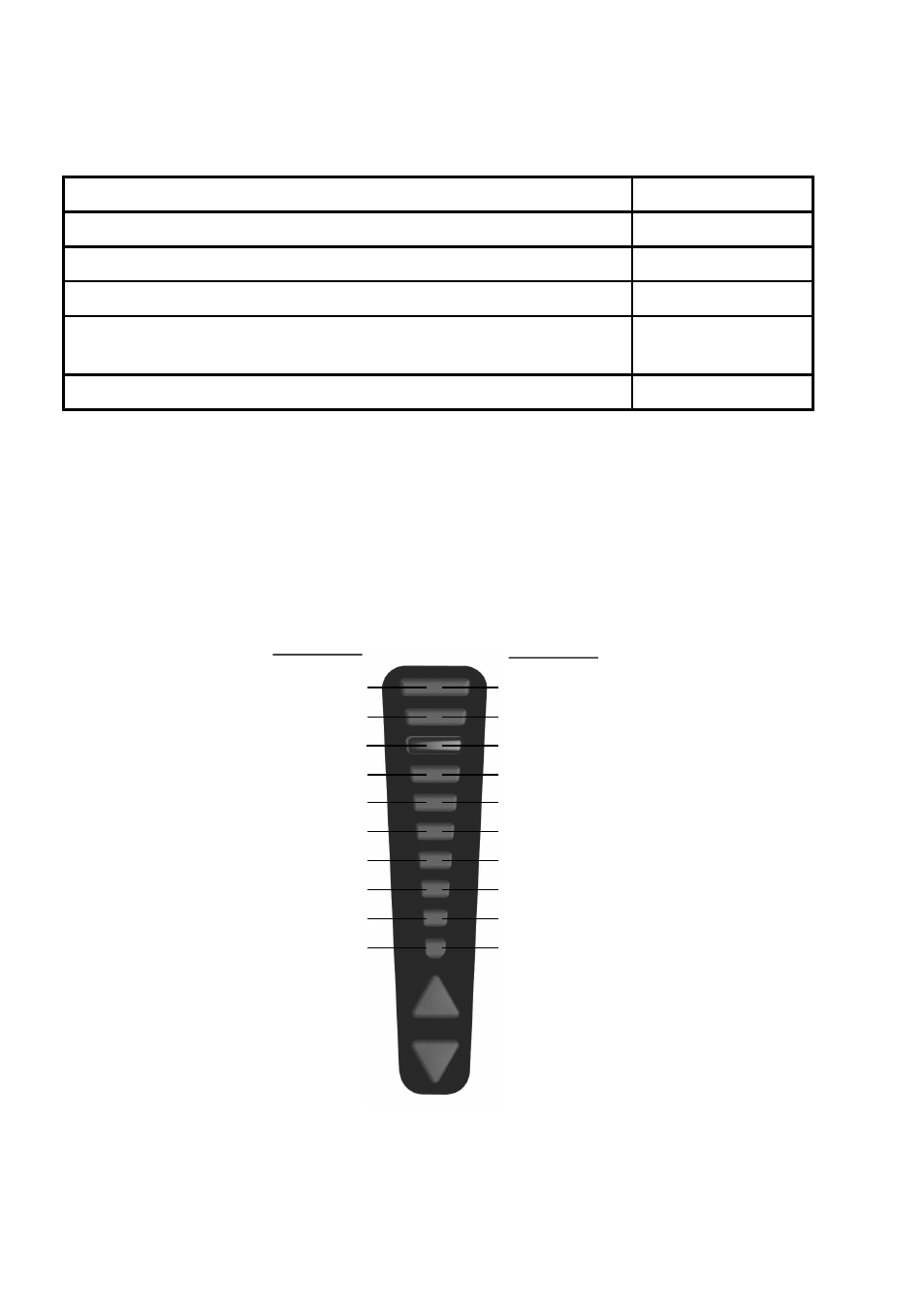

Use the BluVis function display to determine battery voltage level. The
battery indicator will display the voltage for four seconds when the motor
is connected to the battery and when the speed control is turned off.
Refer to the diagram below to reference remaining battery voltage for
12 and 24 volt battery connections.
27 volts
26 volts
25 volts
24 volts
23 volts
22 volts
21 volts
20 volts
19 volts
18 volts
13.5 volts
13 volts
12.5 volts
12 volts
11.5 volts
11 volts
10.5 volts
10 volts
9.5 volts
9 volts
12 volt 24 volt
45682
