MOUNT INSTALLATION

eng

Transom Mount Installation

NOTE: The transom mount will fit transoms up to 8.25 cm (3.25 in.)

thick.

IMPORTANT: Overtightening the transom clamp screws can weaken

or damage the mount bracket.

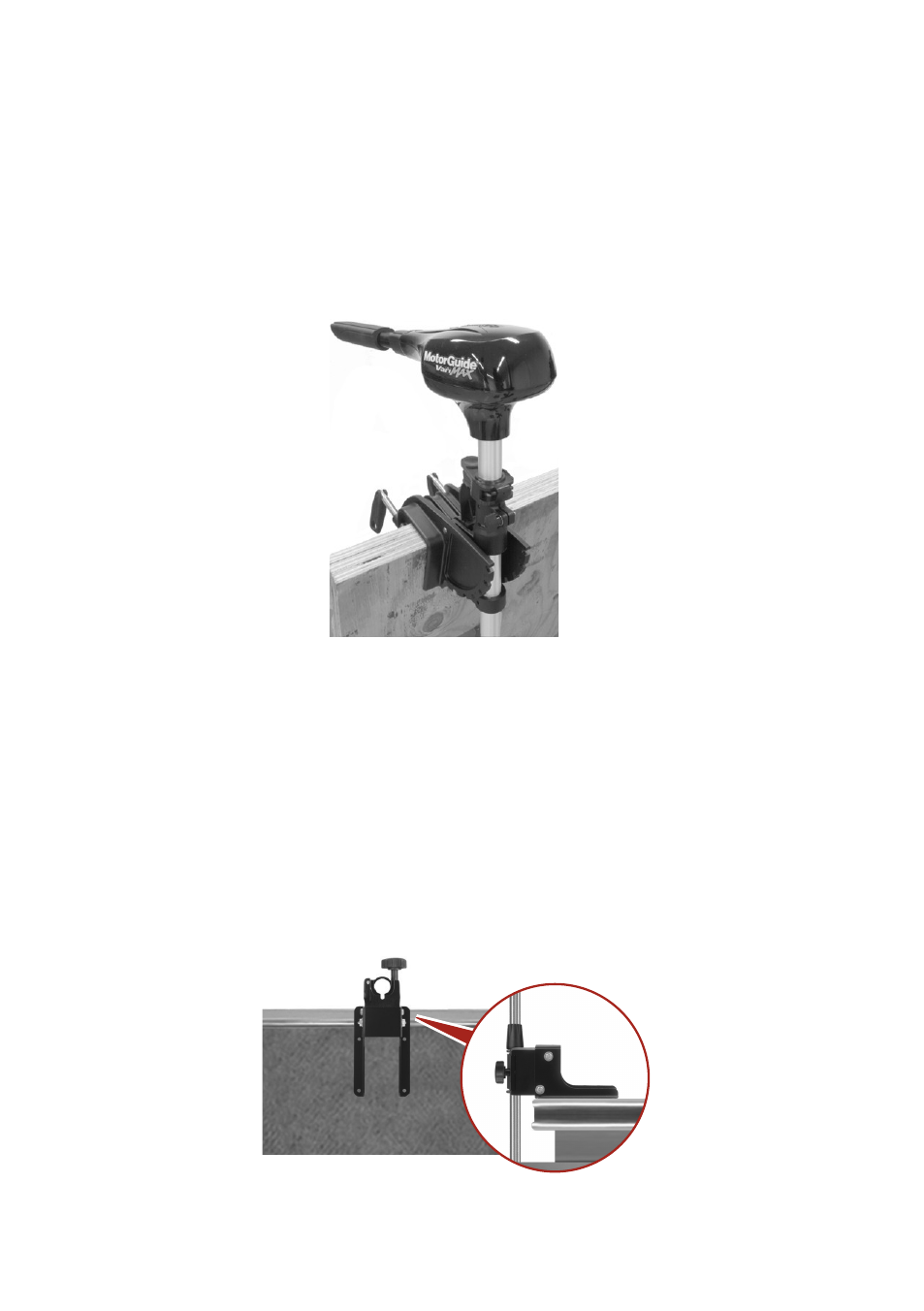

1. Place the transom mount onto the transom of the boat.

45673

2. Tighten the transom clamp screws securely.

Pontoon Mount Installation

IMPORTANT: Choose an area on the deck which allows 2.5 cm

(1 in.) clearance between the column and the bow of the boat for all

motor positions.

1. Select an appropriate area on the deck of the boat to install the

mount.

39066
