PCL-7
CLIP-LOC
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
1. Metal Roof Deck Panels - No. 24 MSG minimum gauge coated steel, 16 in. wide, 1-3/4 in. at female rib and 1-5/8” at male leg.
Panels continuous over three or more spans with no end-laps. A bead of sealant may be used at ribs.
METAL SALES MANUFACTURING CORPORATION - “Clip-Loc”
2. Roof Deck Fasteners (Panel Clips) - One part assembly, 2-1/2 in. wide, 8 in. long with formed areas to engage panel side and center
ribs. Fabricated from No. 20 MSG coated steel. Three guide holes located at clip ends. Clips spaced 5’-0” on center.
METAL SALES MANUFACTURING CORPORATION - “Clip-Loc”
3. Fasteners (Screws) - Fasteners used to attach the panel clips (Item 2) to purlins
(Item 4) to be No. 10-16 by 1 in. long, self drilling, self tapping, No. 2 Phillips drive, wafer head coated steel, screws. Two screws used
for each clip with one screw inserted into the outermost guide hole at each end.
4. Purlins - No. 16 MSG minimum gauge steel (Minimum yield strength 50,000 psi.). Spaced 5’-0” on center maximum.
Refer to General Information, Roof Deck Constructions, for items not evaluated
*Bearing the UL Classification Marking

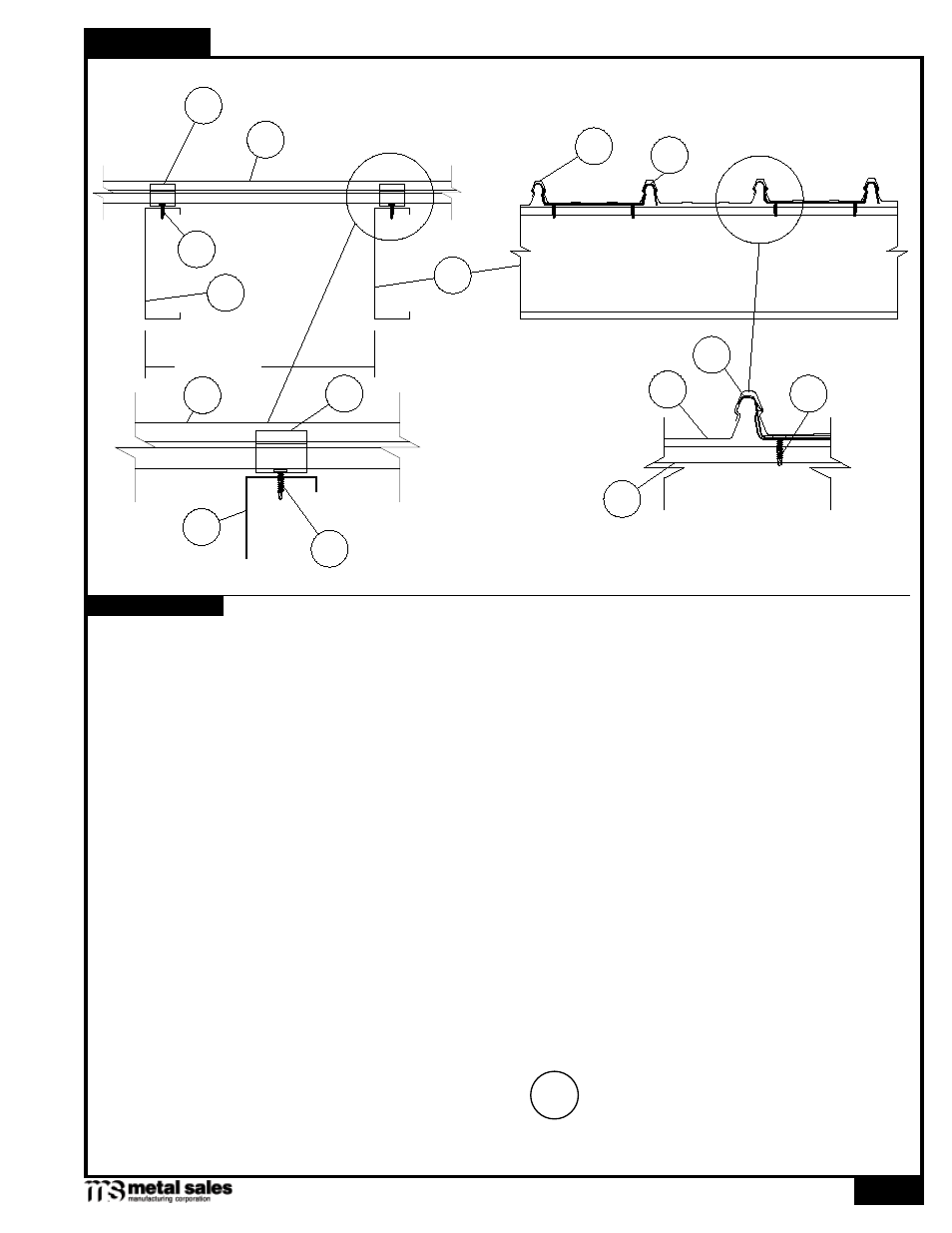

Construction No. 586A
Uplift - Class 90
Fire Not Investigated
CLIP-LOC
4
1
2
3
Underwriters Laboratories Inc. ®
UL
®
LISTED
Ul 580 w
ind
U
PlifT
i
nformaTion
(
ConT
.)
4
1
2
3
2
1
4
1 2
4
3
5'-0" Maximum
