PCL-6
CLIP-LOC
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
Ul 580 w
ind
U
PlifT
i
nformaTion

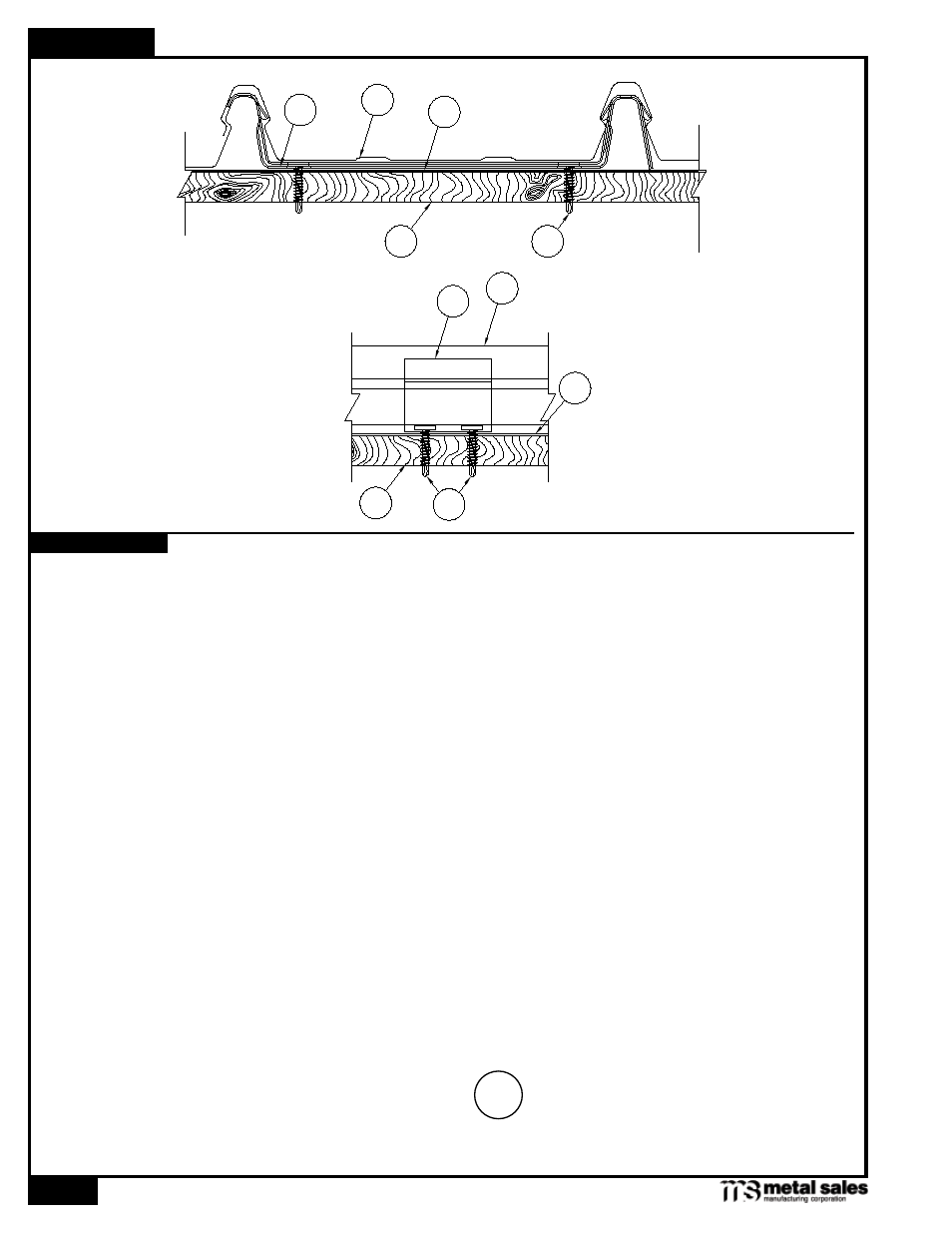

1. Metal Roof Deck Panels* No. 24 MSG minimum gauge coated steel, 16 in. wide, 1-5/8 in. high at ribs. Panels continuous over
three or more clips with no end-laps. A full rib formed in the center of the panel with ribs at each side formed to engage adjacent panels.
All ribs designed to snap over the Panel Clips (Item 2).
METAL SALES MANUFACTURING CORPORATION - “Clip-Loc”
2. Roof Deck Fasteners* (Panel Clips) - One part assembly, 2-1/2 in. wide, 7 in. long at the base, with an area at each end formed to
engage ribs of adjacent panels. Fabricated from No. 20 MSG coated steel. Guide holes, 1/4 in. diameter, located in base of clip with
three located on each side. Two inner guide holes to be used. Clips spaced maximum 36 in. OC.
METAL SALES MANUFACTURING CORPORATION - “Clip-Loc”
3. Fasteners (Screws) - Fasteners used to attach the panel clips (Item 2) to the plywood decking to be No. 10-12 by 1 in. long, No. 2
Phillips drive, plated steel screws. Four screws used per clip with two located at each end.
4. Sealant - Sealant used to seal all plywood deck joints to be a one part urethane tube type.
5. Joist Hangers (optional) - Joist hangers to be seat type, No. 18 MSG thick coated steel.
6. Supports (Joists/Rafters) - Spaced a maximum of 24 in. OC. Any of the following types may be used:
A. No. 16 MSG min. thickness steel (50,000 psi. min yield strength).
B. Graded dimensional lumber, No. 2 or better.
7. Plywood Decking - Plywood decking graded per APA specifications, CDX, 19/32 in. thick (5/8 in. nominal), 40/20, exposure 1,
square edge. Butt joints not blocked. All joints sealed with a one part urethane sealant (item 4) applied with caulking gun (or other)
and feathered outward from joint.
Fasteners:
For wood Supports: No. 8 by 2-1/2 in. long No. 2 Phillips drive, coarse thread, bugle-head, plated steel wood screws.
For Steel Supports: No. 10-24 by 1-7/16 in. long, self-drilling, self-tapping, No. 2 Phillips drive, wafer head steel screws.
Refer to General Information, Roof Deck Constructions, for Items Not Evaluated.
*Bearing the UL Classification Marking
Construction No. 586
Uplift - Class 90
Fire Not Investigated
CLIP-LOC
4
4
1
1
2
2
7
7
3
3
Underwriters Laboratories Inc. ®
UL
®
LISTED
