10 D24022 | Date 10/2014
Setup and description
2. Construction and description
2.1 Construction
1
2
3
4
7
8
5 6

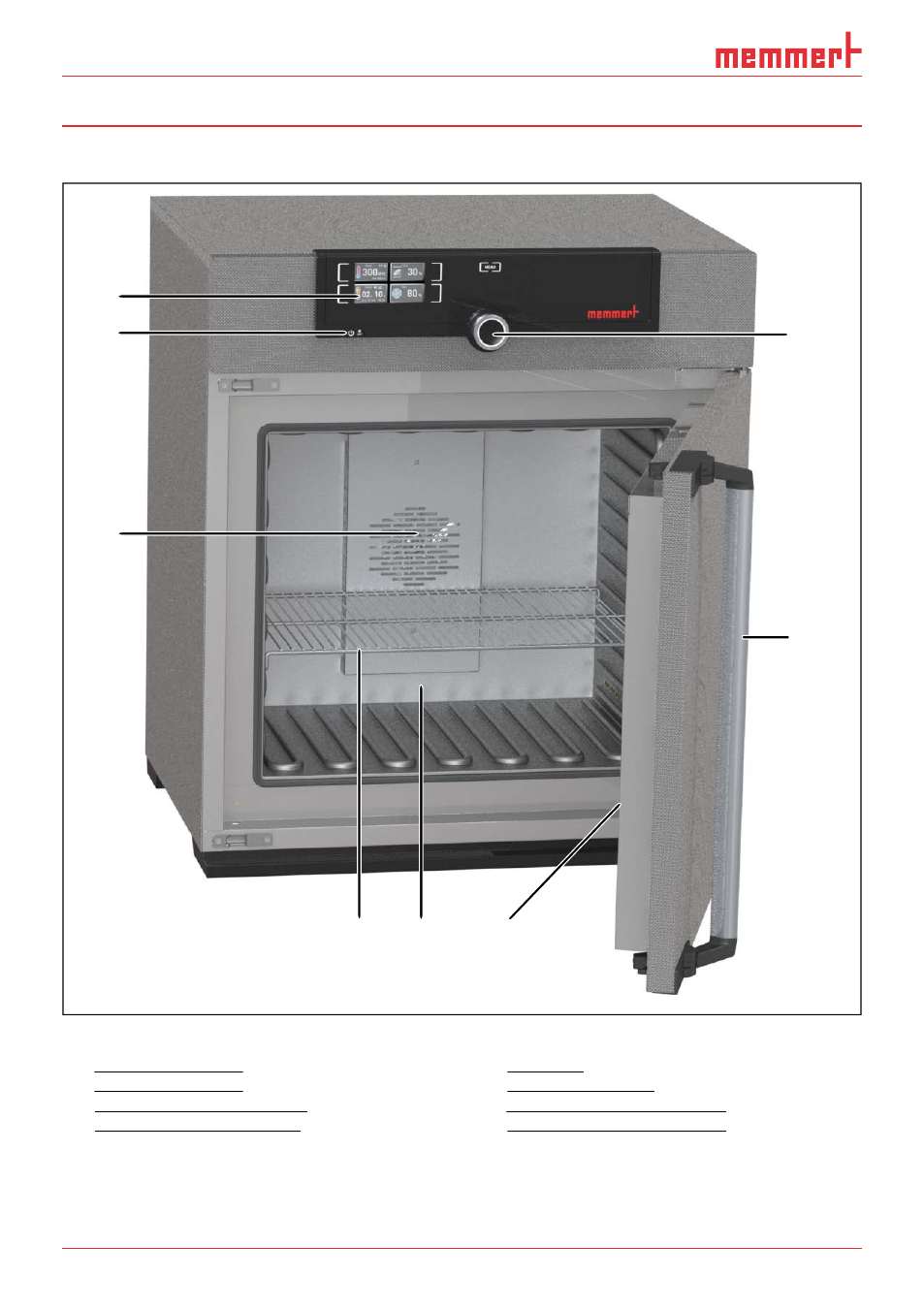

Fig. 2 Construction
1 ControlCOCKPIT with capacitive function
keys (see page 24)
ControlCOCKPIT with capacitive function ControlCOCKPIT with capacitive function
2 On/Off switch (see page 21)
keys (see page 24) keys (see page 24)
3 Working chamber fan (for
On/Off switch (see page 21) On/Off switch (see page 21)
UF/IF/SF appliances only)
Working chamber fan (for Working chamber fan (for
4 Steel grid
5 Working chamber
Steel grid Steel grid
6 Nameplate (covered, see page 12)
Working chamber Working chamber
7 Door handle (see page 22)
Nameplate (covered, see page 12) Nameplate (covered, see page 12)
8 Turn control with confirmation key
Door handle (see page 22) Door handle (see page 22)
