1005mm, 1455mm, Ramp installation – Braun RA500 User Manual
Page 25

Page 23
Ramp Support Structure for RA500 w/o Fixed Sub floor
Chassis
Chassis
Chassis
Chassis
Chassis
Chassis
CL
Minimum Door Opening W
idth:
850mm opening
for 825mm Ramp
CL
MINIMUM
DOOR OPENING
WIDTH
Chassis
Chassis
Chassis
Chassis
SUPPORT TUBE
1455mm
1005mm
SUPPORT TUBE

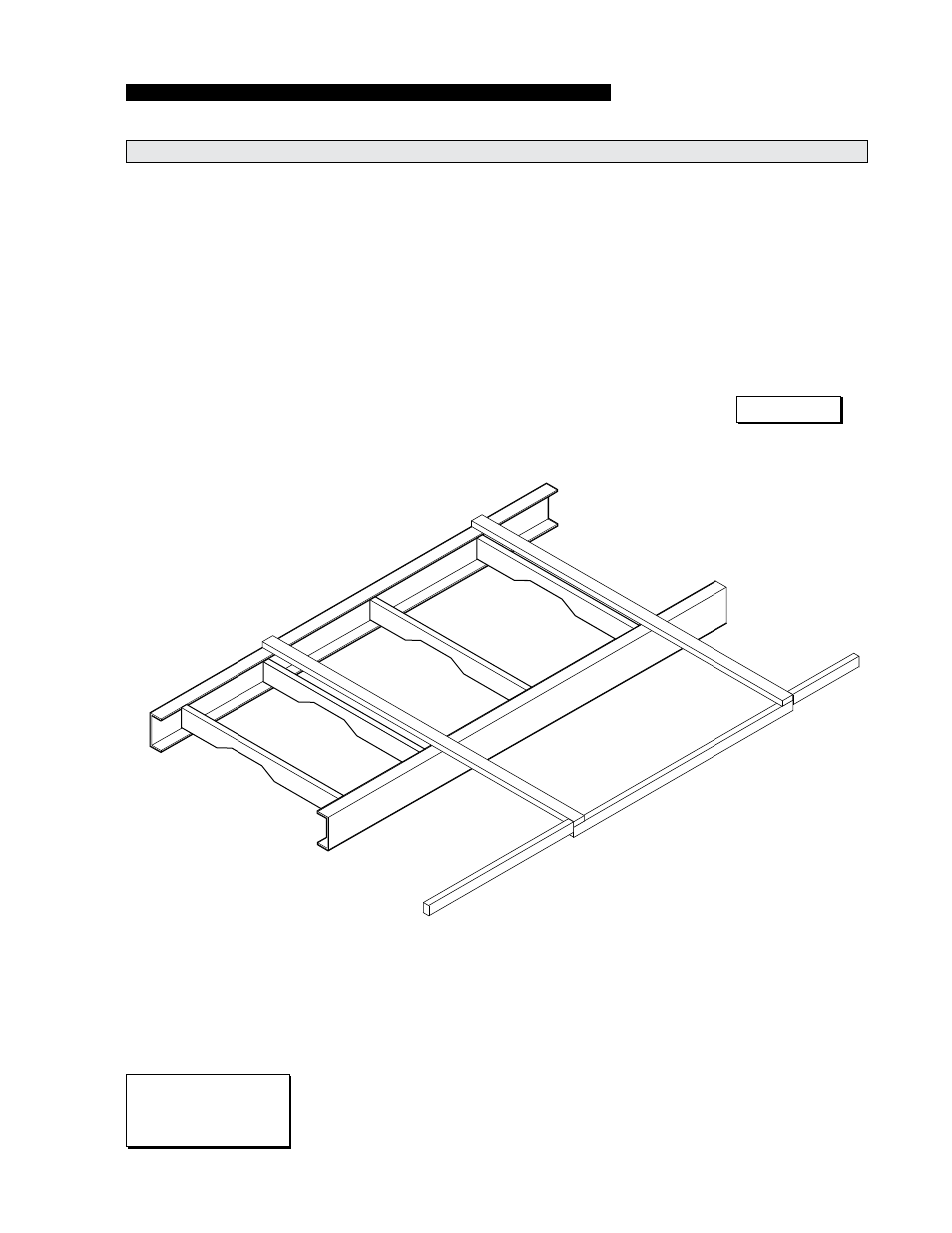

RAMP INSTALLATION
Figure K
Outboard Support Tube: Recommended Maxi-
mum Height: 20mm above ground level. Kneel-
ing Vehicles (measured with suspension lowered).
EU: Installations with support tube positioned
higher than 20mm above ground level may not
comply with EU ramp slope requirements.
Structure: Minimum
40mm x 50mm steel
tubing (or equivalent).
