Ramp Support Structure

Outboard Support Tube: Recommended Maxi-

mum Height: 20mm above ground level. Kneel-

ing Vehicles (measured with suspension lowered).

EU: Installations with support tube positioned

higher than 20mm above ground level may not

comply with EU ramp slope requirements.

Structure: Minimum

40mm x 50mm steel

tubing (or equivalent).

Chassis

Minimum Door Opening W

idth:

850mm openin

for 825mm Ramp

MINIMUM

DOOR OPENING

WIDTH

SUPPORT TUBE

1455mm

1005mm

Floor Pocket

Frame W

ork

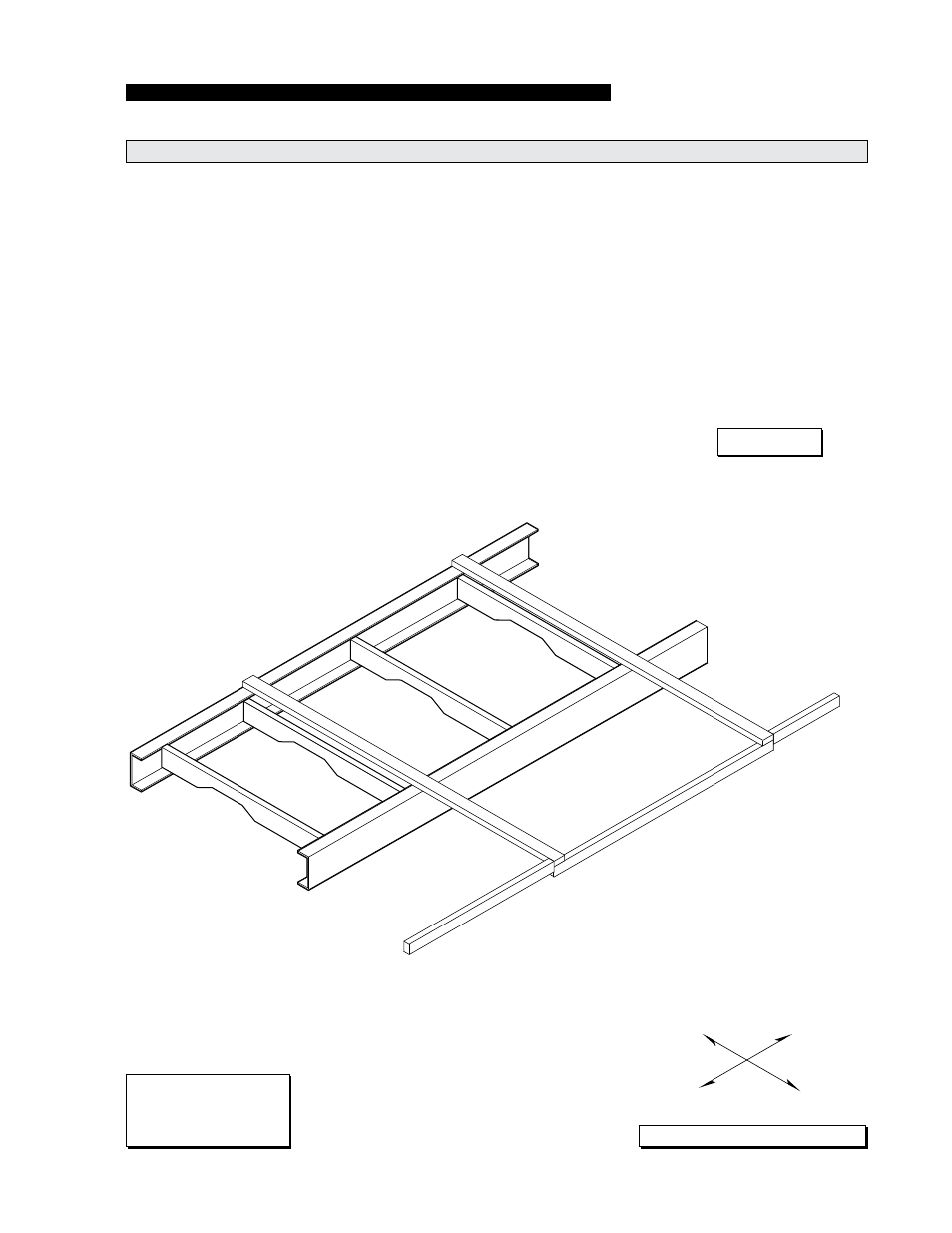

RAMP INSTALLATION

Figure F

As viewed from outside the vehicle

Left

Right

Rear

Front

Outboard

(passenger's side)

Inboard

(driver's side)

“Arrows/30°-30°”6-13-90

(of vehicle)
