4 Electrical installation
DC voltage supply
EDKMF2141 DE/EN/FR 2.0
L
34
Internal DC voltage supply -16-
) ) ) )
Note!
Controllers with an extended AIF interface (front of the 8200 vector) can be
internally supplied. The part of the drawing highlighted in grey shows the
jumper position.
l In the delivery state of the frequency inverter these are not internally
supplied.

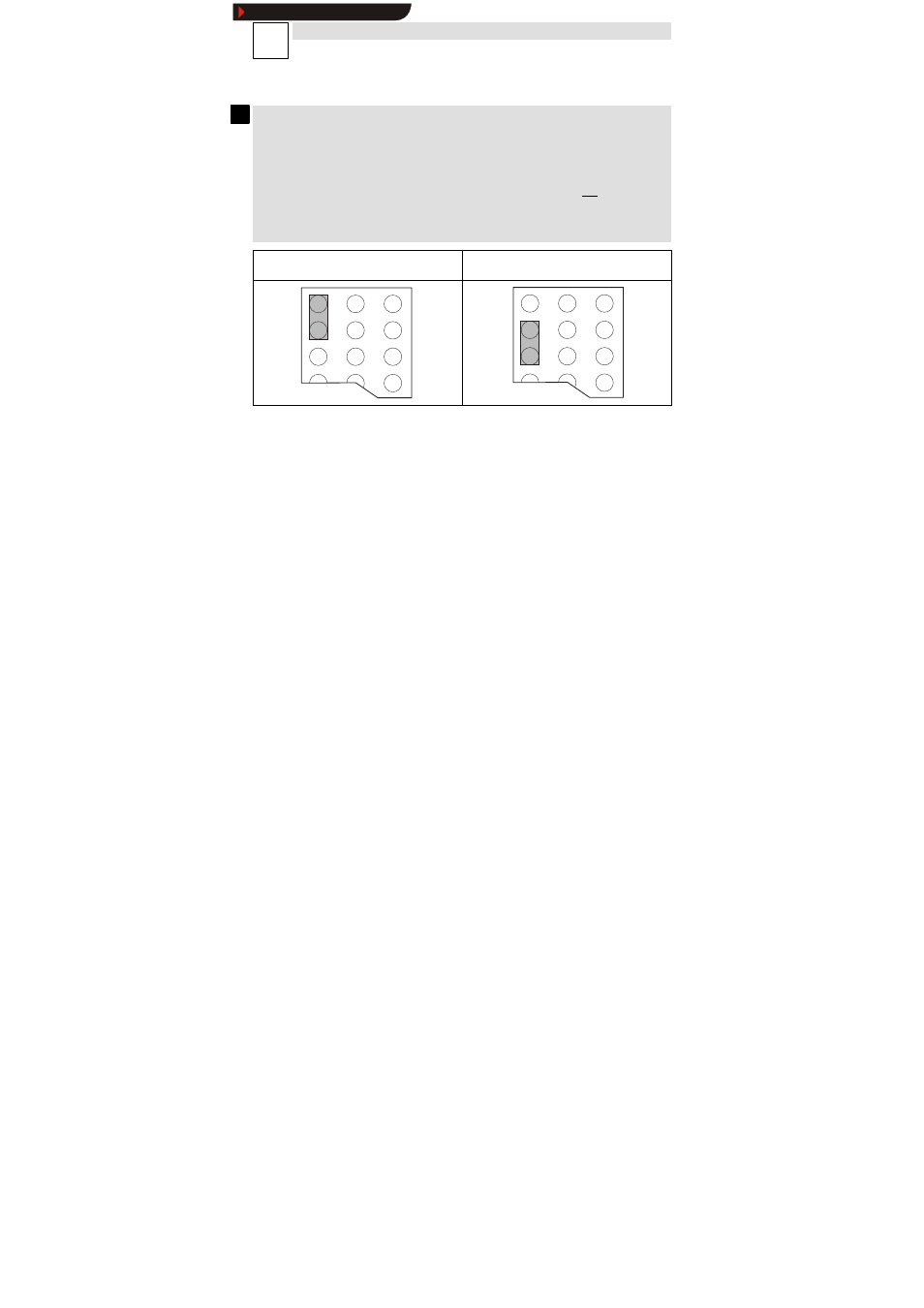

l For internal voltage supply, put the jumper in the position indicated
below.
Lenze setting
only external voltage supply possible
Internal voltage supply
