5.2 Status display

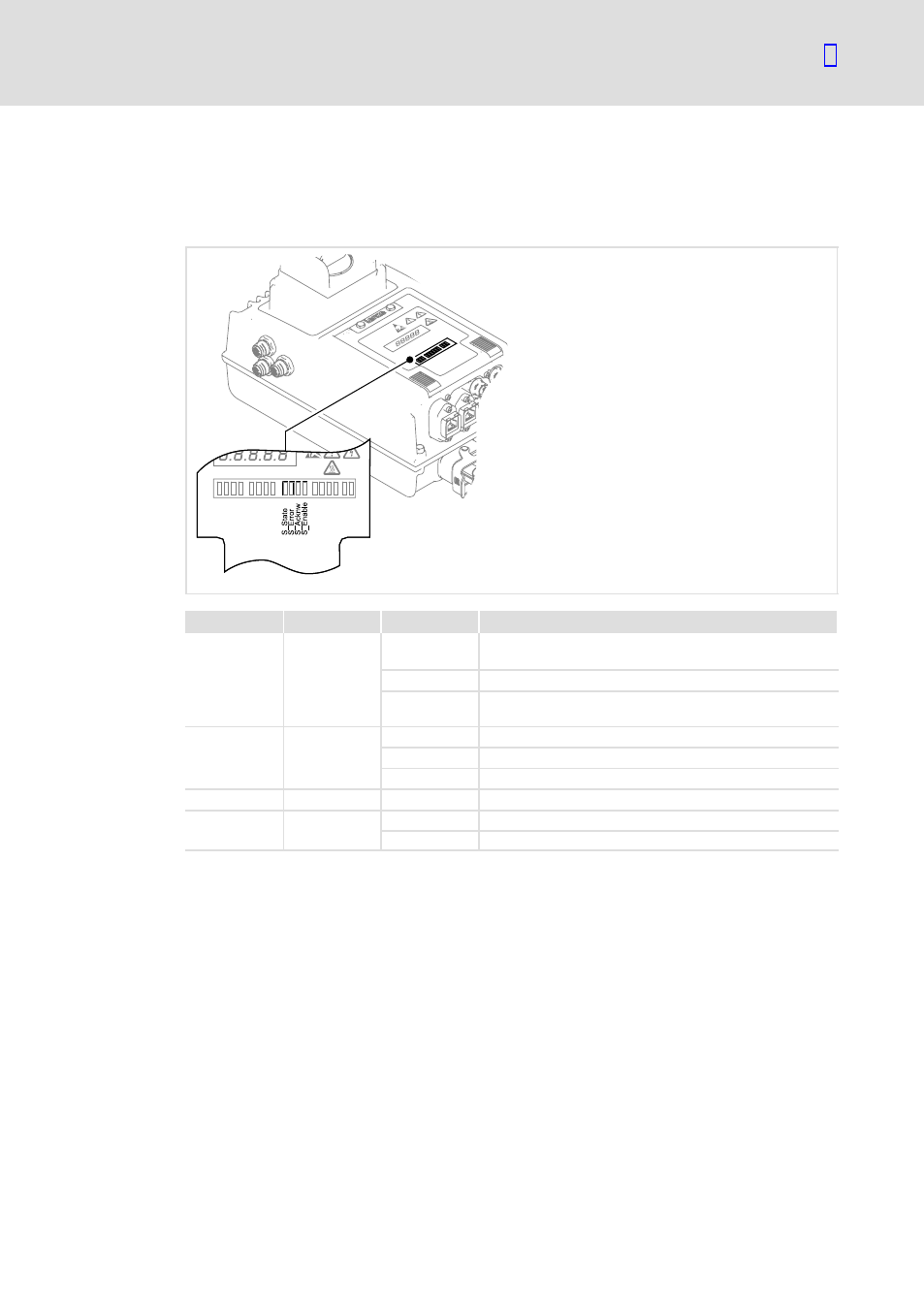

Light−emitting diodes (LED) on the front of the controller display the operating status of
the safety engineering system.
E84DPSO06 SO30
Pos. Colour State Description
S−State green
on
Communication between standard device and safety system
is running
blinking Drive−based safety is in service status
off
Communication between standard device and safety system
is not possible
S−Error red
on Fault, trouble or warning
blinking Drive−based safety is not accepted by the standard device
off Error−free operation
S−Acknw yellow on A parameter set acceptance must be acknowledged
S−Enable yellow
on Controller is enabled
blinking Safety function is active (non−safe display)
