Function library Lenze8200Drive.lib
Functions/function blocks
3.4 L_8200CtrlWord − Selection of boolean control signals
3−15
L
Lenze8200Drive.lib EN 1.0
3.4 L_8200CtrlWord − Selection of boolean control signals

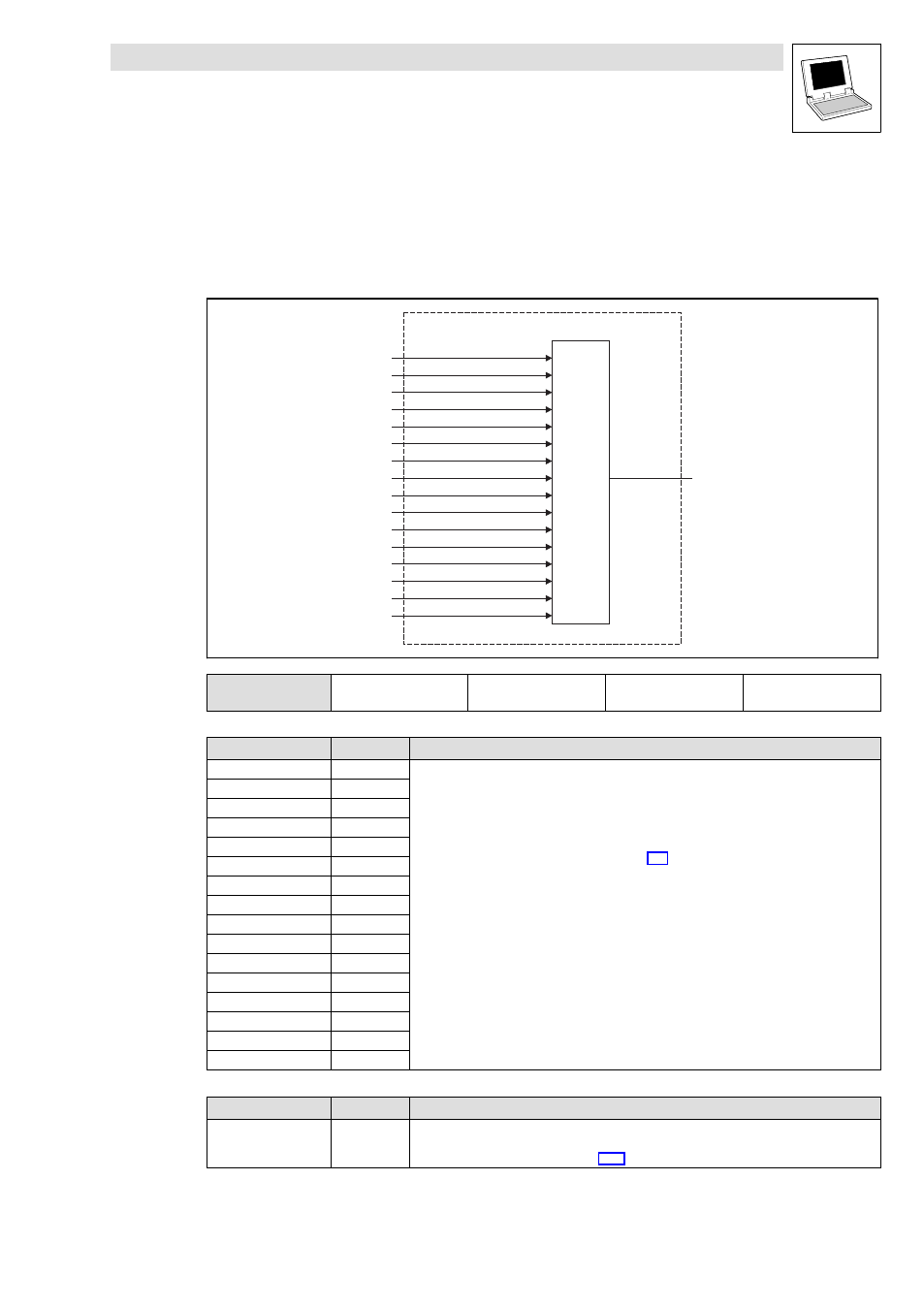

Function block
This FB can be used to select the control word to be sent to the frequency inverter which is expected
by the FB L_8200DataControl at the FB input wControlData as boolean control signals.
L_8200CtrlWord
wControlData
bNSET1_JOG13
CTRL
bNSET1_JOG23
bDCTRL1_CW_CCW
bDCTRL1_QSP
bNSET1_RFG1_STOP
bNSET1_RFG1_0
bMPOT1_UP
bMPOT1_DOWN
bRELAY_K1
bDCTRL1_CINH
bDCTRL1_TRIP_SET
bDCTRL1_TRIP_RESET
bDCTRL1_PAR24
bDCTRL1_PAR34
bMCTRL_DCB
bPCTRL1_RFG2_LOAD_I
FB call in: þ Cyclic task
(PLC_PRG)
þ Time−controlled task
(INTERVAL)
þ Event−controlled task
(EVENT)
o Interrupt task
Inputs Data type Information/possible settings
bNSET1_JOG13 Bool Detailed information about the meaning of the individual control signals can be found in the
Operating Instructions for the 8200 frequency inverter.
Note!
The composition of the control word depends on the parameterisation of the frequency inverter!
·
The names of the control signals contained in this Manual have been adapted to the commented
assignments in the FB L_8200Parameter. (
^ 3−2)
bNSET1_JOG23 Bool
bDCTRL1_CW_CCW Bool
bDCTRL1_QSP Bool
bNSET1_RFG1_STOP Bool
bNSET1_RFG1_0 Bool
bMPOT1_UP Bool
bMPOT1_DOWN Bool
bRELAY_K1 Bool
bDCTRL1_CINH Bool
bDCTRL1_TRIP_SET Bool
bDCTRL1_TRIP_RESET Bool
bDCTRL1_PAR24 Bool
bDCTRL1_PAR34 Bool
bMCTRL_DCB Bool
bPCTRL1_RFG2_LOAD_I Bool
Outputs Data type Value/meaning
wControlData Word Control word to be sent to the frequency inverter.
·
Connect this output with the input wControlData
of the FB L_8200DataControl. (
^ 3−10)
