3.3 L_8200DataControl − Send/receive process data
Function library Lenze8200Drive.lib
Functions/function blocks
3−14
L
Lenze8200Drive.lib EN 1.0
Time monitoring
The input tTimeOut is used to monitor the transfer time of the data received from the frequency
inverter.
·
With a time > t#0ms the monitoring is activated, otherwise it is deactivated.
·
The monitoring time must be adapted to the cycle and task time of the process data object
CAN2_IO.
Status messages
The status outputs nStateDataTo82 and nStateDataFrom82 indicate the current state of the send
and receive objects.
·
If an error occurs, an error number will be indicated and the corresponding message output
bFail_DataTo82 or bFail_DataFrom82 will be set to TRUE.
·
The status and message outputs can be reset by setting bReset to TRUE.
·
The last message/error number is saved in an internal variable (nLastMessageNo or
nLastFailureNo).

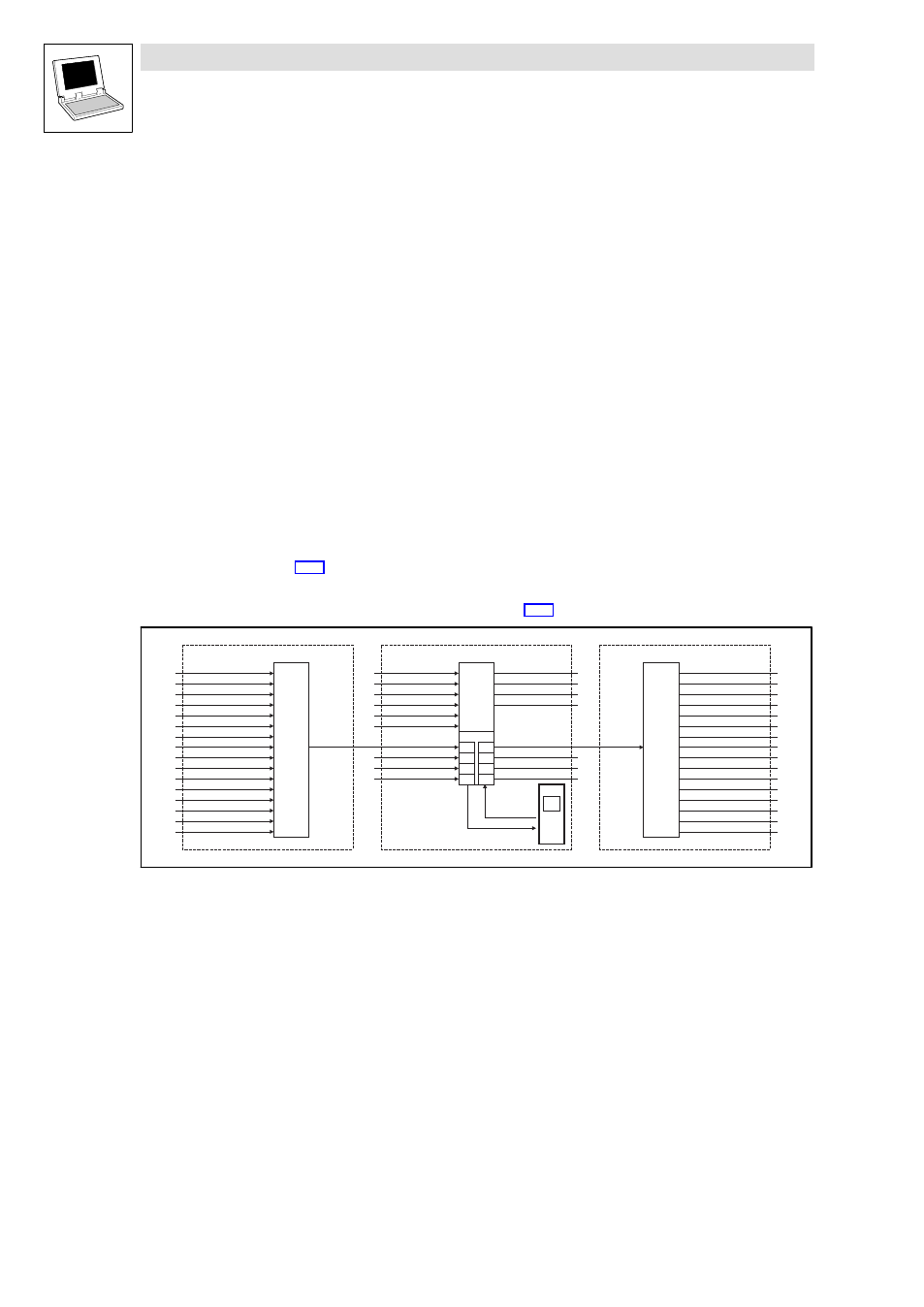

Selection of boolean control signals and output of boolean status messages
·
The FB L_8200CtrlWord is used to select the control word to be transmitted as boolean
control signals.
( ^ 3−15)
·
The FB L_8200StatusWord is used to divide the receive status word for evaluation and further
processing into individual boolean status signals.
( ^ 3−16)
L_8200DataControl
wControlData
nNSetN1_a
tCycleTime
bResetFail
tTimeOut
bEnable
bResetNode
byNodeAddr
CTRL
nStateDataTo82
nStateDataFrom82
L
8200
Node address = byNodeAddr
System bus (CAN)
wBoostVoltage
wInputData
1 + 2
data bytes:
3 + 4
5 + 6
7 + 8
1 + 2
3 + 4
5 + 6
7 + 8
bFail_DataTo82
bFailDataFrom82
wStatusData
nMCtrl_Nout_Slip
wOutputData3
wOutputData4
CAN2_OUT CAN2_IN
L_8200CtrlWord
wControlData
bNSET1_JOG13
CTRL
bNSET1_JOG23
bDCTRL1_CW_CCW
bDCTRL1_QSP
bNSET1_RFG1_STOP
bNSET1_RFG1_0
bMPOT1_UP
bMPOT1_DOWN
bRELAY_K1
bDCTRL1_CINH
bDCTRL1_TRIP_SET
bDCTRL1_TRIP_RESET
bDCTRL1_PAR24
bDCTRL1_PAR34
bMCTRL_DCB
bPCTRL1_RFG2_LOAD_I
L_8200StatusWord
bDCTRL1_CINH
CTRL
wStatusData
bDCTRL1_TRIP
bFIXED_RESERVE_9
bFIXED_RESERVE_11
bFIXED_RESERVE_12
bDCTRL1_OH_WARN
bNSET1_RFG1_NOUT
bNSET1_RFG1_I
bPCTRL1_QMIN
bDCTRL_NOUT
bMCTRL_IMAX
bDCTRL_IMP
bDCTRL1_RDY
bFIXED_RESERVE_10
bDCTRL1_OV
bDCTRL1_CCW
