2.3 Process data exchange with the frequency inverter
Unlike the parameter data, the process data must be cyclically exchanged between PLC and
frequency inverter to update input and output information.
·
The FB L_8200CtrlWord is used to select the control word to be transmitted as boolean
control signals.
( ^ 3−15)
·
The FB L_8200DataControl is used for the actual process data exchange with the
corresponding frequency inverter.
( ^ 3−10)
·
The FB L_8200StatusWord is used to divide the receive status word for evaluation and further
processing into individual boolean status signals.
( ^ 3−16)

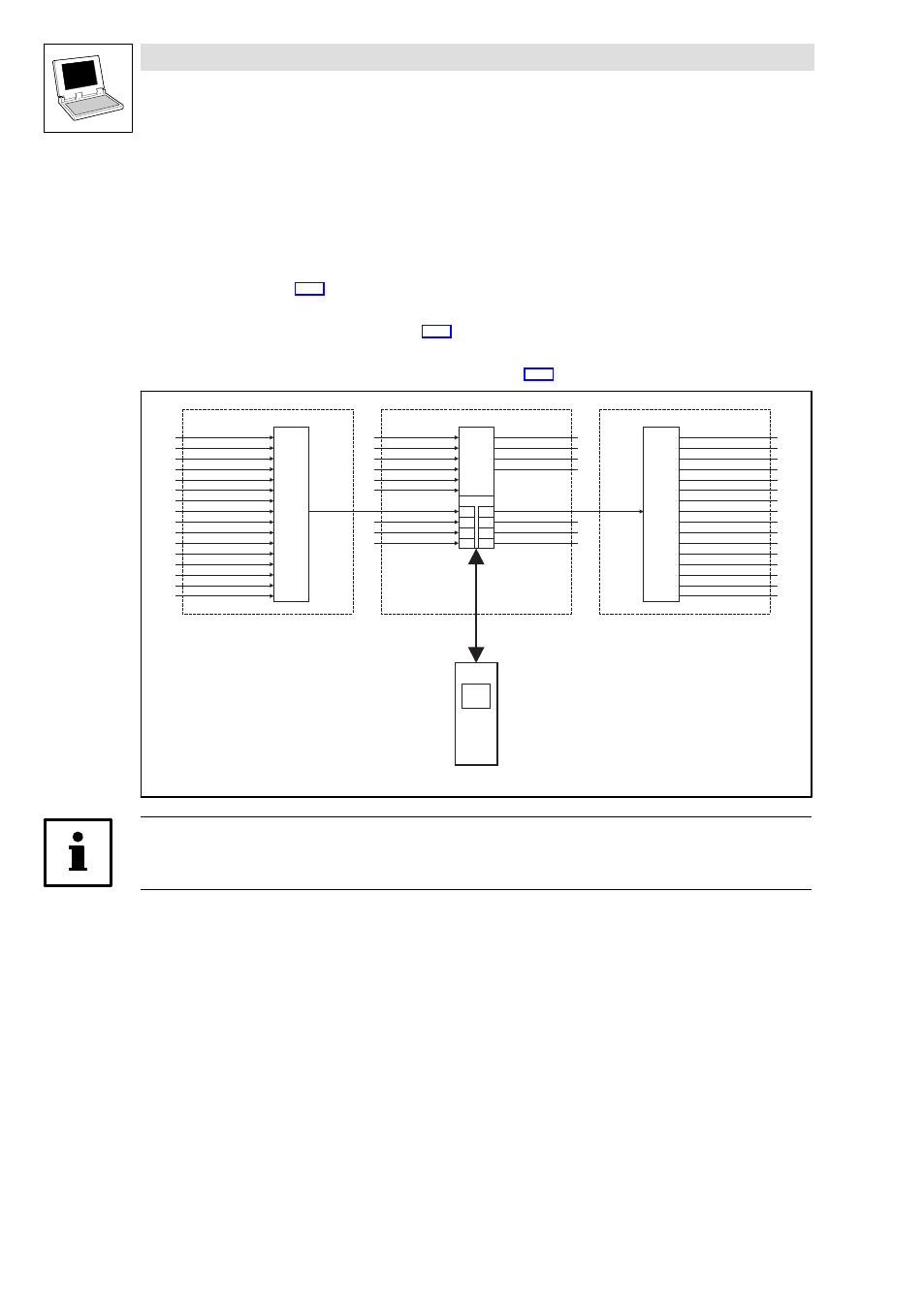

L_8200DataControl
wControlData
nNSetN1_a
tCycleTime
bResetFail
tTimeOut
bEnable
bResetNode
byNodeAddr
CTRL
nStateDataTo82
nStateDataFrom82
Node address = byNodeAddr
wBoostVoltage
wInputData
1 + 2
data bytes:
3 + 4
5 + 6
7 + 8
1 + 2
3 + 4
5 + 6
7 + 8
bFail_DataTo82
bFailDataFrom82
wStatusData
nMCtrl_Nout_Slip
wOutputData3
wOutputData4
CAN2_OUT CAN2_IN
L_8200CtrlWord
wControlData
bNSET1_JOG13
CTRL
bNSET1_JOG23
bDCTRL1_CW_CCW
bDCTRL1_QSP
bNSET1_RFG1_STOP
bNSET1_RFG1_0
bMPOT1_UP
bMPOT1_DOWN
bRELAY_K1
bDCTRL1_CINH
bDCTRL1_TRIP_SET
bDCTRL1_TRIP_RESET
bDCTRL1_PAR24
bDCTRL1_PAR34
bMCTRL_DCB
bPCTRL1_RFG2_LOAD_I
L_8200StatusWord
bDCTRL1_CINH
CTRL
wStatusData
bDCTRL1_TRIP
bFIXED_RESERVE_9
bFIXED_RESERVE_11
bFIXED_RESERVE_12
bDCTRL1_OH_WARN
bNSET1_RFG1_NOUT
bNSET1_RFG1_I
bPCTRL1_QMIN
bDCTRL_NOUT
bMCTRL_IMAX
bDCTRL_IMP
bDCTRL1_RDY
bFIXED_RESERVE_10
bDCTRL1_OV
bDCTRL1_CCW
L
8200
System bus (CAN)
Note!
The task cycle time depends on the number of objects used.
