Installation
Electrical installation
Terminal assignment
5
l
26 EDS82ZAFVCxxx EN 4.0

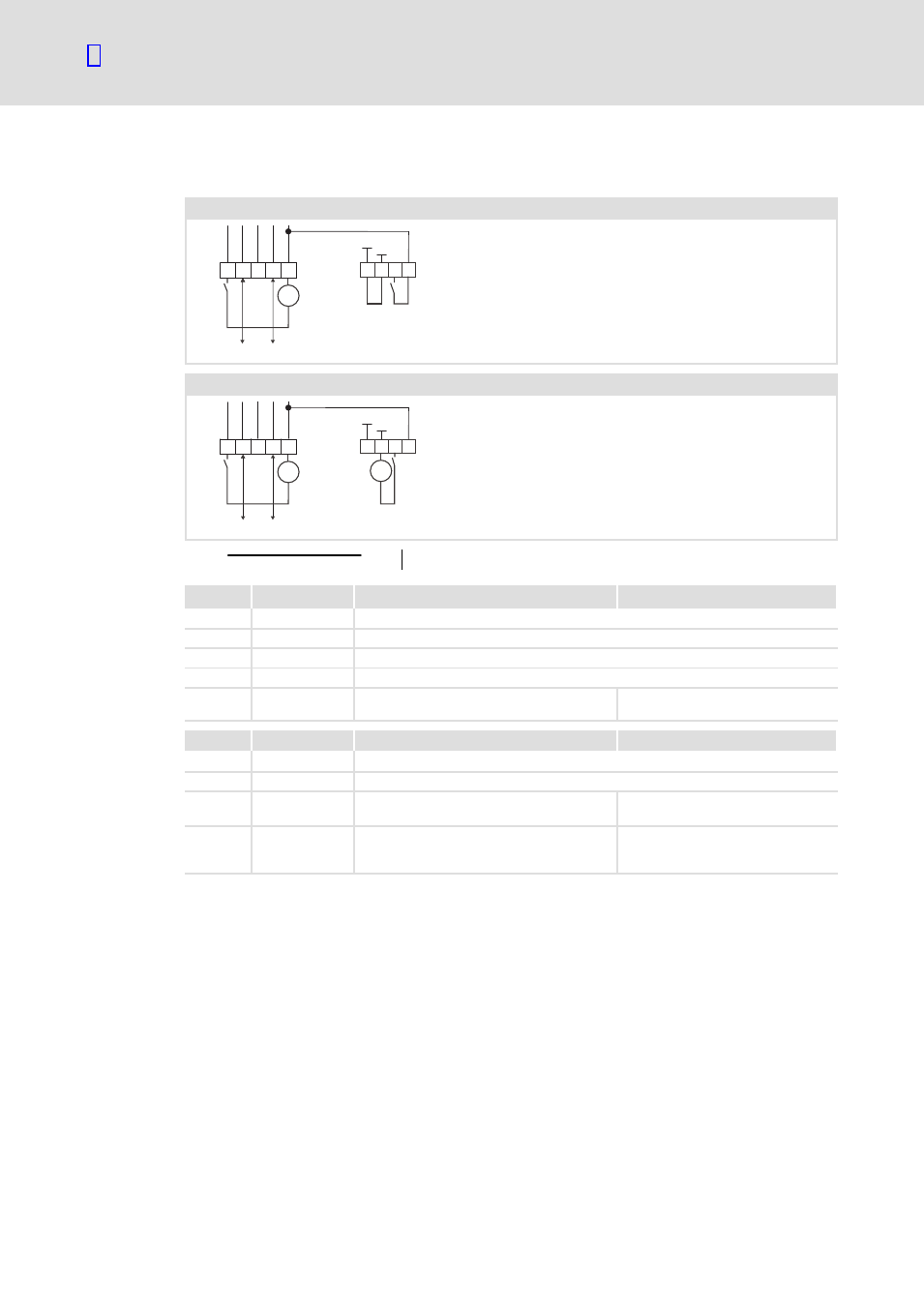

Function module E82ZAFVC010
Controller inhibit (CINH) supply via internal voltage source
GND1
V+ 20 CH CL SH 28 39 7
GND2
X3.1 X3.2 V-
_
+
E82ZAFD110
Controller inhibit (CINH) supply via external voltage source
GND1
V+ 20 CH CL SH 28 39 7
GND2
X3.1 X3.2 V-
_
+ _
+
E82ZAFD112
Min. wiring required for operation
X3.1/ Designation Function Level
V− Reference potential for external supplyvoltage
CL CAN−LOW CAN data line (LOW)
SH SHIELD Shield
CH CAN−HIGH CAN data line (HIGH)
V+ External supply voltage Please see the notes for external
supply voltage!
X3.2/ Designation Function Level
7 GND1 Reference potential for X3.2/20
39 GND2 Reference potential for controller inhibit (CINH) at X3.2/28
28 CINH Controller inhibit l Start = HIGH (+12 V ... +30 V)
l Stop = LOW (0 ... +3 V)
20 DC voltage source for internal supply of
controller inhibit (CINH) +20 V (ref.: GND1)
