Commissioning
Controls and displays
Possible settings using the front switch
6
l
31 EDS82ZAFVCxxx EN 4.0
6.3 Controls and displays
6.3.1 Possible settings using the front switch
)
Note!
Settings via GDC, operating module or configuration software
The settings of device address and baud rate via GDC, the operating module or
the configuration software only become valid when the DIP switches S7 and
S8 are in the "ON" position.
Settings via front switch
The Lenze setting of all switches is OFF.
The device address and baud rate set via DIP switch will only be active after a
renewed mains connection.
The switch S9 is ineffective.
The following settings can be easily carried out via the front DIP switch of the function
module:
ƒ Software compatibility of E82ZAFVC / E82ZAFD function module with S10
ƒ Device address with S1 − S6
ƒ Baud rate with S7 / S8
Adjustment of software compatibility
)
Note!
Set the baud rate with S8/S9 if the controller is compatible with the E82ZAFD
function module (S10 = ON).
ON
1 6 2 7 4 3 8 5 9 10
ON
OFF
E82ZAFD005

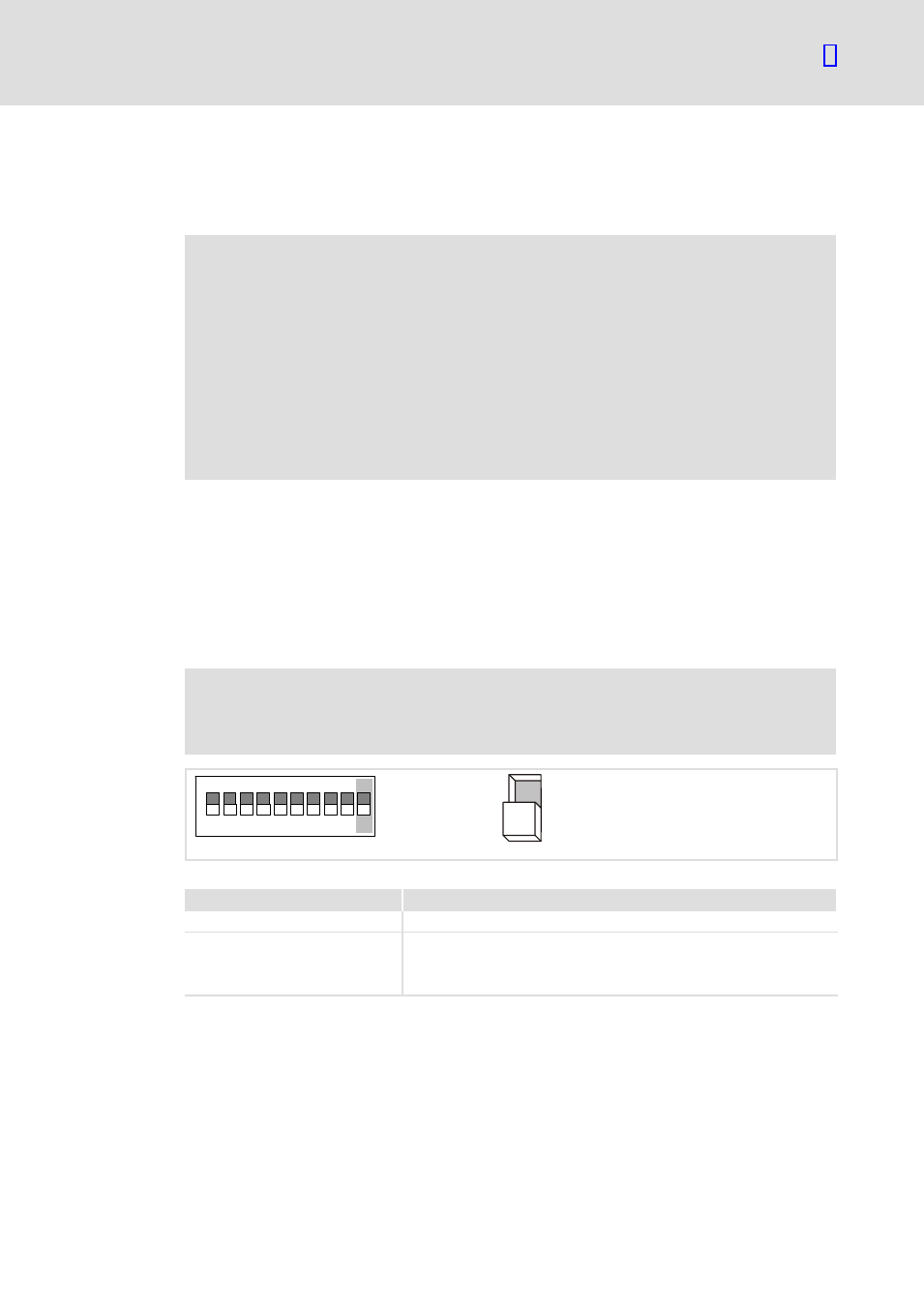

Fig. 6−1 Software compatibility setting
Compatibility S10
E82ZAFVC0xx OFF
E82ZAFD
For the description of the function
module see the E82ZAFD Mounting
Instructions ON
