Installation
Electrical installation
Wiring with a host (master)
5
l
21 EDS82ZAFVCxxx EN 4.0
5.2.2 Wiring with a host (master)
The following figure shows the cable routing for the function module:
DeviceNet
Adress Bd D
1 2 3 4 5 6 7 8 9 10
V- CL SH CH V+ V- CL SH CH V+ 7 39 28 20
V Adress Bd D
1 2 3 4 5 6 7 8 9 10
V- CL SH CH V+ V- CL SH CH V+ 7 39 28 20
V
DeviceNet
7 39 28 20
V- CL SH CH V+
7 39 28 20
V- CL SH CH V+
E82ZAFD019 E82ZAFD102
For integrating the function modules a PC with installed configuration software is used.
Specification of the transmission cable
The nodes on the bus system have to be wired with a fieldbus cable (DeviceNet thick or thin
cable ) complying with the DeviceNet specification (DeviceNet Adaption of CIP, Edition 1.1,
Volume Three).
Manufacturers of DeviceNet thick and thin cables for example are Belden Inc., Lapp Group,
C&M Corp., and Madison Cable Corp.
Colour code for the DeviceNet cable
E82ZAFD001D

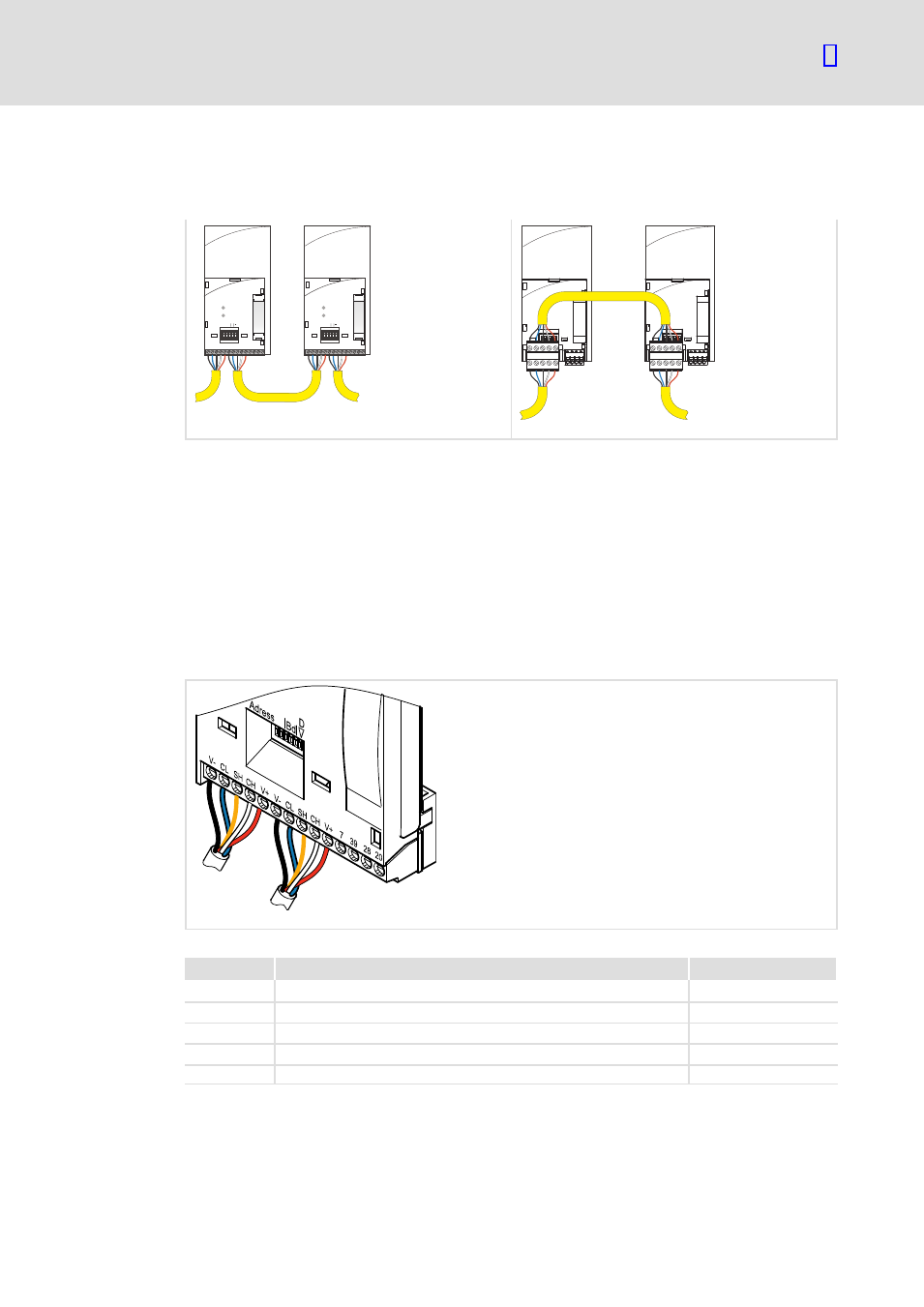

Fig. 5−1 DeviceNet wiring with the E82ZAFVC001 function module
Connection Name Colour
V− Reference potential for external voltage supply Black
CL CAN−LOW Blue
SH SHIELD (shining)
CH CAN−HIGH White
V+ External supply voltage Red
