5.2.6 Synchronisation of the standard device
The synchronisation of the standard device via the EtherCAT fieldbus ˘ if it is supported ˘
can be carried out via the 3−pin plug connector with screw connection (sync).
)
Note!
ECS servo system
ƒ For the ECS axis modules, a synchronisation with operating system software
version
³ 8.3 is possible.
ƒ For the ECS power supply module a synchronisation is not supported.
Wire ...
ƒ terminal "0" to the corresponding sync input of the standard device (see
documentation of the standard device).
ƒ the sync supply to the 24V supply of the communication module or the standard
device.

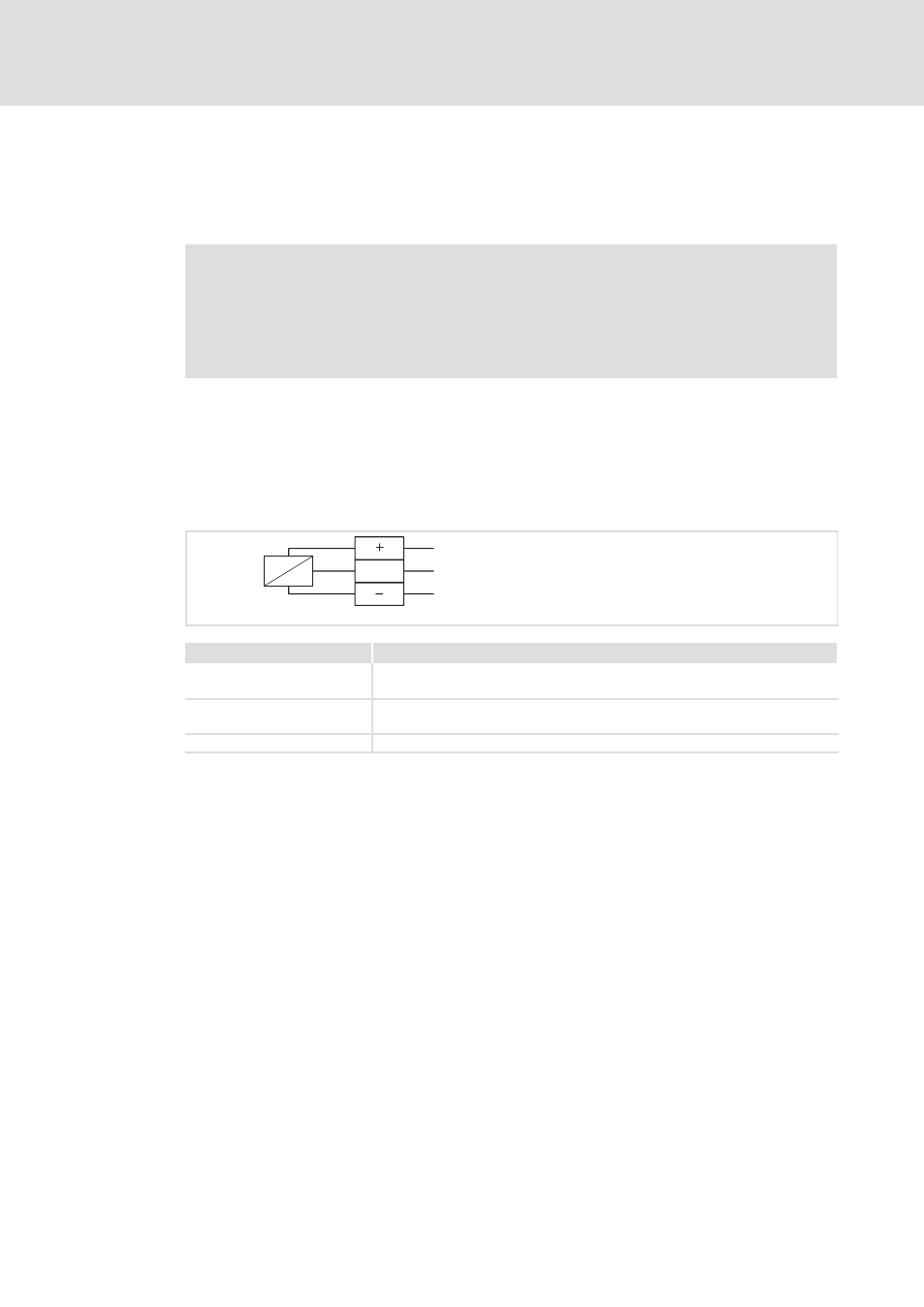

Opto 0
EtherCAT-
Sync
W
2192ECAT002
Terminal Description
+ External sync supply (SELV/PELV)
U = 24 V DC (20.4 V − 0 % ... 28.8 V + 0 %)
0 Sync output
(t = 150
ms, I
max
= 10 mA at 24 V)
− Reference potential for external sync supply
On
^ 61 you’ll find an overview of the Lenze standard devices which support a
synchronisation.
