Maintenance
Repair
Fuse change
7
l
36 BA_CPCx8xx EN 3.0
CA N2
CAN2
CAN1
MC-
POWER
FAN2
FAN3
CF-CARD
RESET
USB
-µCON
BL
IG HT
ACCU
CR2450
1 2
19 20
F1 T4A
0
ELx7xx−018

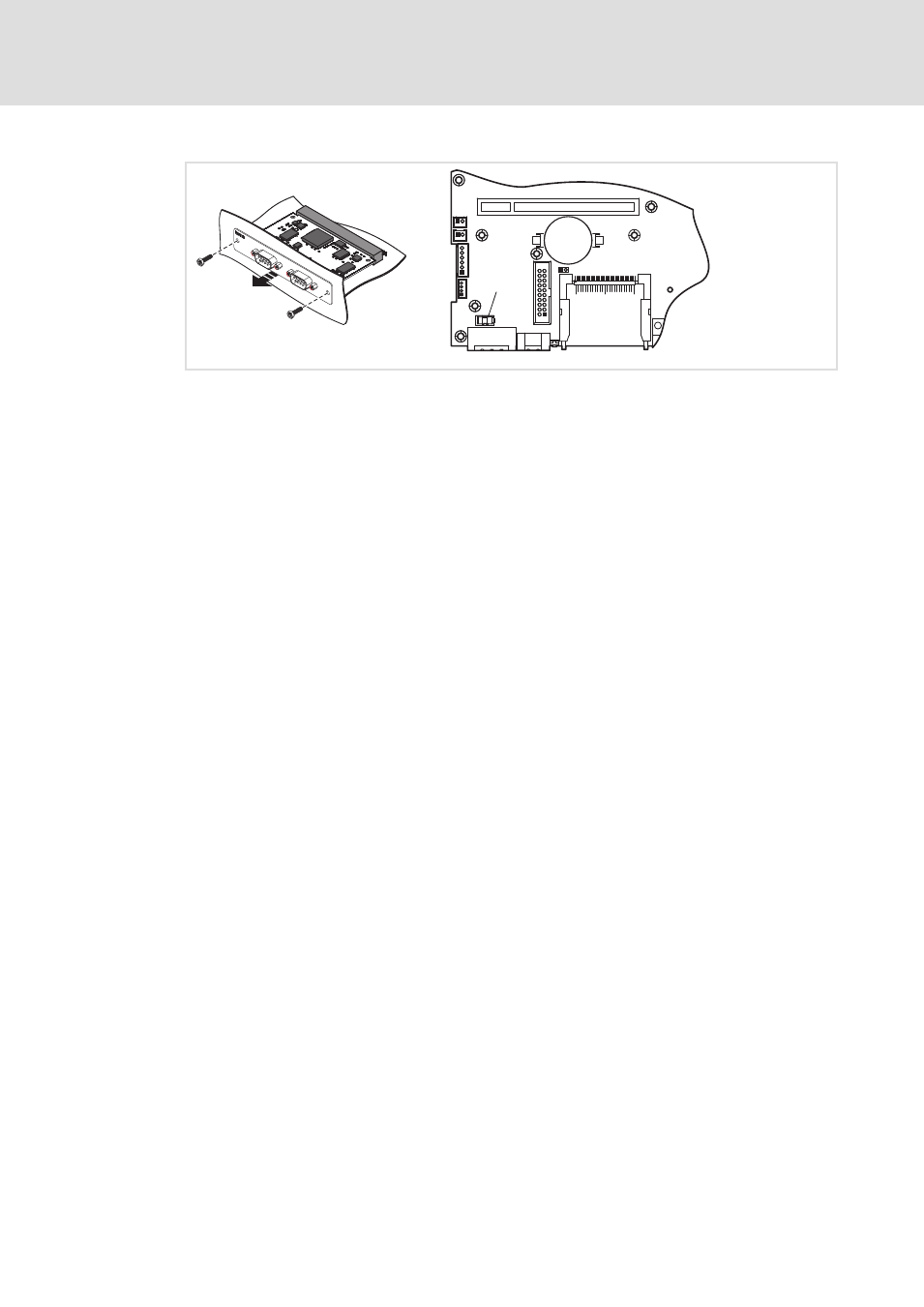

How to proceed:
1. Remove the MC Card, if inserted.
2. Remove the old fuse
0 from the support.
3. Insert a new approved fuse 0 into the support.
