Electrical installation
Connecting the supply and peripheral devices
UPS−PACK connection (X102)
6
l
30 BA_CPCx8xx EN 3.0

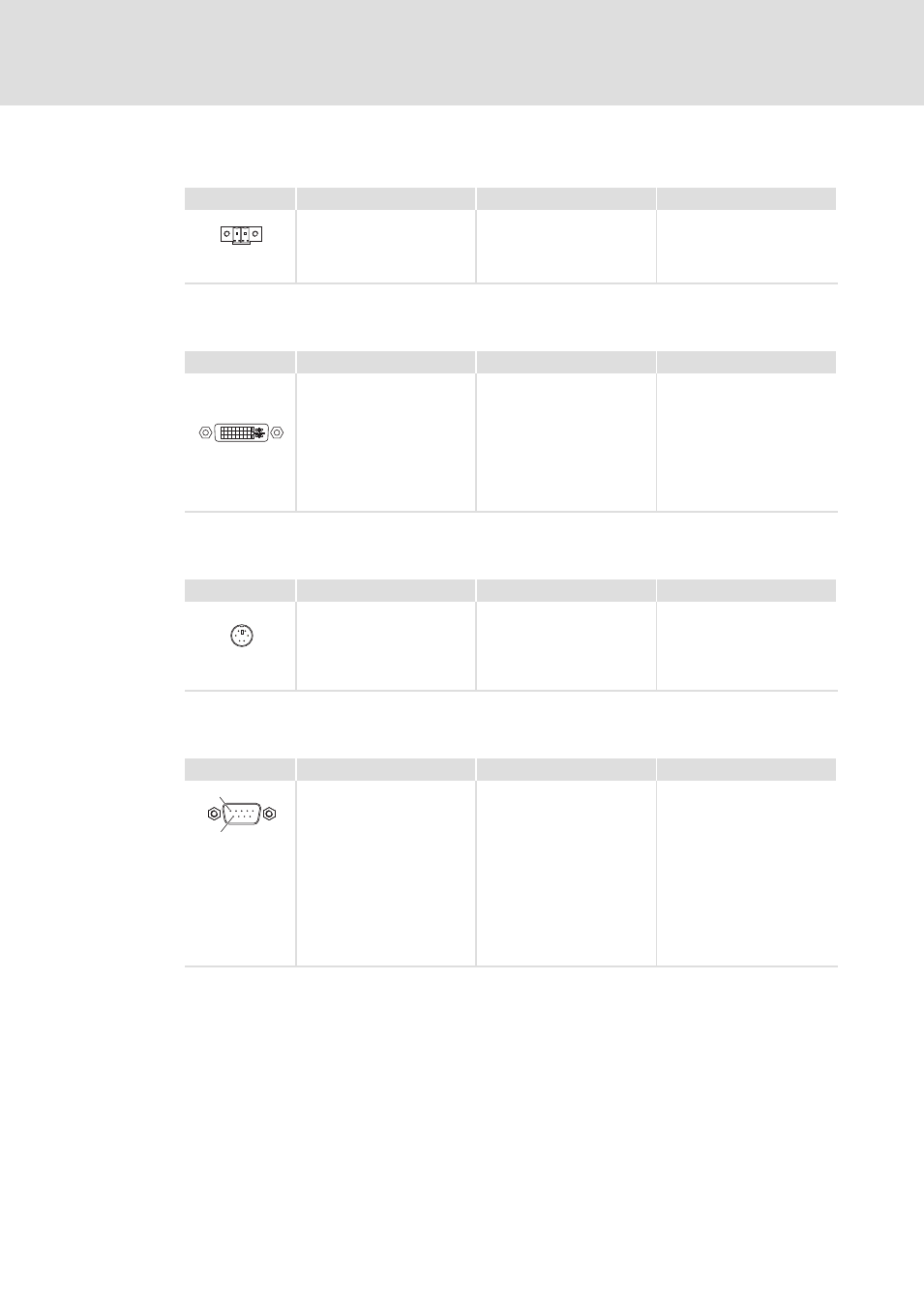

6.3.3 UPS−PACK connection (X102)
Description Connection type Cable type
Terminal for Battery pack /
Capacitor pack
2−pin socket
In the scope of supply of the
pack; length 2.5 m; extension
available
IPC001
6.3.4 Monitor interface (X109)
Description Connection type Cable type
Monitor connection with DVI
interface or with VGA
interface and adapter
DVI−I socket
DVI−I single link (18+5)
DVI−I double link (24+5)
DVI−D single link (18+1)
DVI−D double link (24+1)
DVI−A no link (12+5)
VGA cable with DVI−I
plug−to−VGA socket adapter
IPC001
6.3.5 PS/2 interface (X108)
Description Connection type Cable type
PS/2 connection 6−pin, mini DIN
PS/2 mouse
(a keyboard and a mouse can
be connected via a PS/2 Y
cable)
IPC001
6.3.6 Serial interface (X103)
Description Connection type Cable type
6
1 RS232 connection
Pin 1: DCD
Pin 2: RxD
Pin 3: TxD
Pin 4: DTR
Pin 5: GND
Pin 6: DSR
Pin 7: RTS
Pin 8: CTS
Pin 9: RI
9−pin Sub−D plug
Control cable, shielded, with
9−pin Sub−D socket
IPC001
