3.6 Options
3.6.1 ACU UPS control unit
Description
The optional ACU UPS control unit in connection with a battery or capacitor pack adds a
UPS functionality to the Industrial PC of the EL 1800−9800, CS 5800−9800, CPC 2800, and
3241 C series.
The ACU UPS control unit is either pre−equipped by the factory or can be refitted by the
Lenze Service staff.
Features of the ACU UPS control unit
with battery pack (ACCU PACK) with capacitor pack (CAPS PACK)
l Bridges a short−term mains failure or mains
fluctuations and shuts down the PC.
l Software−based configuration
l ^ Documentation for the battery pack
l Data backup in the event of mains failure.
l Not suitable for Windows XP and Windows
Embedded Standard 2009.
l Software−based configuration
l ^ Documentation for the capacitor pack
POWER
EPC50
FAN2
FAN3
RESET
USB-µCON
BLIGHT
ACCU
CR2450
1 2
19 20
F1 T4A
ACU
0
USV
S
ACCU-Pack
Before
opening,
read
the
instruction
manual.
1
2
4
3

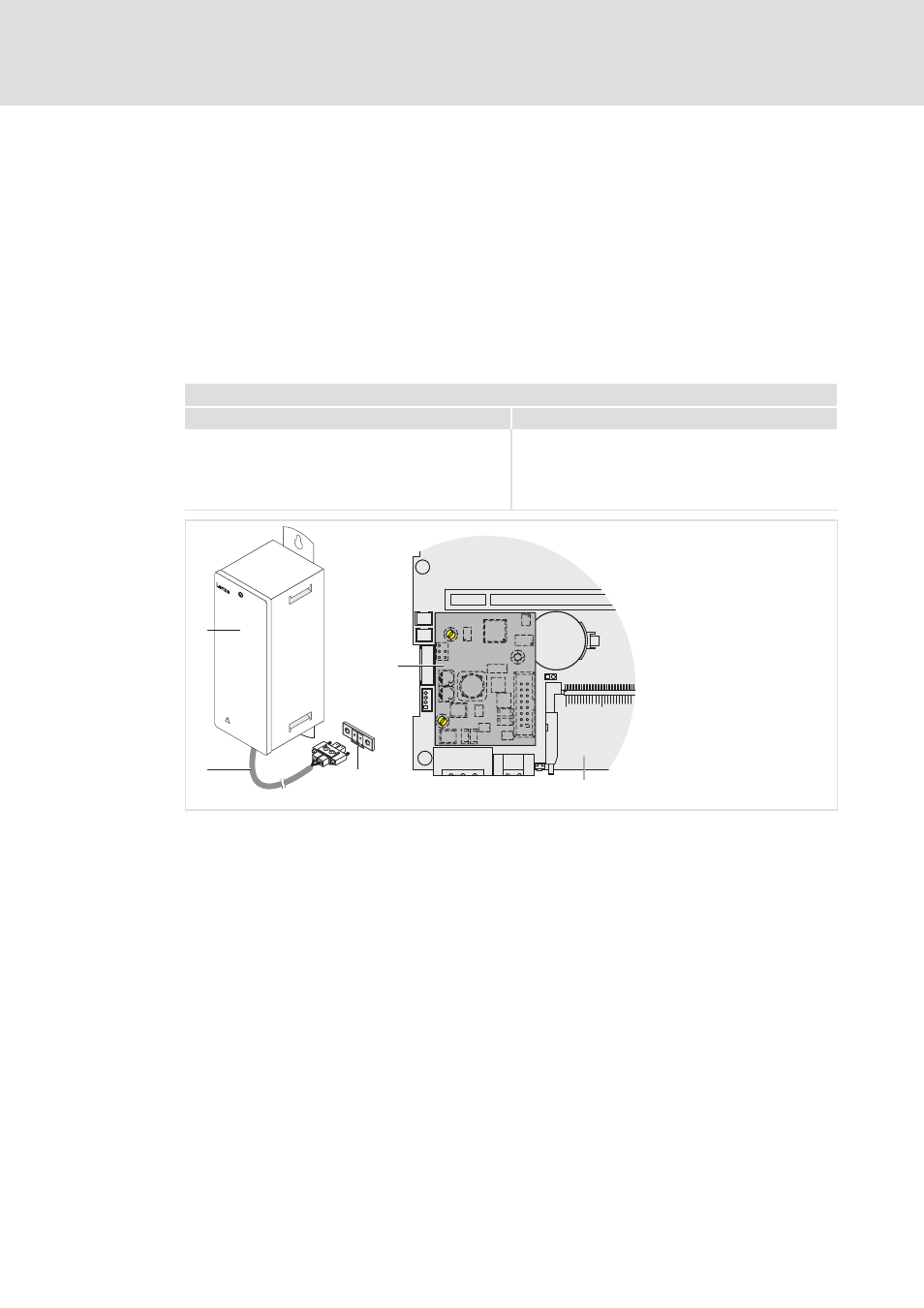

CS57x0−042
0 2700 battery pack or 2701 capacitor pack (accessories)
1 Connection cable (included in delivery of battery pack/capacitor pack)
2 Port on industrial PC
3 ACU UPS control unit
4 Baseboard
