Product description
Controls and displays
3
l
19 BA_CPCx8xx EN 3.0

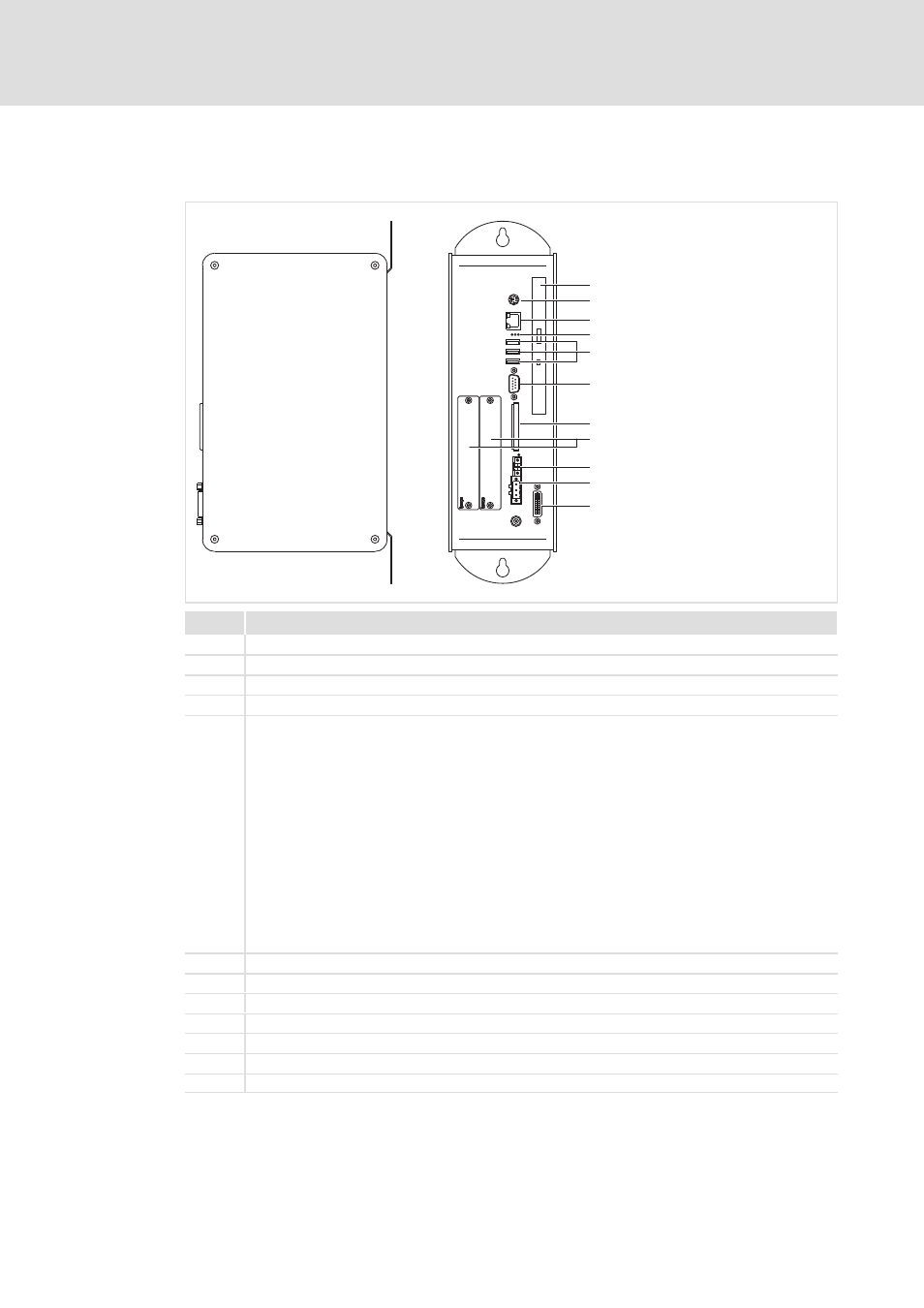

3.5 Controls and displays
0
2
1
4
5
6
7
9
:
;
8
3
0
CPC2700−001
Pos. Description
0 Control cabinet PC
1 DVD drive (optional)
2 PS/2
3 LAN (Ethernet)
4 Status LEDs
Error (red):
l Is lit if a power supply failure has occurred;
HD (yellow):
l Indicates access to a storage medium.
Power (green):
l Is lit when the supply voltage is present.
l Flashes (
−−−
−
−−−
− ) in the case of a hardware error.
l Is blinking ( −−
−
−−
−
) when the ACU UPS (optional) is being charged.
l Is blinking ( −−
−−
−−
−−
) when there is a supply voltage failure and the device is being supplied by the ACU
UPS.
l Is blinking ( −
−
−
−
) when the supply voltage of the ACU UPS is too low (e.g. rechargeable battery is
empty or missing).
l Blinks 4 x per second if the ACCU−PACK causes a short circuit or if the CAPS−PACK is completely
discharged.
5 USB
6 RS 232
7 CF Card
8 MC Card
9 ACU UPS
: 24 V DC
; DVI
