Maintenance
Repair
Fuse change
7
l
35 BA_CPCx8xx EN 3.0
POWER
FAN2
FAN3
CF-CARD
RESET
USB
-µCON
BL
IG HT
ACCU
CR2450
1 2
19 20
F1 T4A
CAN2
CA N2
CAN1
MC- 0
+
ELx7xx−017

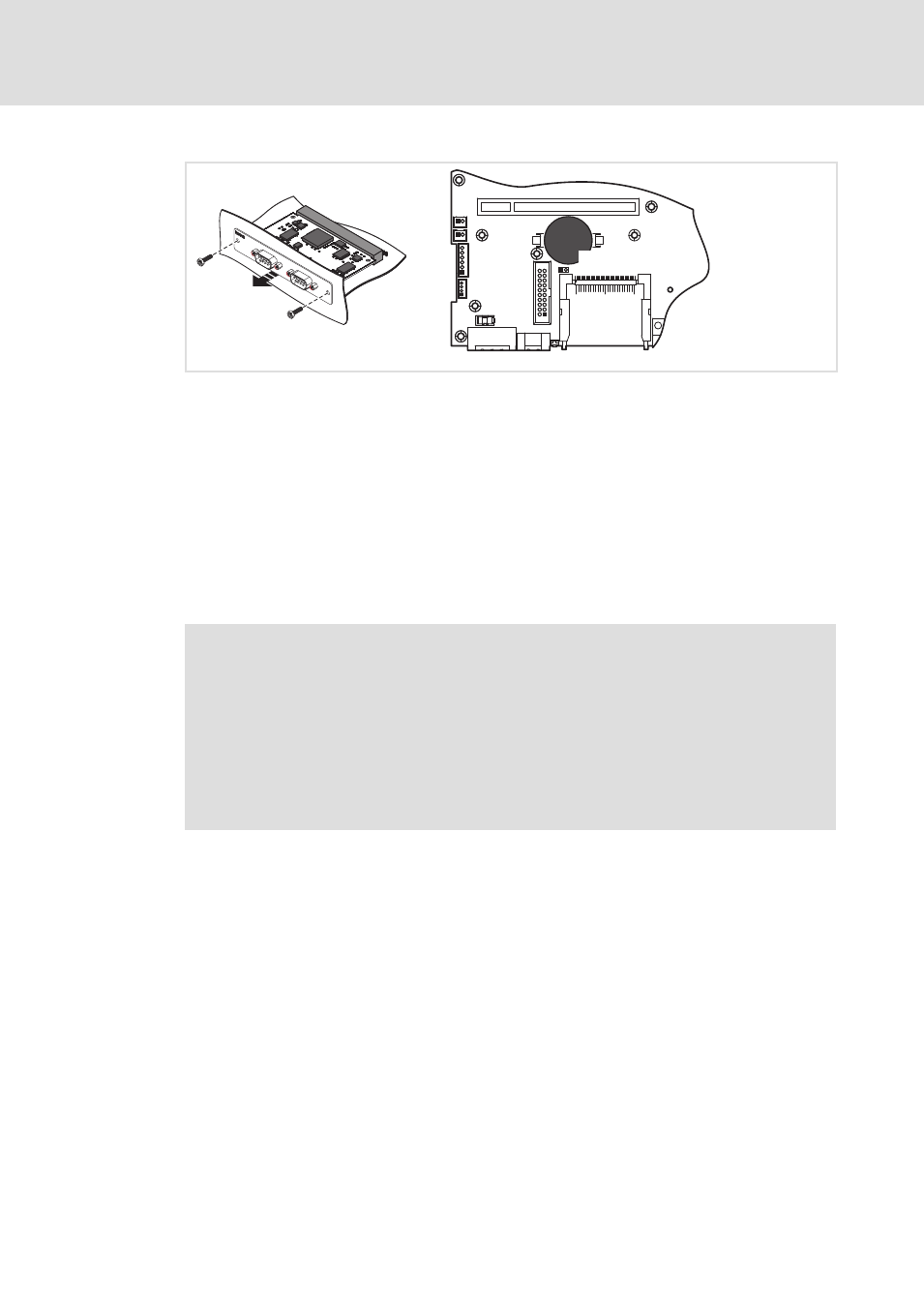

How to proceed:
1. Remove the MC Card, if inserted.
2. Remove the old battery
0 from the support.
3. Insert a new approved battery
0 into the support so that the positive pole is at the
top.
According to European legislation you are obliged to dispose of batteries separately, using
the take−back systems specified.
7.3.4 Fuse change
(
Stop!
Damage of the device by non−permissible fuse possible
The baseboard in the device is protected by a fuse which will be damaged if
the supply voltage applied is too high.
Possible consequences:
ƒ The device can be damaged if a non−approved fuse is installed.
Protective measures:
ƒ The fuse may only be replaced by an approved type.
Approved types:
ƒ Littelfuse 0454 004
