Connecting the supply and peripheral devices, Terminal diagram supply, 24 v connection (x101) – Lenze CPC 2800 Operating Instructions User Manual

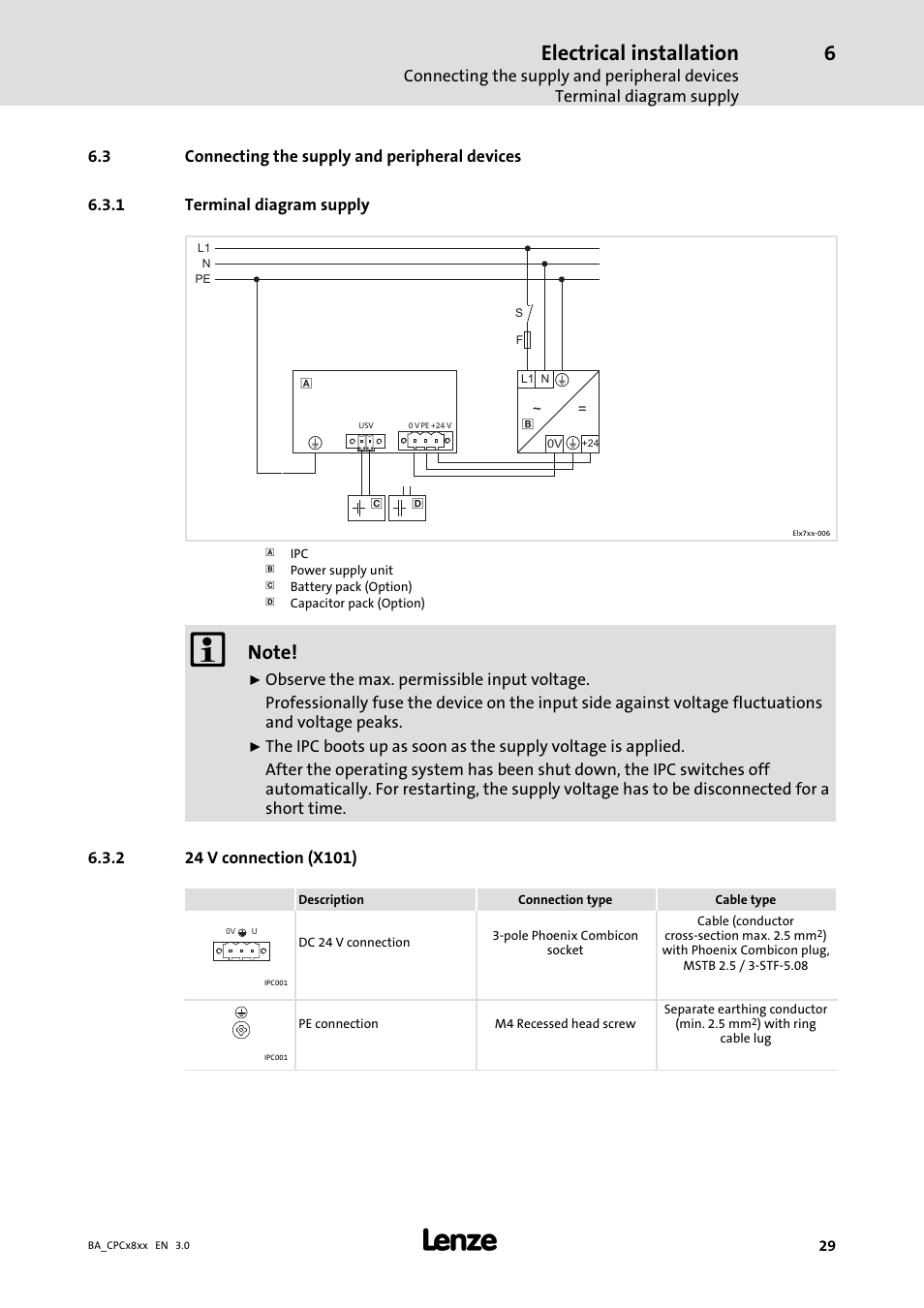

Page 29: Electrical installation
