Electrical installation
Connecting the supply and peripheral devices
USB interface (X104, X105, X106)
6
l
45 BA_CSx8xx EN 3.0

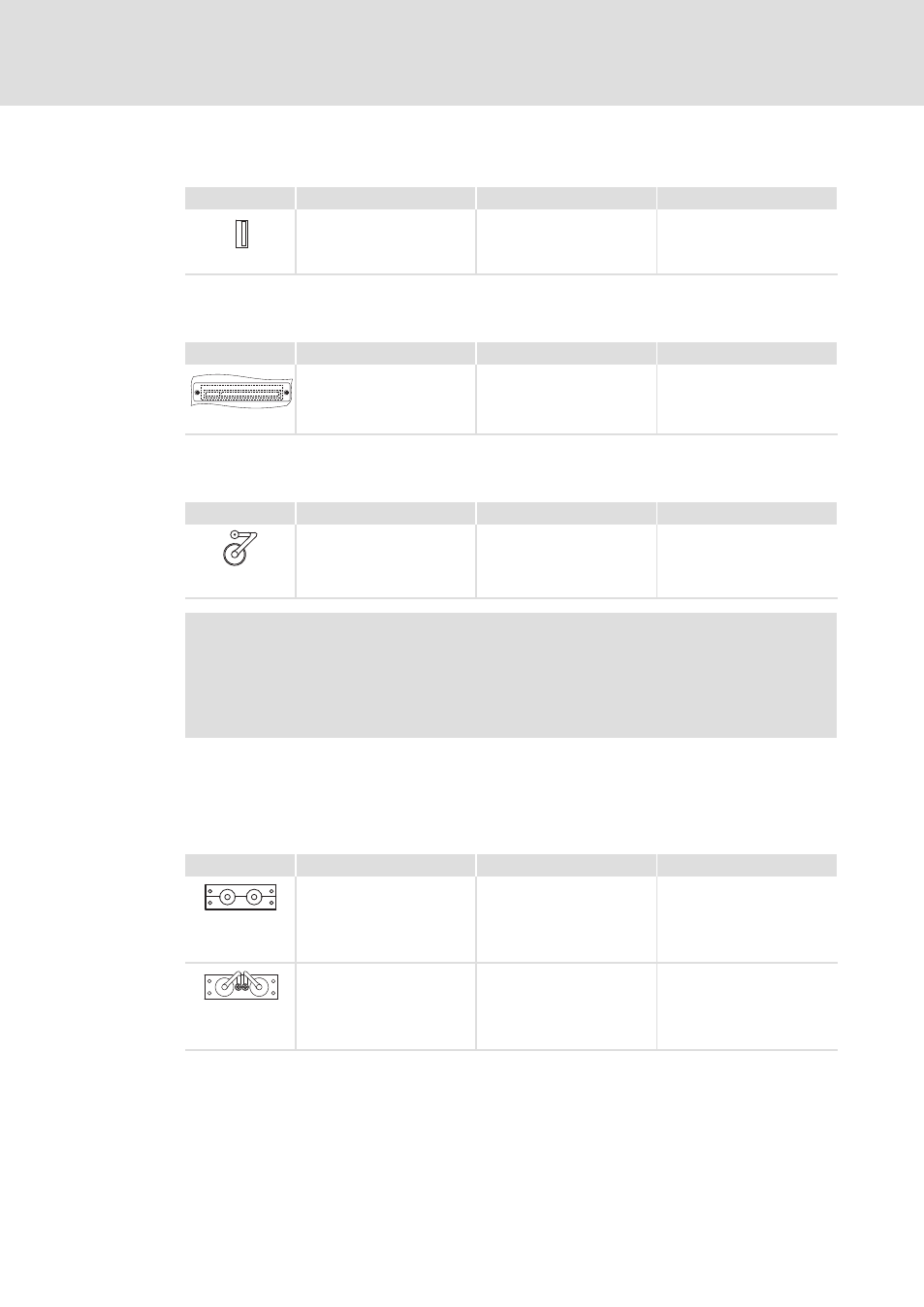

6.3.8 USB interface (X104, X105, X106)
Description Connection type Cable type
USB 2.0 host connection
Max. load: 5 V/500 mA
USB−A socket USB cable with USB−A plug
IPC001
6.3.9 Communication interface (MC card)
Description Connection type Cable type
Interface for MC card Socket connector −
EL100−013
6.3.10 USB interface on the front face (option)
Description Connection type Cable type
USB 2.0 host connection with
IP 65 cover
Max. load: 5 V/500 mA
USB−A socket USB cable with USB−A plug
EL100−013
)
Note!
If you use USB interfaces routed to the outside, the data integrity cannot be
guaranteed. On the "PC based Automation" DVD you’ll find the "FM Tool"
software which can be used to deactivate the front USB interface if it is not
needed.
6.3.11 Mounting frame connecting plate (option)
You can replace the blanking plate in the mounting frame by a connecting plate which
serves to connect further interfaces. The following interfaces are available:
Description Connection type Cable type
Universalkupplung, 2−fach
(KDL−2, zur
Kabeldurchführung der
Tastatur CSB MF2)
− −
EL100−015
USB−Host−Anschluss mit
Abdeckkappe IP 65, 1−fach−
oder 2−fach
Max. load: 5 V/500 mA
USB−A−Buchse USB−Kabel mit USB−A−Stecker
EL100−017
