Electrical installation
Connecting the supply and peripheral devices
Preliminary works
6
l
42 BA_CSx8xx EN 3.0
6.3 Connecting the supply and peripheral devices
6.3.1 Preliminary works
For connecting the supply and the peripheral devices, the PC has to be hooked into the
mounting frame and folded down.
(
Stop!
PC can fall down
If the PC is not screwed together with the mounting frame, it may fall down.
Possible consequences:
ƒ The PC and/or the screen are damaged.
ƒ Injuries caused by the falling device.
Protective measures:
ƒ Secure PC against falling down.

ƒ „
‚
0
2
1
+
3
4
}
max. 12 kg
1 0 0
1
}
}
}
CS57x0−012

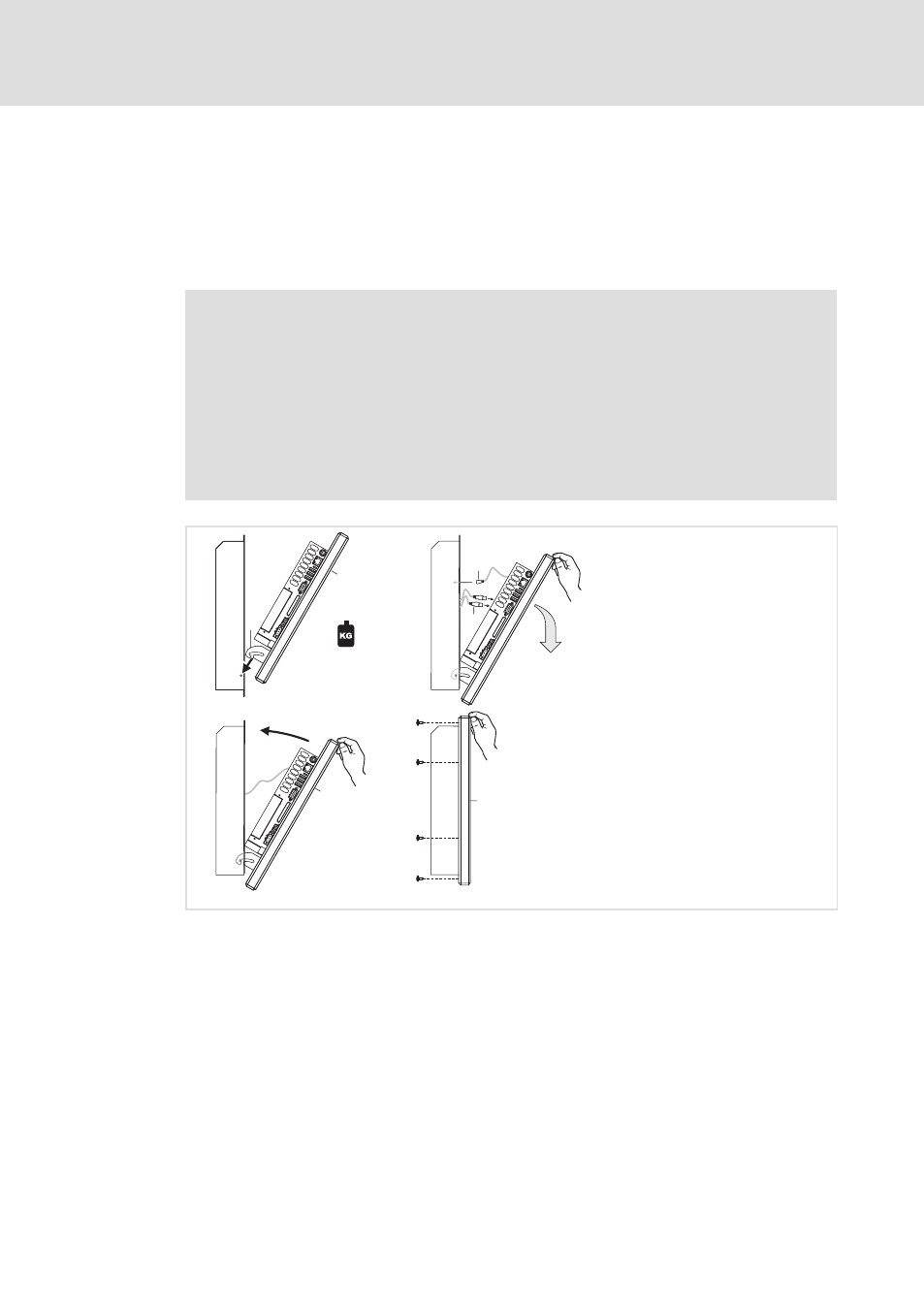

How to proceed:
1. Place PC
1 into the mounting frame 0 with the hook−up attachment 2 and, during
the following worksteps, secure it against falling down.
2. Plug in connecting cable
1.
– Plug in PE connecting cable
3 at the mounting frame.
– Plug in other connecting cables
4 (supply, PS/2, USB, LAN, etc.).
3. Fold in PC.
4. Screw PC to the mounting frame.
Always fit all screws.
