4.4 Setting up the data connections

Printer (optional)

•

Lift off the instrument console flap (12).

•

Connect the printer to the printer port (7) via
a standard Centronics cable (refer

Fig. 6

).

Other connections

•

For additional data transfer and storage the
instrument console is equipped with a stan-
dard 1.44 MB floppy drive (10) for 3.5 “ dis-
kettes and with an RS 232 serial port (11) .

Only instruments which satisfy the re-
quirements for SELV circuits may be
connected to interfaces (7), (8), (9)
and (11).

12

9

8

10

11

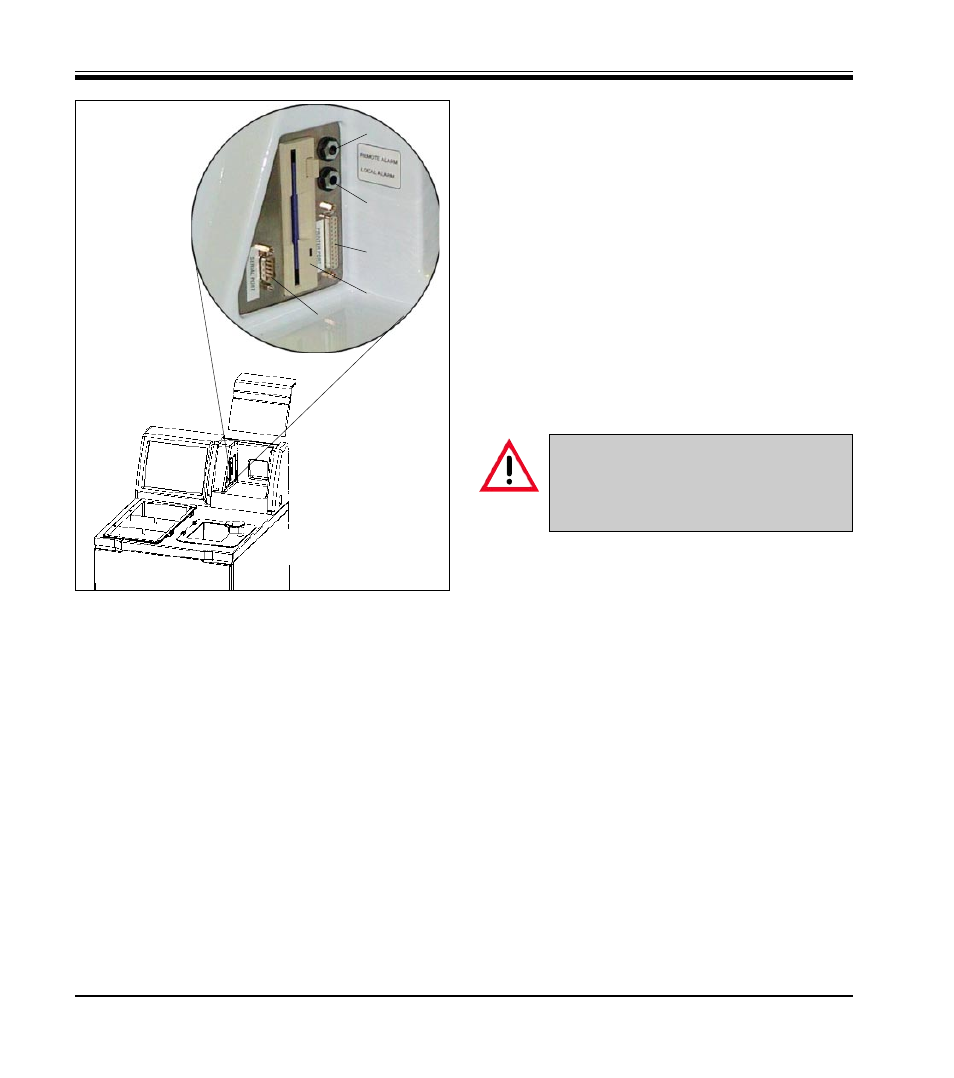

Fig. 6

4.

Setting up the instrument

7
