3. Instrument Components and Specifications
Specimen cylinder
Removable
section waste tray

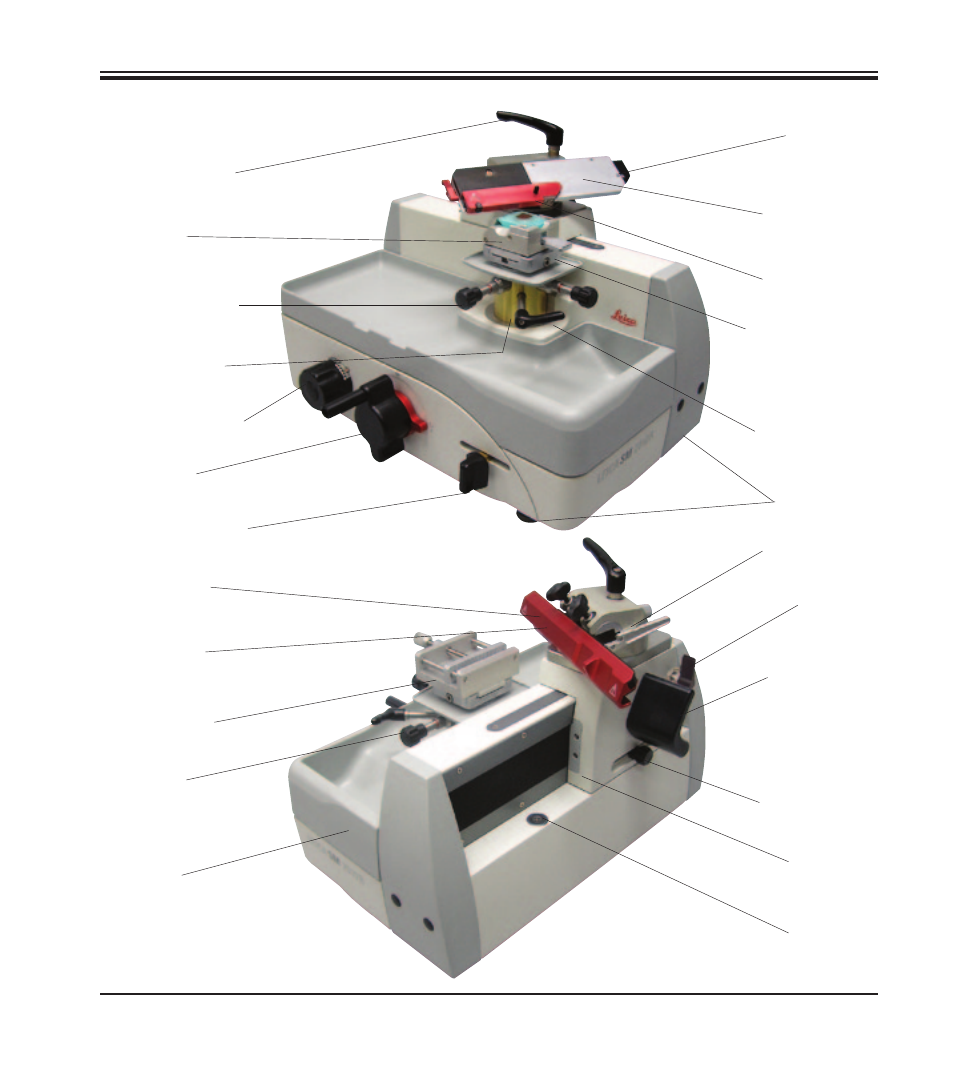

3.1 Overview - instrument components
Knife sledge
Ergo handle for
moving the knife
sledge
Blade holder SE
Coarse driving
wheel
Adjusting knob of
automatic feed
Knife guard on
the blade holder
Fig. 4
Magnetic
knife sledge
immobilizer
Setscrew for
orientation in cutting
direction
Adjustable
instrument feet
HN40
tensioning clamp
Lever for
clamping the
blade
Scaled adjusting knob
for setting the section
thickness
Lever for manual feed
Clamping lever for
lateral displacement
Clamping lever for
specimen orientation
Knife sledge
lock
Clearance angle
scale
Knife holder SN
Setscrew for
orientation
perpendicular to
cutting direction
Universal
cassettes
clamp
Quick clamping
system for holding
the specimen
clamps
Knife guard on
the knife holder
