20 Instructions for Use V 1.4 RevC – 09/2013
4. Instrument Setup
The object orientation allows for simple position
correction of the specimen surface when the
specimen is clamped into place.
You can use the quick clamping system (29) to
hold all the available accessory specimen clamps
(for more information, see Chapter 7 "Optional
Accessories ").

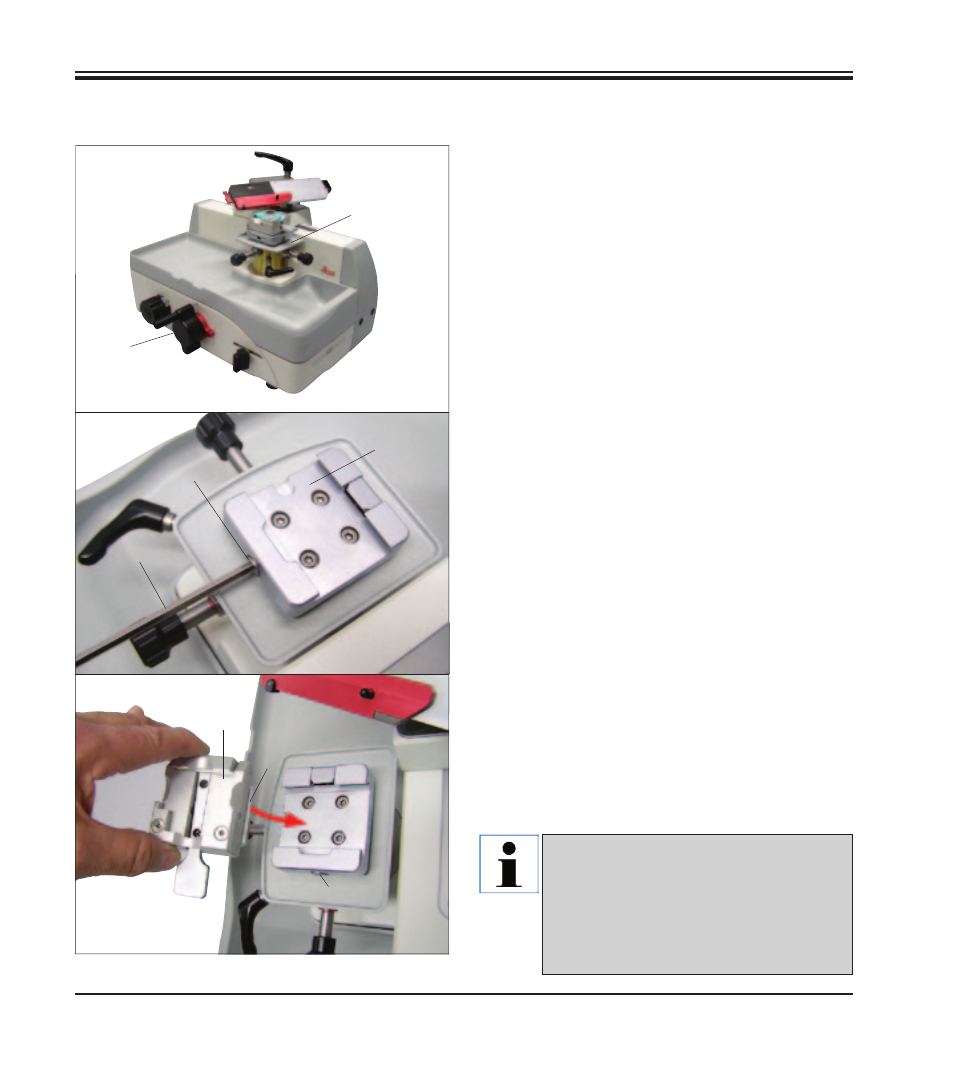

4.6 Inserting the universal cassette clamp
29
40
36
37
39
42
29
41
37
To do so, proceed as follows:
• Move the object head (40) to the lower end po-
sition by turning the coarse driving wheel (36).
• To loosen the clamping system, turn the screw
(37) of the quick clamping system (29) coun-
terclockwise using a size 4 Allen key (39).
• Push the guide (42) of the universal cassette
clamp (41) from the left into the quick clamping
system (29) as far as it will go.
• To clamp the cassette clamp, turn the screw
(37) clockwise as far as it will go using the
size 4 Allen key.
Since all stage clamps available as ac-
cessories are equipped with the same
kind of guide on the back, they are in-
serted in the same way as described
here using the example of the universal
cassette clamp.
Fig. 22
