821 mainframe components (top front view) – Landoll ICON 800 Series Earthmover User Manual
Page 20

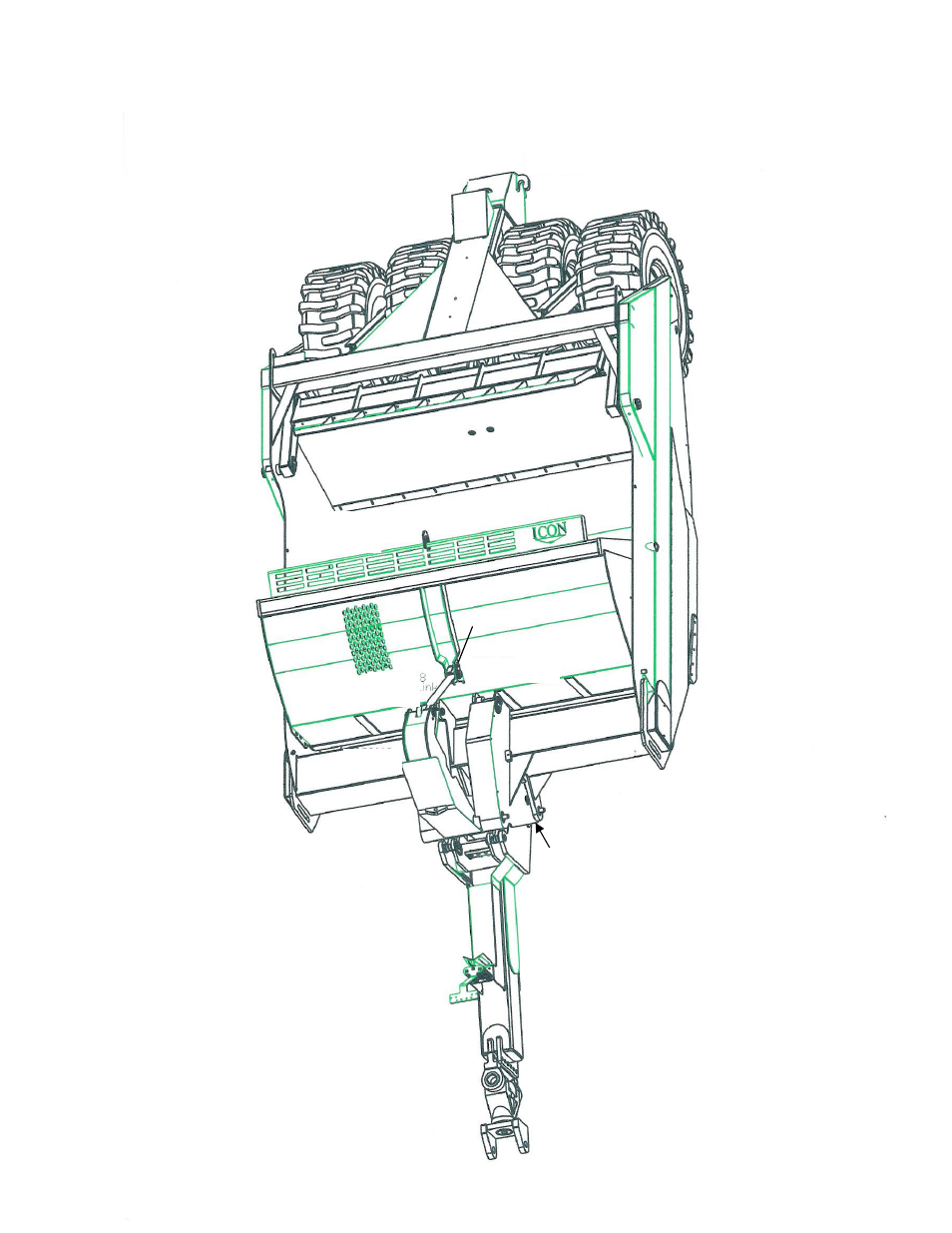

821 Mainframe Components (top front view)
56
18
1
11
20
9
37
19
14
2/3
16
23
22
13
21
8
61
66
spacers
ICO2014
push block
ICO0512
Coupler Holder
ICO2043
Gate
ICO02
04 wea
r strips
ICO2046
push off wall
ICO0236
push off pin cap
ICO0525 po frame
2.5 x 10.75
ICO0523 tapered gate pin
NOTE: 1 1/2” nut should be
tightened to 400 ft. lbs.
ICO0206 L & R
Side Cutting Edges
ICO2001
Pin 3.5 x 32
ICO2000
Straight Hitch
2000460
Cast Swivel Hitch
ICO0235
Hose support
ICO0358 spring
ICO0420 2.5x5
ICO2002
ICO0498
ICO2132
ICO0474
Tandem Hitch
57
Both mount with ICO0218 Pin.
89
4001271 flanged bushing (located in straight hitch)
