9
KDS Model 410 Series Syringe Pumps
(1 & 2) Shoulder
Screw (2 places)
for tightening the
“V” Clamp
(3 & 4)
“T” Knob
(2 places) for
adjusting the
Flange Bracket
(5 & 6) “T” Knob
(2 places) for
adjusting the
Plunger Knob
(8) “V” Clamp

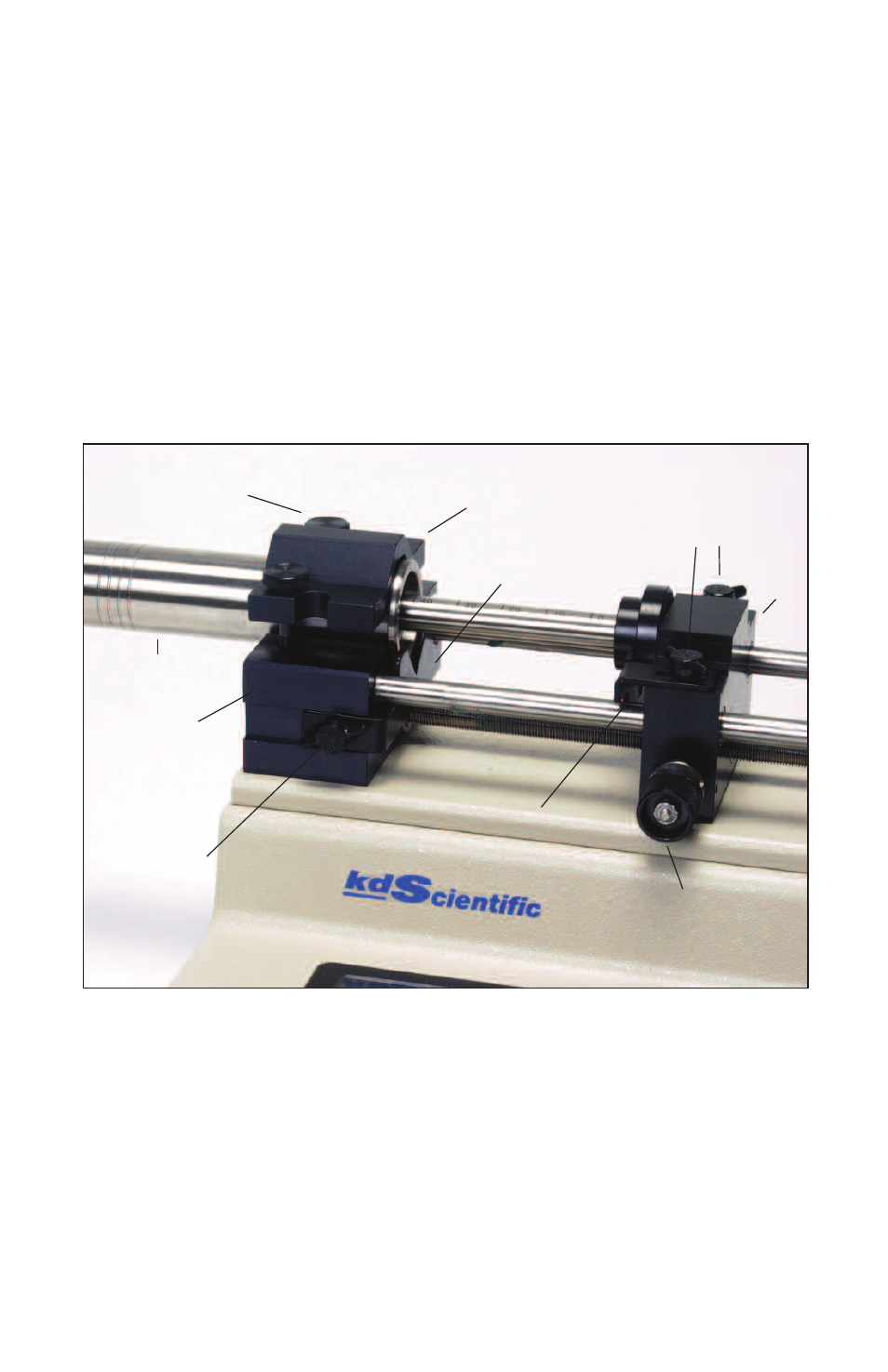

Clamping for Stainless Steel Syringes
Flange Bracket
Barrel
Pusher
Block
(7) Plunger Knob
KDS Model 410 Series Syringe Pumps
Operating Instructions
(Continued)
SYRINGE LOADING (Continued)
8. Slide the Flange Bracket towards the Syringe Flange and tighten the “T” knobs
(3 & 4) .
9. Slide the Plunger Bracket towards the Pusher Block, and tighten the “T” knobs
(5 & 6) .
10. Engage the Pusher Block by pulling the Knob (7) out and rotate the knob 90˚
clockwise.
Using the “V” Clamp for Stainless Syringes
1. Unscrew and remove the two Shoulder Screws (1 & 2) and remove the
“V” clamp (8) .
2. Loosen the two “T” knobs (3 & 4) and slide the Flange Bracket towards the
Pusher Block.
3. Loosen the “T” knobs (5 & 6) and slide the Plunger Bracket towards the Syringe
Holder Block.
4. Disengage the Pusher Block by rotating the Plunger Knob (7) until it snaps into
place.
Plunger Bracket
Syringe
Block Holder
