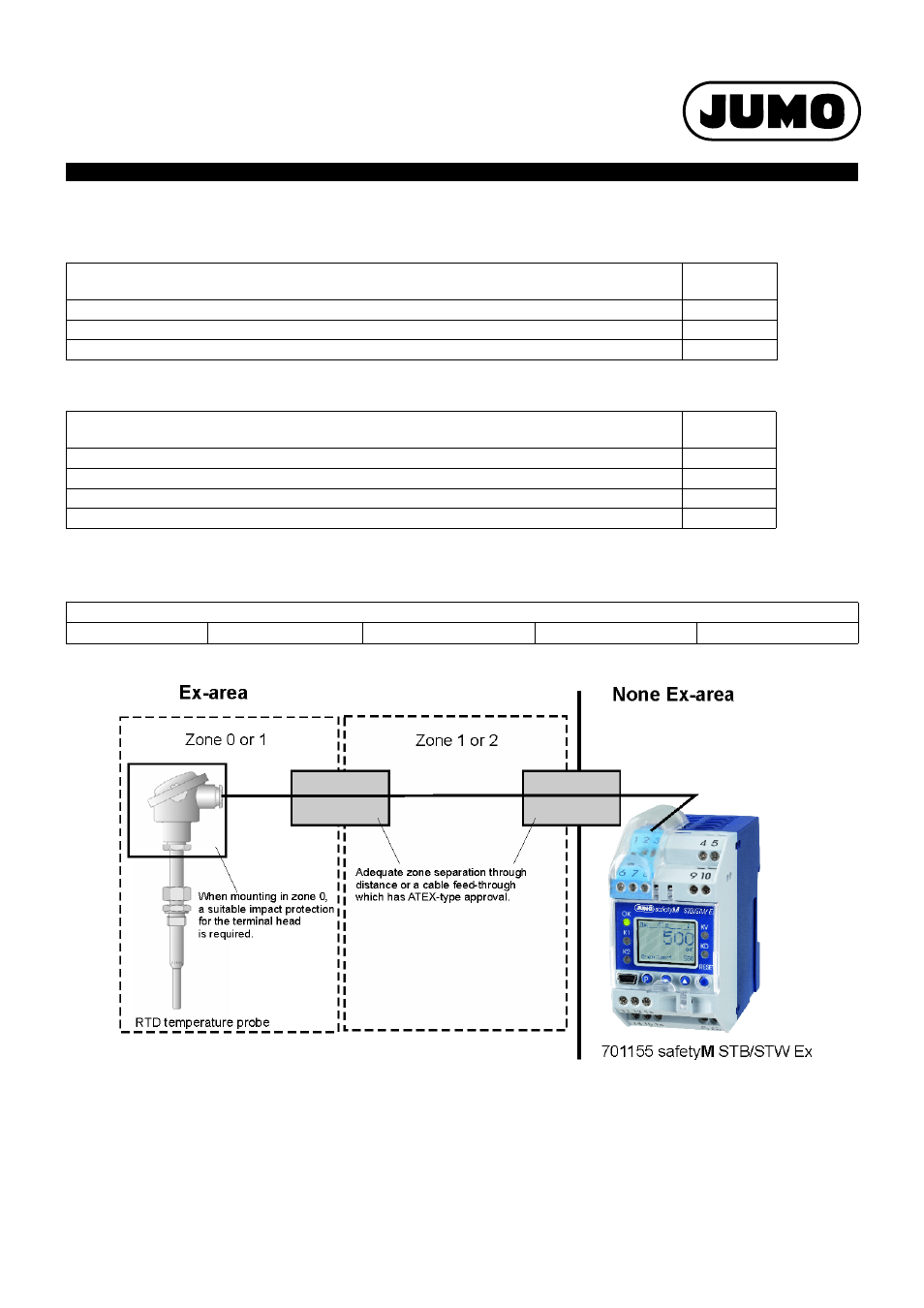

Probe arrangement in the Ex area
Important information:
The indicated senor system on page 9 does not have zone separation.
The type of zone separation as well as the cable selection must be implemented or selected in such a way so that the defined zone
classifications and their requirements continue to be in place.
Accessories
Article Sales
no.
Setup program, multilingual 70/00548742
USB cable 70/00506252
External unlocking button RT 70/97097865
Stock versions
Order code Sales
no.
701155/8-01-0253-2001-25/005 70/00572502
701155/8-01-0253-2001-23/005 70/00572503
701155/8-01-0253-1003-23/005 70/00523554
701155/8-01-0253-1001-25/005 70/00548135
The STB/STW 701155 has the following maximum output data at the intrinsically safe inputs:
U
o
= 6.0 V I
o
= 41.2 mA P
o
= 61.8 mW C
o
= 36.3
μ
F L
o
= 20 mH
