Data Sheet 603021
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address:
36035 Fulda, Germany
Phone:
+49 661 6003-0
Fax:
+49 661 6003-607
E-mail:
Internet:
www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
E-mail:
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866
1-800-554-5866
Fax:
315-437-5860
E-mail:
Internet: www.jumousa.com
2014-01-08/00073225
Page 10/10

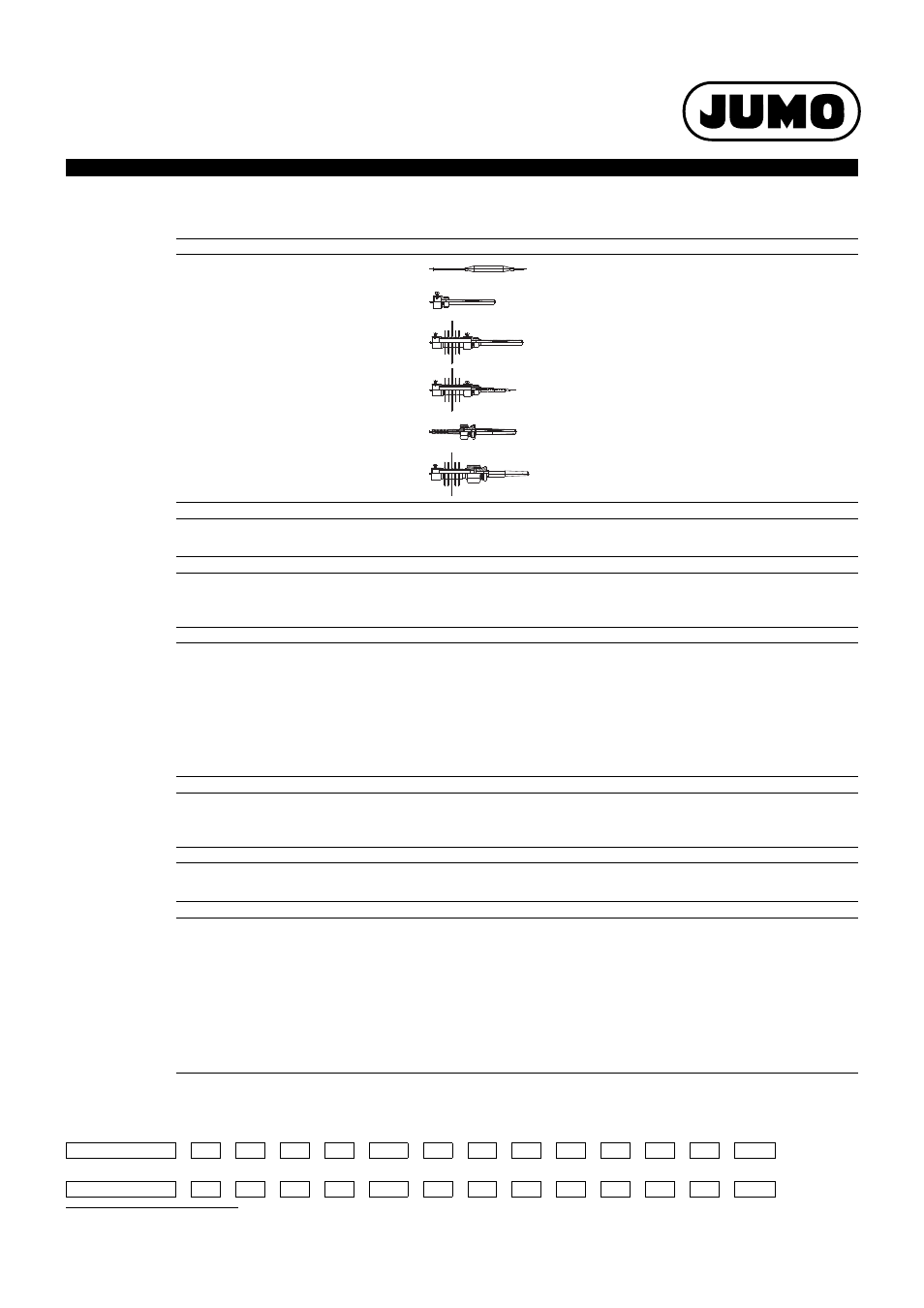

Order details
Surface-mounted thermostat, ATH series
Order code (8) Process connection (PA)
1
10
Plain cylindrical probe (only for ATHf)
20
Screw-in thermowell
30
Screw-in thermowell
with intermediate piece
31
Screw-in thermowell
with intermediate piece, open
42
Weld-in sleeve for union nut,
conical
46
Welding sleeve for union nut
with intermediate piece, conical
(9) Thread of process connection
1
00
Without thread (process connection 10)
13
External thread G 1/2
(10) Material of process connection
00
Only with process connection 10
46
CuZn
(Brass)
20
CrNi
(Stainless steel 1.4571)
(11) Insertion length "S" (immersion tube length)
000
ATHf without thermowell
100
100 mm
120
120 mm
150
150 mm
200
200 mm
300
300 mm
400
400 mm
...
... Special length, specifications in plain text
(12) Diameter "D" (immersion tube diameter)
00
ATHf without thermowell
0
8
0
8 mm
10
10 mm
(13) Diameter "d" (probe diameter)
6
6 mm
8
8 mm
(14) Extra codes
2
000
Without extra code
248
"k"
Wall mount
574
"U"
Microswitch with N/C contact,
restart lock, and additional signal contact (only for STB)
701
"a"
Case lid made of aluminum diecasting (not with extra code "711")
702
"au"
Snap-action switch contact, gold-plated
(only with switching differential 3 %, 5 %, and 7 % and STB with N/C contact)
711
"r"
Switching head mounting with 2 screws through the case bottom section,
lateral capillary exit on the case, lid, and bottom section made of plastic
764
"b"
Mounting flange made of steel sheet, capillary exit on the case spigot
1
For other connection types and thermowells, see data sheet 606710.
2
List extra codes in sequence, separated by commas.
Order code
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
603021
/
..
-
.
-
...
-
..
-
....
-
..
-
..
-
..
-
..
-
...
-
..
-
.
/
...
,
...
,
...
Order example
603021
/
70
-
1
- 043 -
00
-
0
-
00
-
20
-
13
-
20
- 100 -
8
-
6
/
574
2
