7

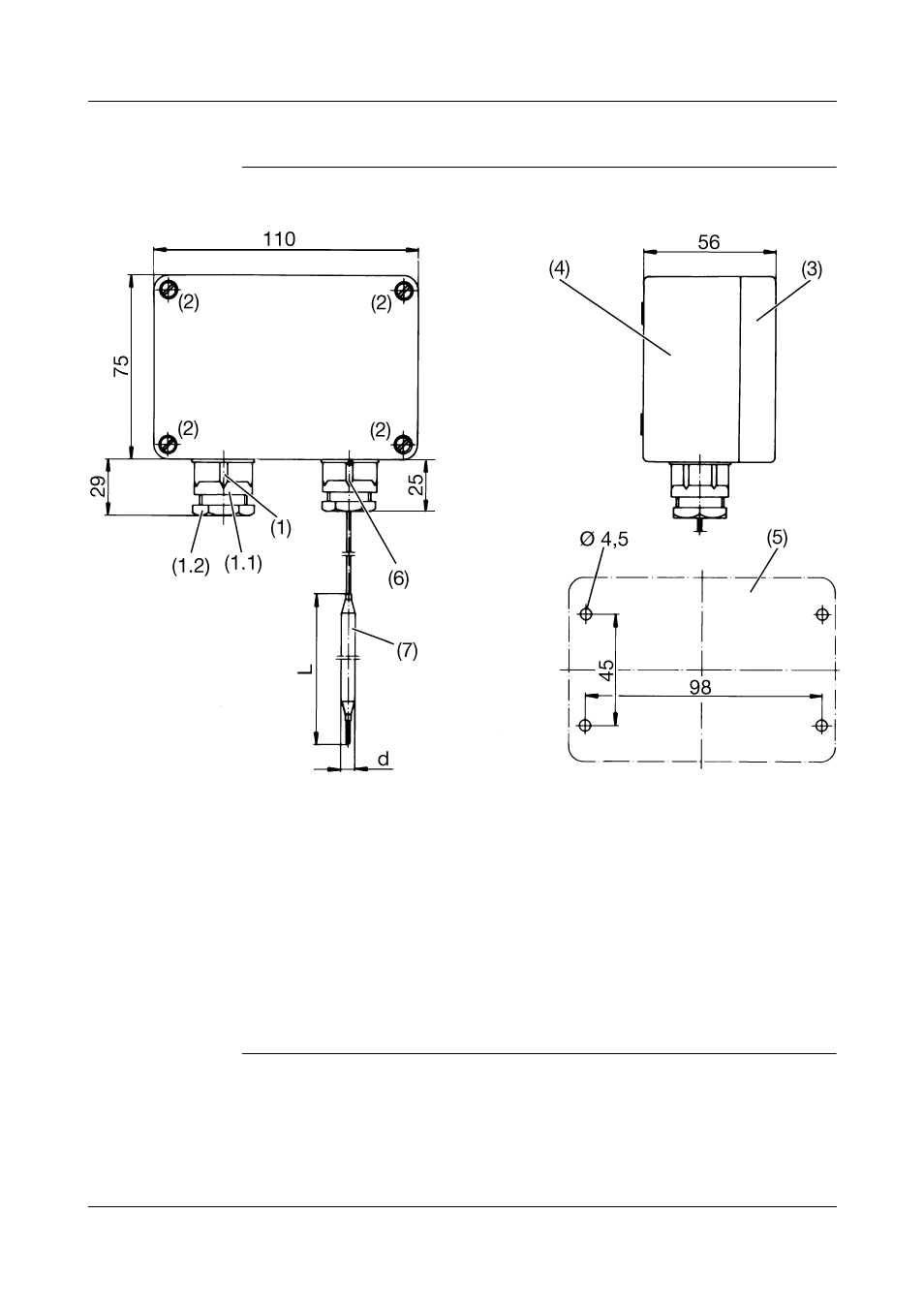

3 Mounting

3.1

Dimensions

(1)

Ex cable gland M 20 x 1.5 x 6-12

(1.1) Screw-in thread.

Tightening torque:

3.75 Nm

(1.2) Compression screw. Tightening torque:

for cable dia.

0

6 mm = 3.5 Nm

Tightening torque:

for cable dia. 12 mm = 2.5 Nm

(2)

Cover screws (2 are lead-sealable)

(3)

Cover

(4)

Housing bottom

(5)

Drilling diagram

(6)

Ex cable gland for sealing the capillary exit

(7)

Temperature probe
