Data Sheet 70.6560 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 8/12

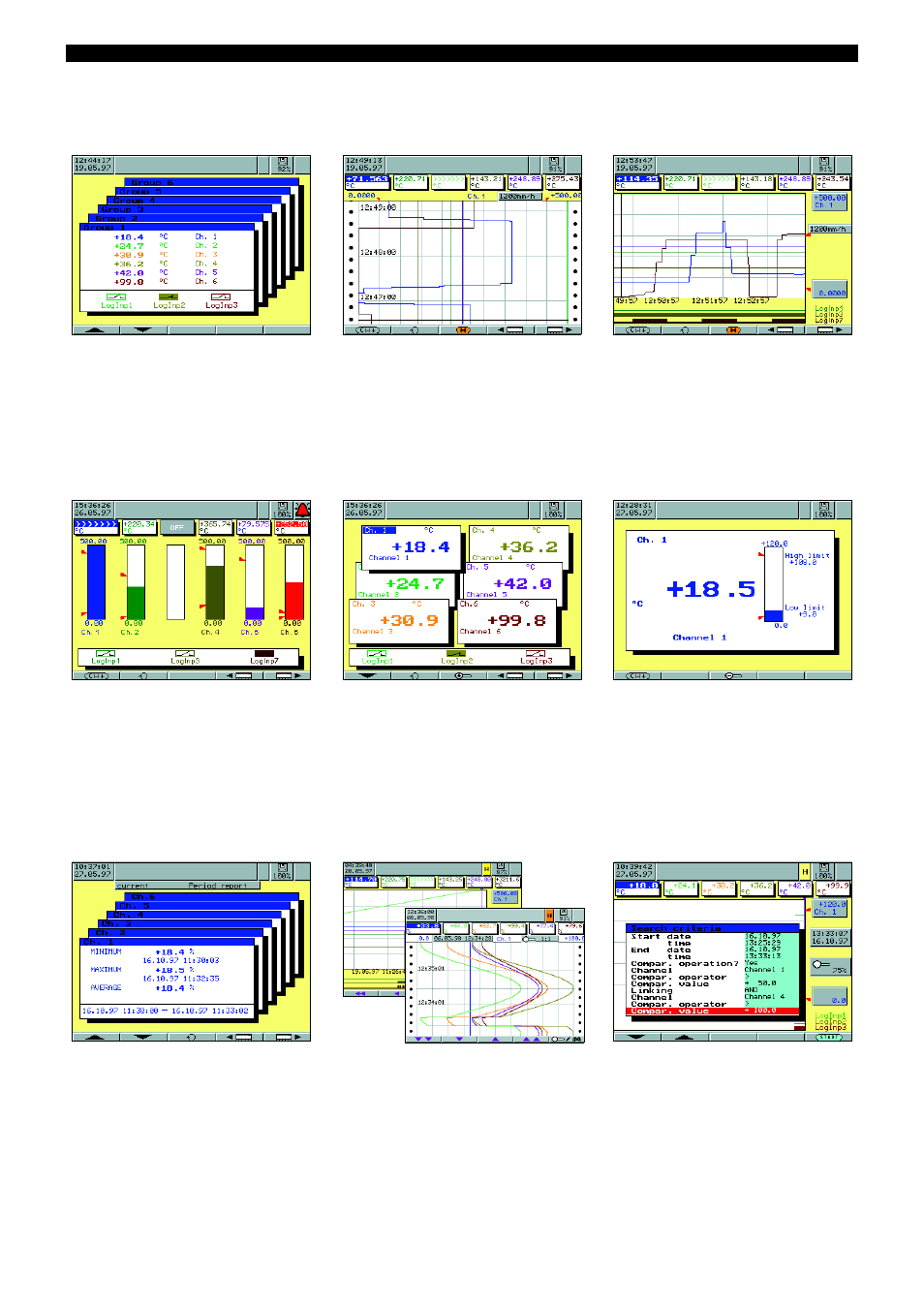

Presentation modes on the recorder
Group manager
k 6 groups, each with any 6 analog
and 3 binary inputs
k one input can be assigned to several
groups
k display of present measurements
or states of inputs
k groups can be active/inactive
Vertical diagram
k recorder chart presentation of the
analog channels
k scaling and limit marker indication
on one channel
k numerical display of the present
analog channels
Horizontal diagram
k graphical presentation of the analog
and digital channels
k scaling and limit marker indication
on one channel
k numerical display of the present
measurements of the analog
channels
Bar graph presentation
k bar graph presentation of the analog
channels
k on/off presentation of the digital
channels
k display of the present analog
channels with scaling and limit markers
k color change of bar graph to red
on overlimit condition
Numerical presentation
k large numerical presentation of the
analog channels, including the
2-line channel description
k each analog channel can be
switched to the foreground
k on/off presentation of the digital
channels
Numerical 1-channel presentation
k clear presentation of one analog
channel
k one analog channel is presented
simultaneously as bar graph and
number
k display of the 2-line channel
designation
k indication of scaling and limit markers
Report
k report of one analog channel
in its own window
k indication of minimum, maximum,
average /integral value and time period
k display of previous report
History presentation vert./horiz.
k graphical presentation of all stored
measurement data at different zoom
levels
k indication of scaling and limit markers
for one channel
k numerical display of the measurements
of the analog channels at the cursor
position
k shifting of the visible window within the
stored measurement data
History analysis
k restriction to a specific time period
