JUMO 709050 IPC IGBT Power Converter Data Sheet User Manual
Page 9
JUMO GmbH & Co. KG • 36035 Fulda, Germany
2009-11-01/00389005
Data Sheet 70.9050
Seite 9/12

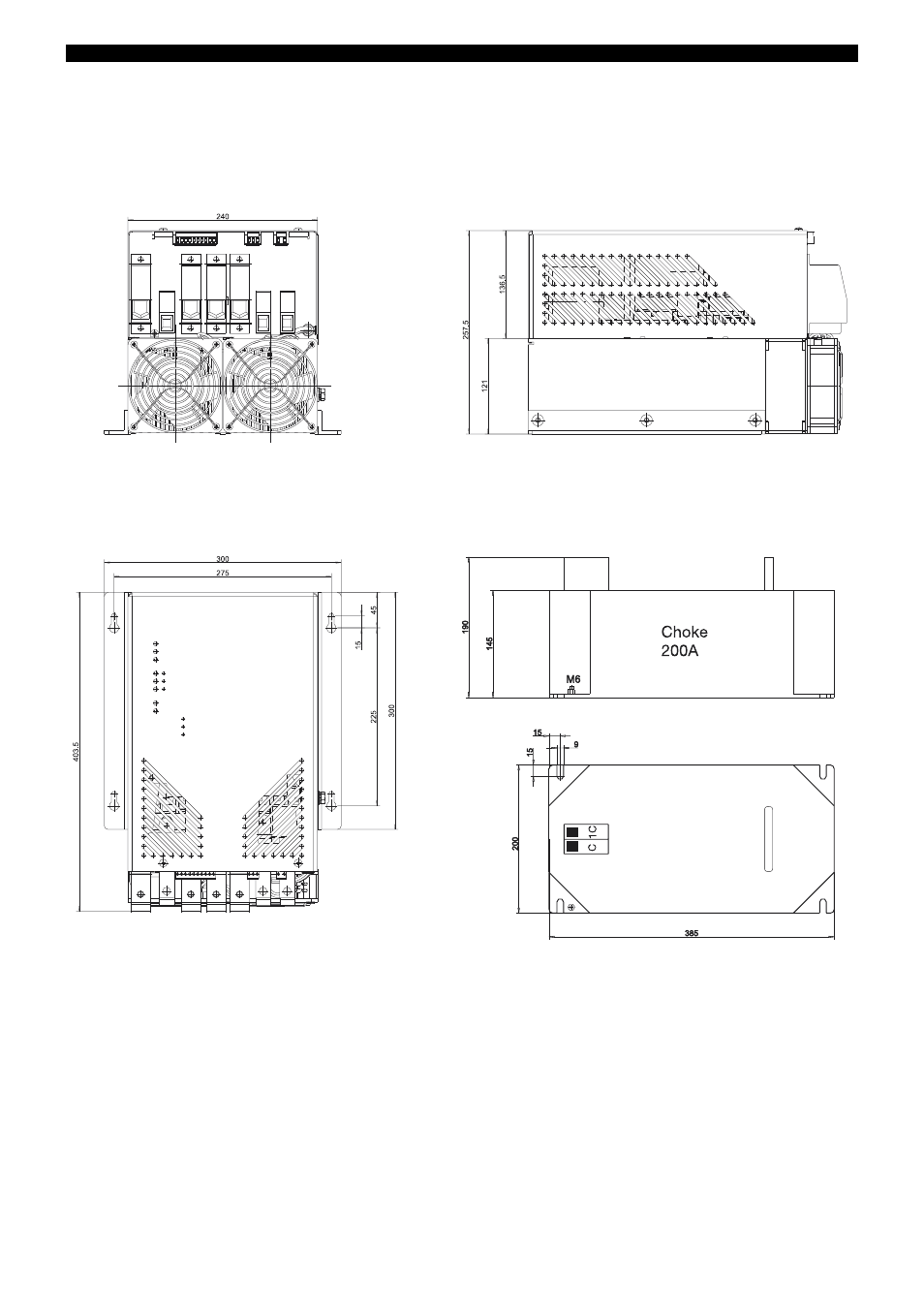

Type 709050/X3...
Note:
Tightening torque of the screws in the power section (Allen width across flats 5 mm) 6...8 Nm.
Tightening torque of the screws in the power section (Allen width across flats 6 mm) 15...20 Nm
Tightening torque of the 200A choke screw terminals: 15...20 Nm
Tightening torque of the green screw terminals in the control section: 0.5 ... 0.6 Nm
