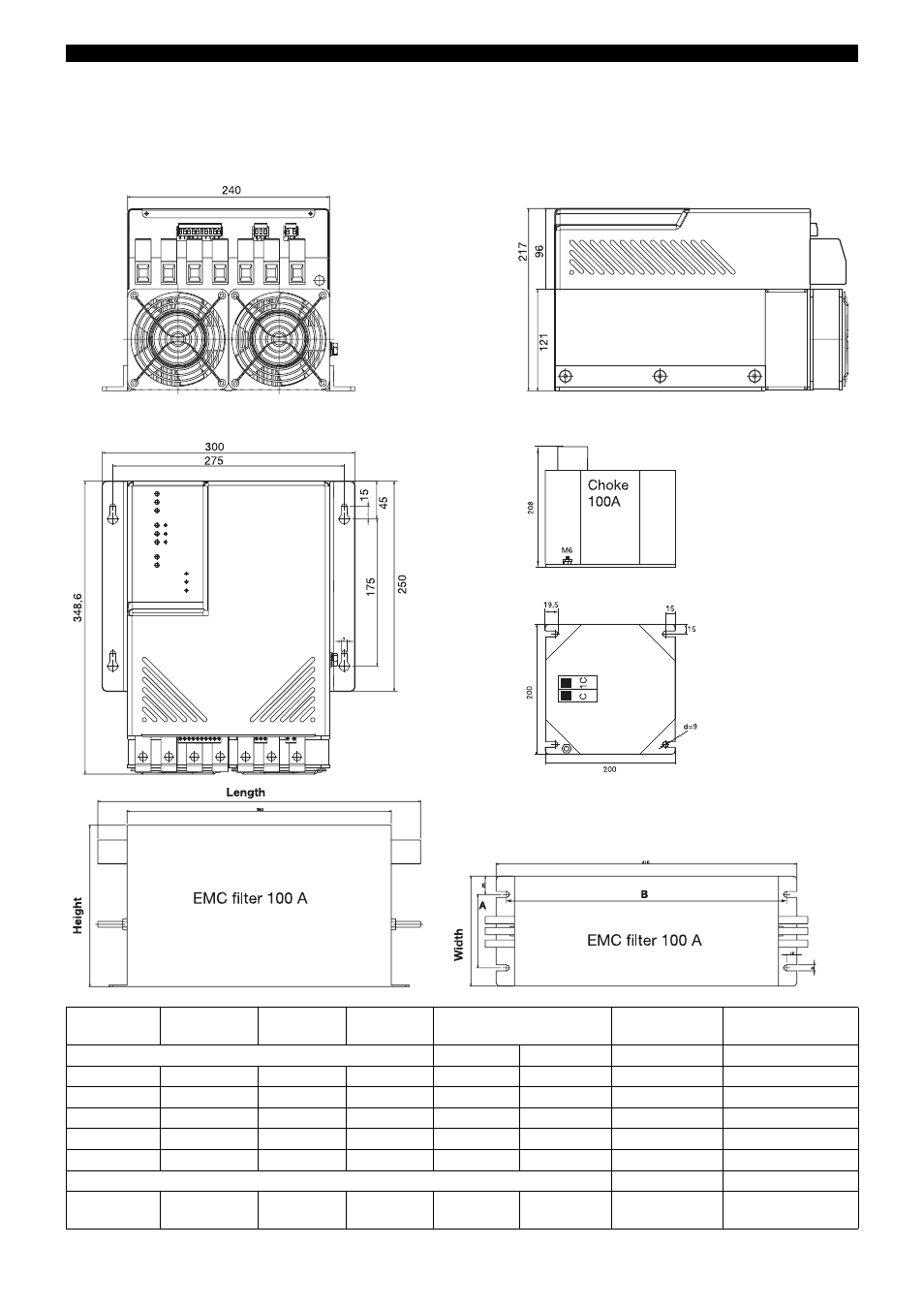

Dimensions
Type 709050/X2...
EMC filter
current
Length in mm Width in mm Height in
mm
Fastening holes
Spacings in mm
Tightening
torque
Connection cross-
section in mm
2
for the power section A B
16A 255 60 125 25 240 0.6 ... 0.8 Nm 0.25...4
20A 289 70 140 50 295 1.5 ... 1.8 Nm 0.5...10
32A 324 90 160 50 295 1.5 ... 1.8 Nm 0.5...10
63A 380 117 190 65 330 2 ... 2.3 Nm 0.5...16
100A 445 150 220 100 385 6 ... 8 Nm 10...50
for the control section
1A 80 46 30 - 61 via tab connector
6.3 x 0.8mm
Note:
Tightening torque of the screws in the power section (Allen key width across flats 5
mm) 6...8 Nm.
Tightening torque of the 100A choke screw terminals: 6...8 Nm
