JUMO GmbH & Co. KG • 36035 Fulda, Germany
2009-11-01/00389005
Data Sheet 70.9050 Seite 11/12

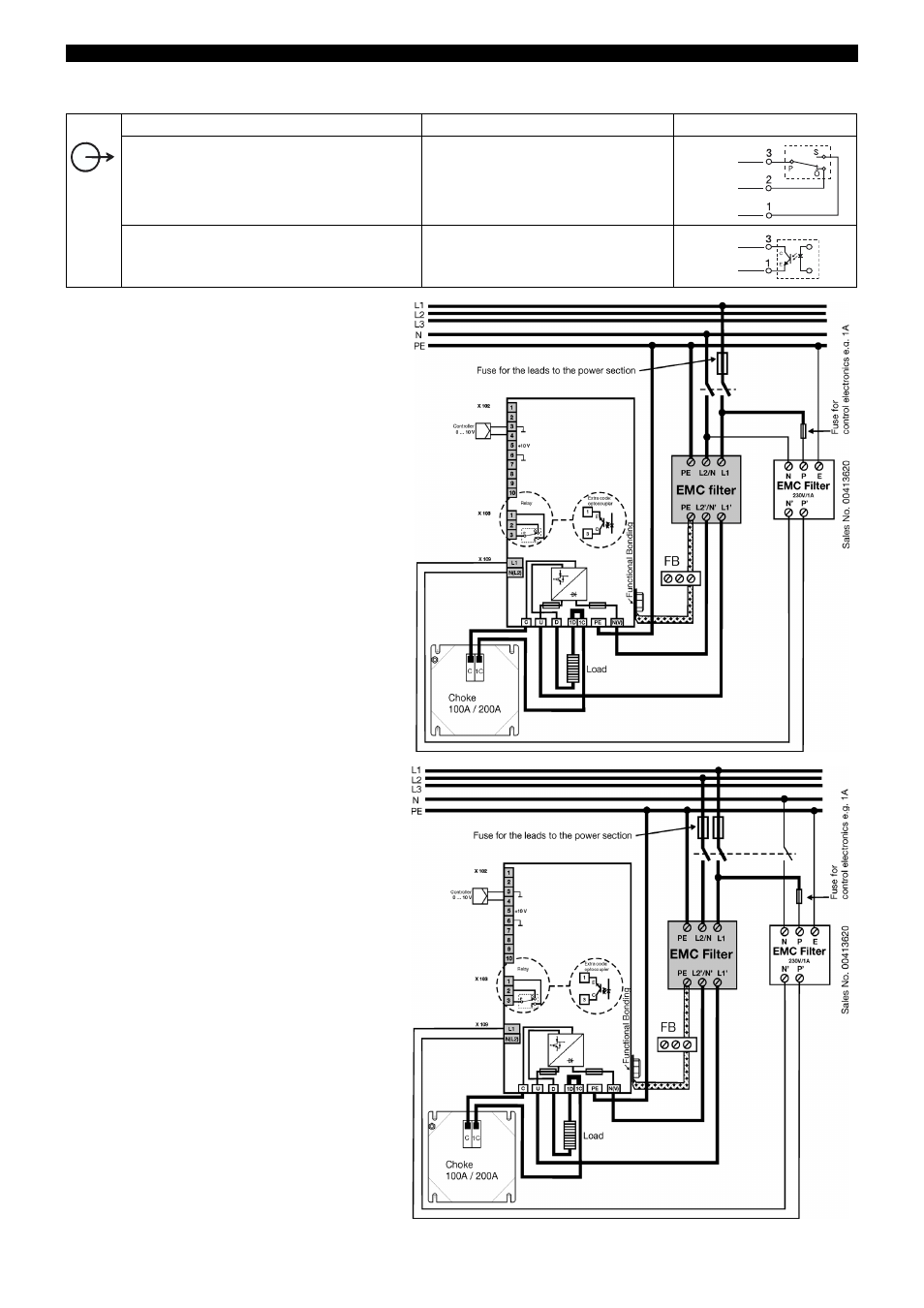

Connection for Screw terminal X103 Detail
Load fault output with relay
contact rating 230V AC/3A
resistive load
relay drops out at fault 1 make contact
2 break contact
3 common
Load fault output with
optocoupler Ic
max
= 2mA
U
CEO max
= 32 V
3 collector
1 emitter
Wiring for single-phase mode Phase / N
with type 709050/X2... and 709050/X3...
Wiring for single-phase mode Phase / Phase with
type 709050/X2 and 709050/X3...
