7 Online parameters

7.1

Calibrate / test

7.1.1

Digital output

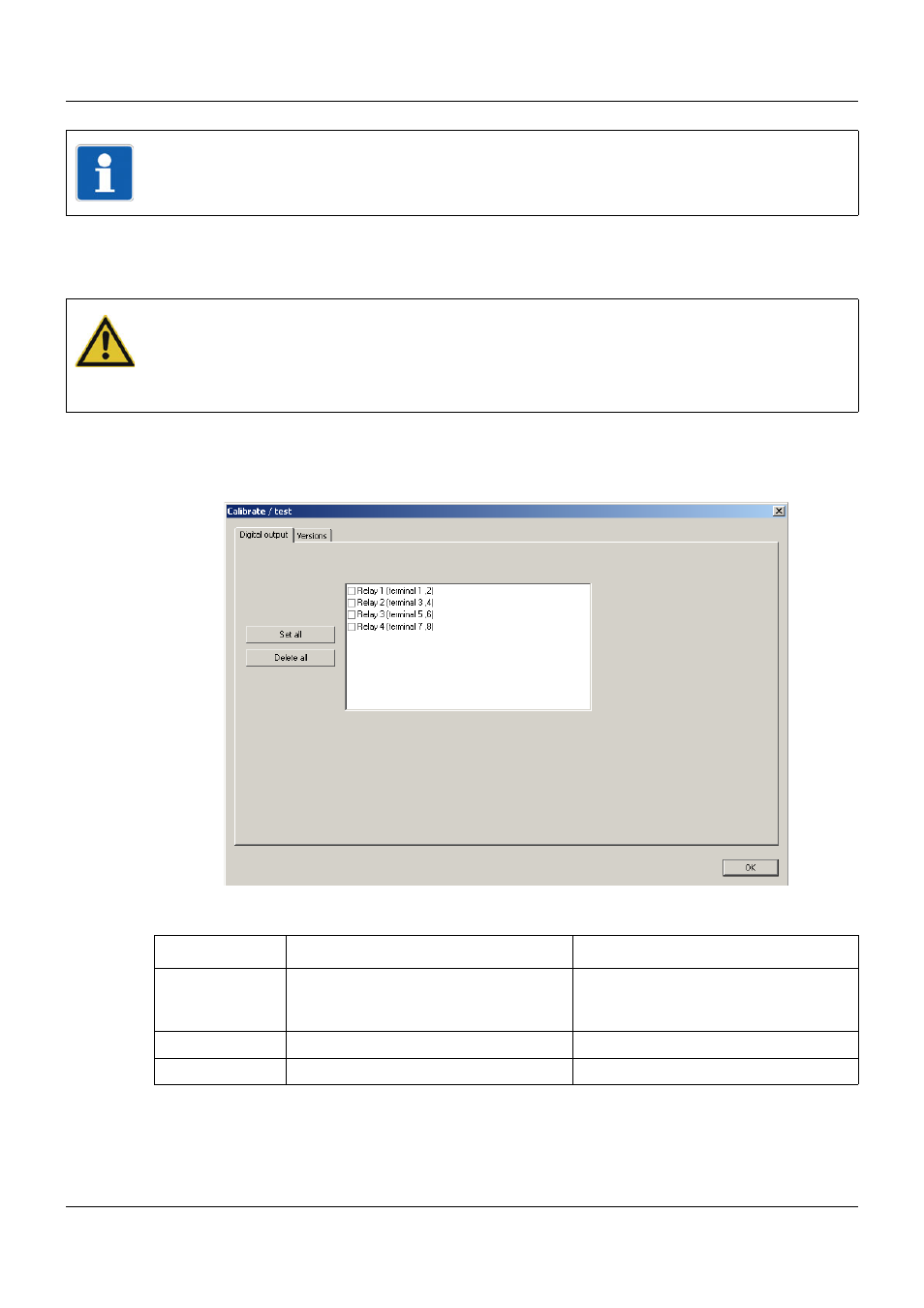

Setup dialog

Parameter

TIP!
An active connection between the setup program and the central processing unit is required
to configure the parameters described in this section.

CAUTION!
Incorrect settings may result in inadmissible changes to values.
This can have negative effects on the system function.
This function must be used only by (or under the instruction of) a service technician of the
device manufacturer.

Parameter

Selection/settings

Description

Relay 1

to

Relay 4

Select relay (activate checkbox).
Several relays can be selected.

The selected relay switches to operating
position.

Set all

Click the "Set all" button.

All relays switch to operating position.

Delete all

Click the "Delete all" button.

All relays switch to idle position.
