6 Configuration
32
6.2 NV connecting list
The NV connecting list is used to link external inputs (NV_...) of the relay module to signals from
other modules via the system bus.
A comprehensive list with the module signals is included in the following chapter:

Chapter 6.2.1 "Digital signals", page 33
Further information about the signals can be found in the operating manual for the relevant
module.

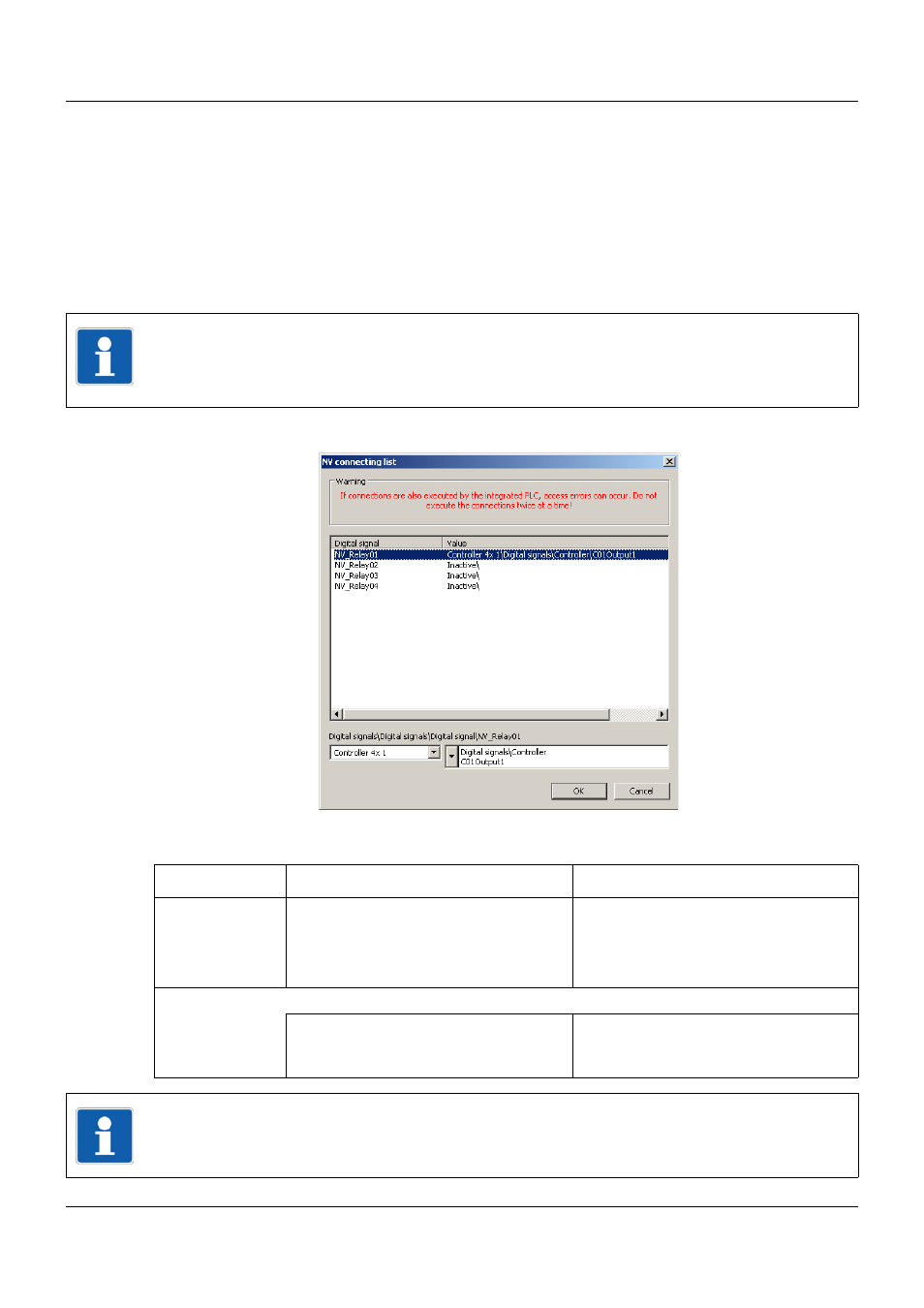

Setup dialog
Parameter
TIP!
There is no NV connecting list in the input/output module configuration menu on the multi-
function panel. Instead, a central NV connecting list is available in the configuration menu of
the base unit (CPU).
Parameter Selection/settings Description
Digital signal /
Value Select input to be connected. List of external inputs of the module
If a connection has already been config-
ured, the module and its signal are dis-
played in the "Value" column.
...\NV_Relay01
(Example) This is the previously selected external input.
Select the module and – in the selector
next to it on the right – the signal to con-
nect to the external input. List of modules in the system and the
relevant signals
TIP!
All digital outputs of the relay module are inactive if these signals are not available (connec-
tion to base unit interrupted or system in "Stop" state).
