2 Description
2.1 Brief description
The analog input module 8-channel is equipped with eight analog inputs for RTD temperature
probes in 2-wire circuit as well as one digital input (DC 0/24 V). The analog inputs are not elec-
trically isolated from each other. The digitized input values/states are available in the system
for further processing.
LEDs are used to indicate applied voltage supply, the module operating status, as well as the
digital input status.
A setup program can be used to comfortably configure the analog input module.
For service work, the module insert can be easily pulled out of the case at the front. The case
including the bus PCB remains mounted on the DIN rail.

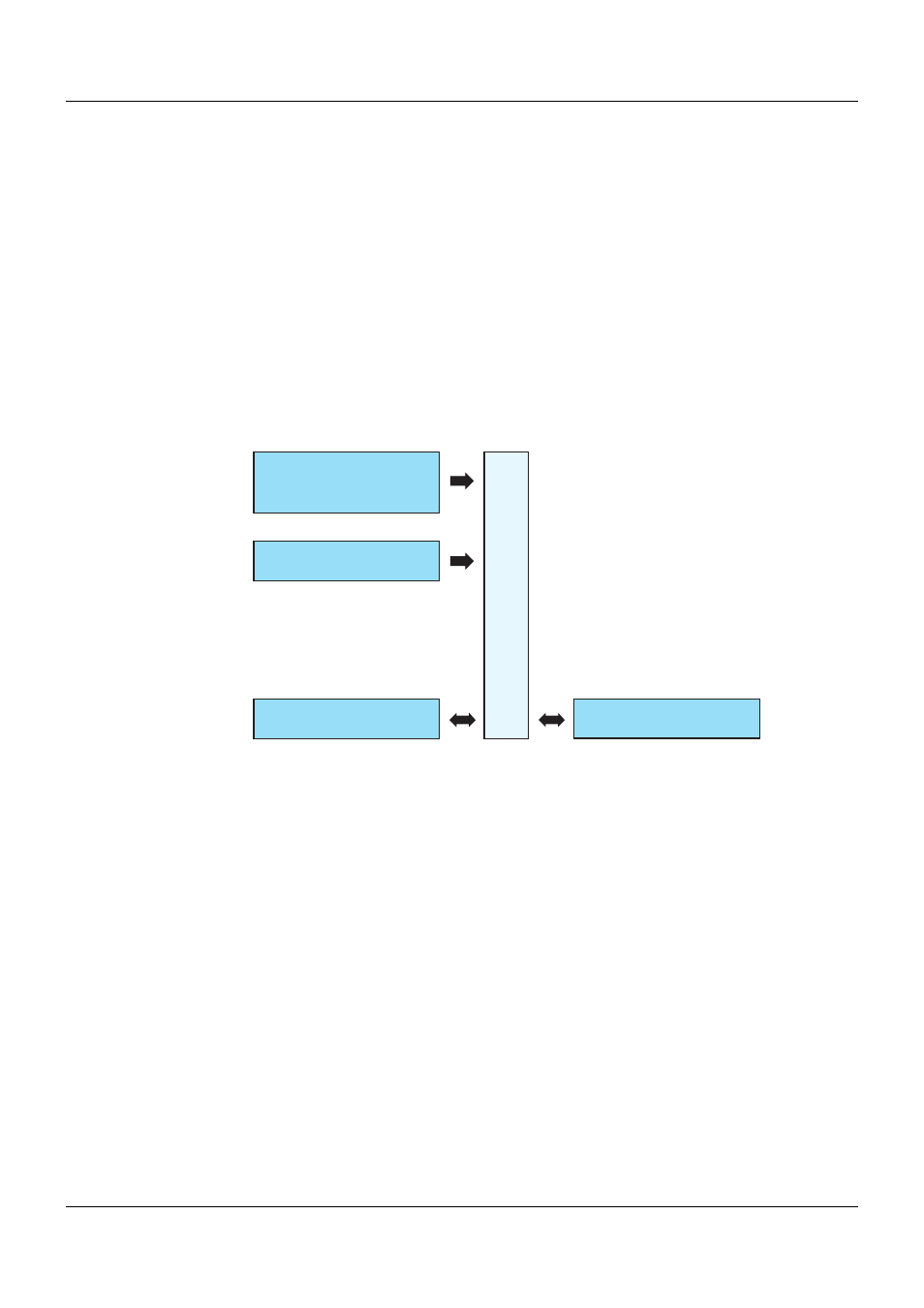

2.2 Block diagram
8 Analogeingänge
Pt100, Pt500, Pt1000 in
Zweileiterschaltung
1 Digitaleingang
(DC 0/24 V)
705021
Spannungsversorgung Systembus
