63

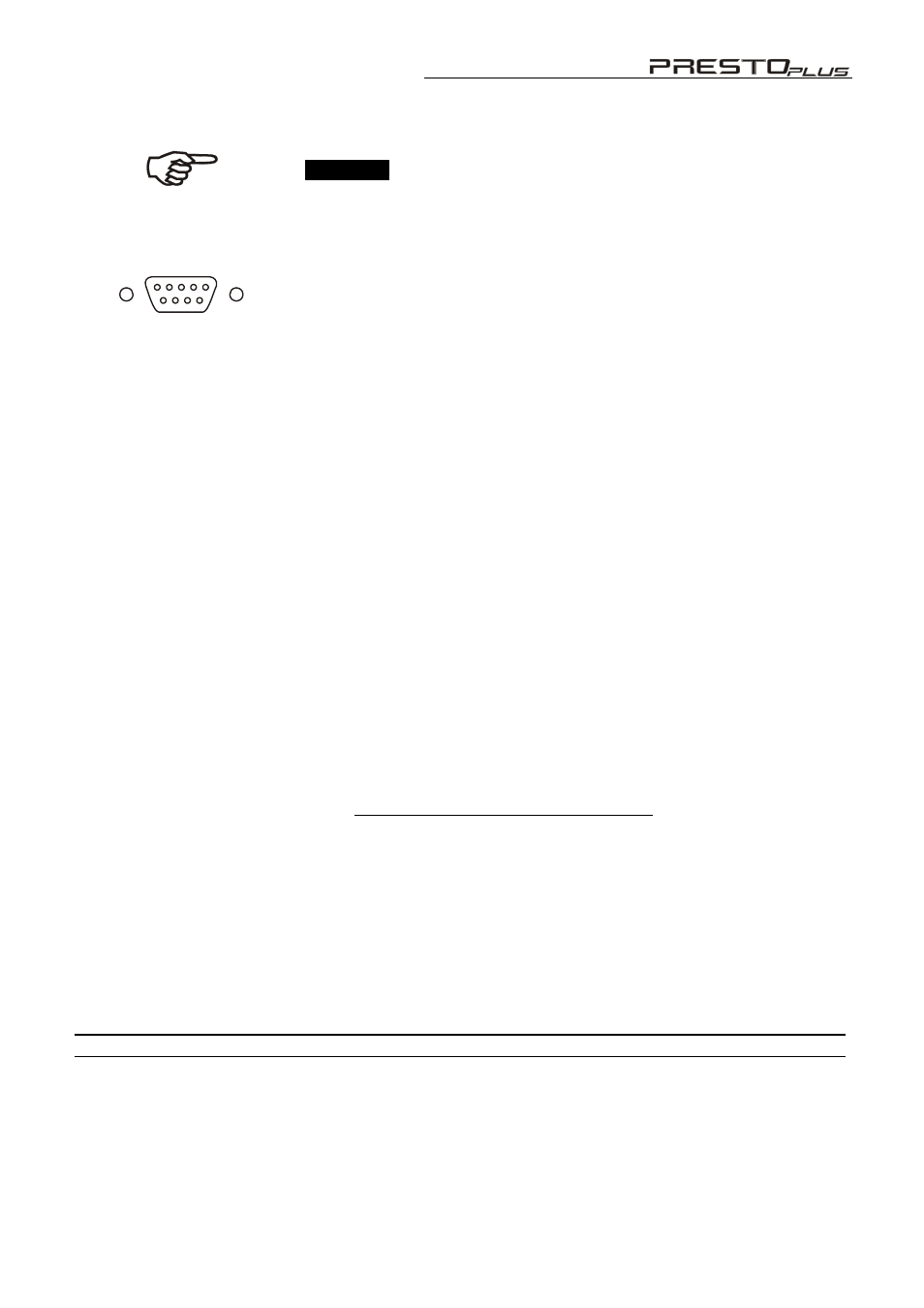

10. Electrical connections

Important:

Use shielded cables only.
The shield of the connecting cable is electrically connected to the
plug housing.

9

6

5

1

SERIAL

RS232/RS485 serial interface (3.5)
This port can be used to connect a computer with an RS232 or RS485
cable for remote control of the temperature system.

Pin assignments RS232:

Pin

2

RxD

Receive

Data

Pin

3

TxD

Transmit

Data

Pin 5

0 V

Signal GND

Pin 7

RTS

Request to send

Pin 8

CTS

Clear to send

Pin 1; 4; 6, 9 Reserved - do not use!



Pin assignments: RS485
Pin 3

A

Pin 5

0 VD

Signal GND

Pin 8

B


Pin 1; 2; 6; 7; 9

Reserved - do not use!



RS232 interface cable

Circulator (9-pol)

PC (9-pol)

Pin 2 RxD

Pin 3 TxD

Pin 3 TxD

Pin 2 RxD

Pin 5 GND

Pin 5 GND

Pin 7 RTS

Pin 8 CTS

Pin 8 CTS

Pin 7 RTS

Accessories:

Order No.

Description

8 980 073

RS232 interface cable 9-pol./9-pol. , 2,5 m

8 900 110

USB interface adapter cable
