19
1 Mains power switch, illuminated
2 Local operating board
3 Socket board - description see page 20
4 Removable control module RD
5 Filling funnel (hinged)
6
0
1
Motor protection circuit breaker for compressor motor
2 Mains circuit breakers (resettable) 10 A for the pump-motor
4 Mains circuit breakers (resettable) 16 A
7 Venting grid, removable
8 Drain with drain port

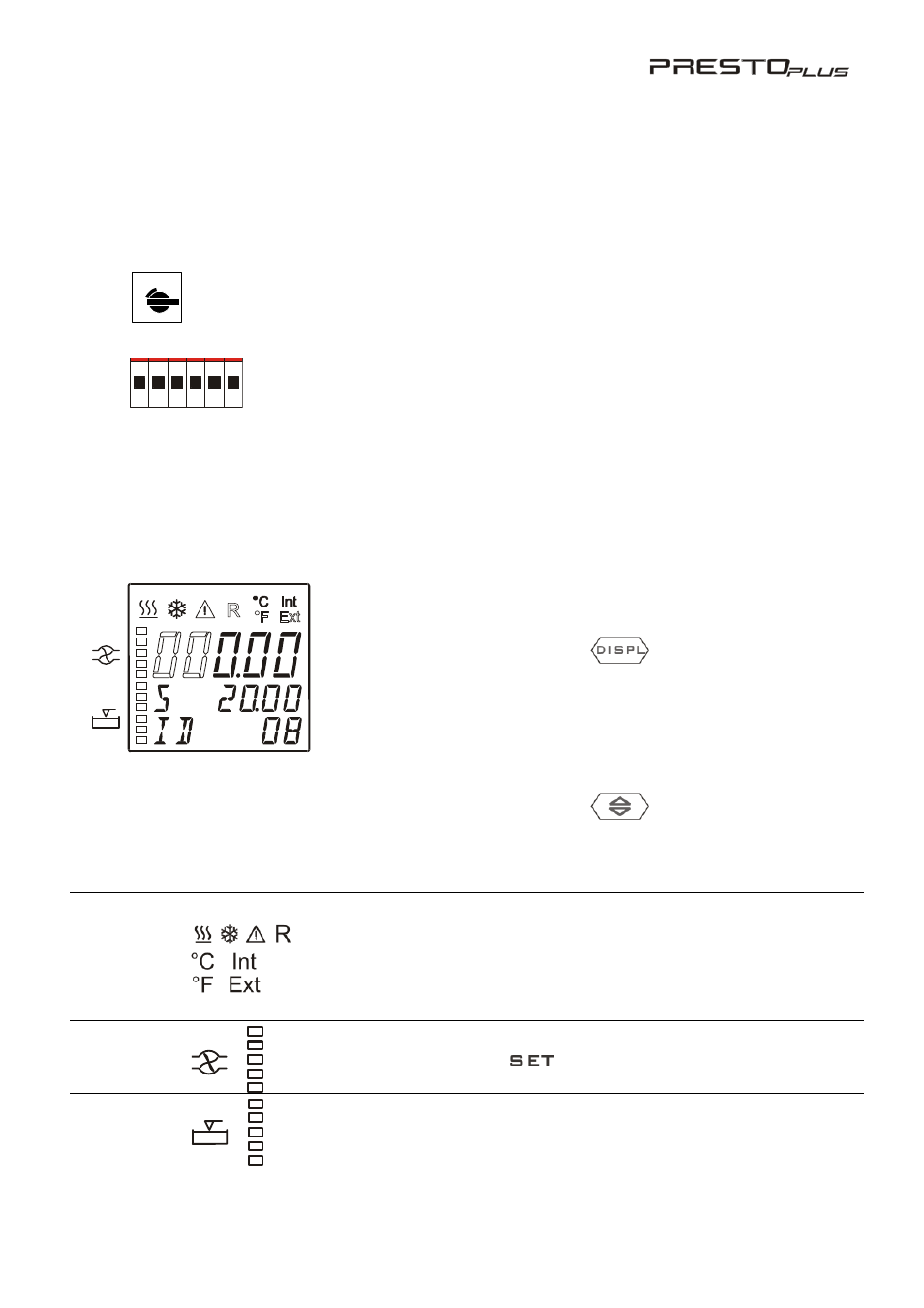

2 Local operating board
2.1
VFD-Info-Display
Header: Control indicators see section 2.2
Line 1: Actual value Int or Ext
To swap, press the key (see below)
Line 2: Working temp. setpoint, constantly S xxx.xx
or
indication of the safety temperature (TANK)
Line 3: Miscellaneous values
To swap, press the key (see below)
or
indication of the safety temperature (RES)
2.2 Control indicators in the header:
Heating / Cooling / Alarm / Remote control
Temperature indication Internal or External actual value
Temperature indication in °C or °F
Display for the adjusted pump pressure stage (five grades),
adjustable via the key
.
Liquid level display (five grades)
for the reservoir.
