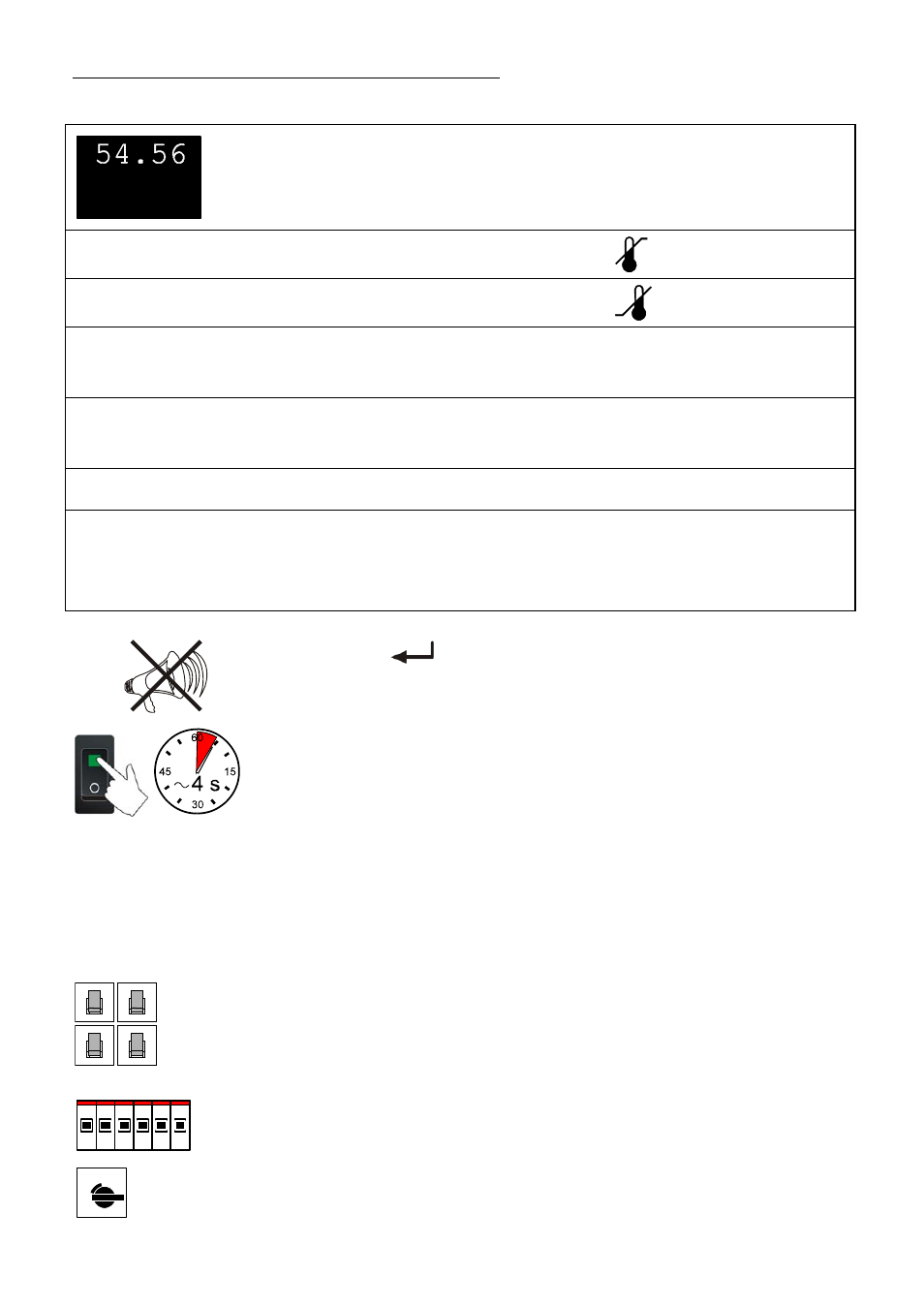

Troubleshooting guide / Error messages

62


Warning
CODE 40

Warnings without a complete shutdown of the unit

CODE 03

Excess temperature warning

CODE 04

Low temperature warning

CODE 20

Cooling of the condenser is affected. Clean air-cooled condenser.
Check the flow rate and cooling water temperature on water-cooled
condenser.

CODE 21

Compressor stage 1 does not work.
Check mains circuit breakers F1 and F3, both might have triggered.
Reset circuit breakers if necessary (see below).

CODE 40

Low liquid level warning in the internal reservoir

These messages appear every 10 seconds as long as the compressor is
not switched on although requested by the instrument.

After a short cooling interval, the motor will be automatically reconnected
and the message " CODE XX " no longer appears.

 Press enter

to quit the audible signal

.

 After eliminating the malfunction, press the mains power switch off and

on again to cancel the alarm state.

If the unit cannot be returned to operation, contact an authorized JULABO
service station.

Disturbances that are not indicated.

Pump motor overload protection
The pump motor is protected against overloading. After a short cooling
interval, the motor will automatically start running.

16

A
M
P

16

A
M
P

16

A
M
P

16

A
M
P

Si1

Si4

Si2

Si3

LH47

LH50

Fuses:

The mains fuses are safety cutouts.

4 Mains circuit breakers (resettable) 16 A

F1 and F3

 Compressor

F2 and F4

Heater, Pump

2 Mains circuit breakers (resettable) 10 A for the pump-motor
4 Mains circuit breakers (resettable) 16 A

0

1


Motor protection circuit breaker for compressor motor
