53

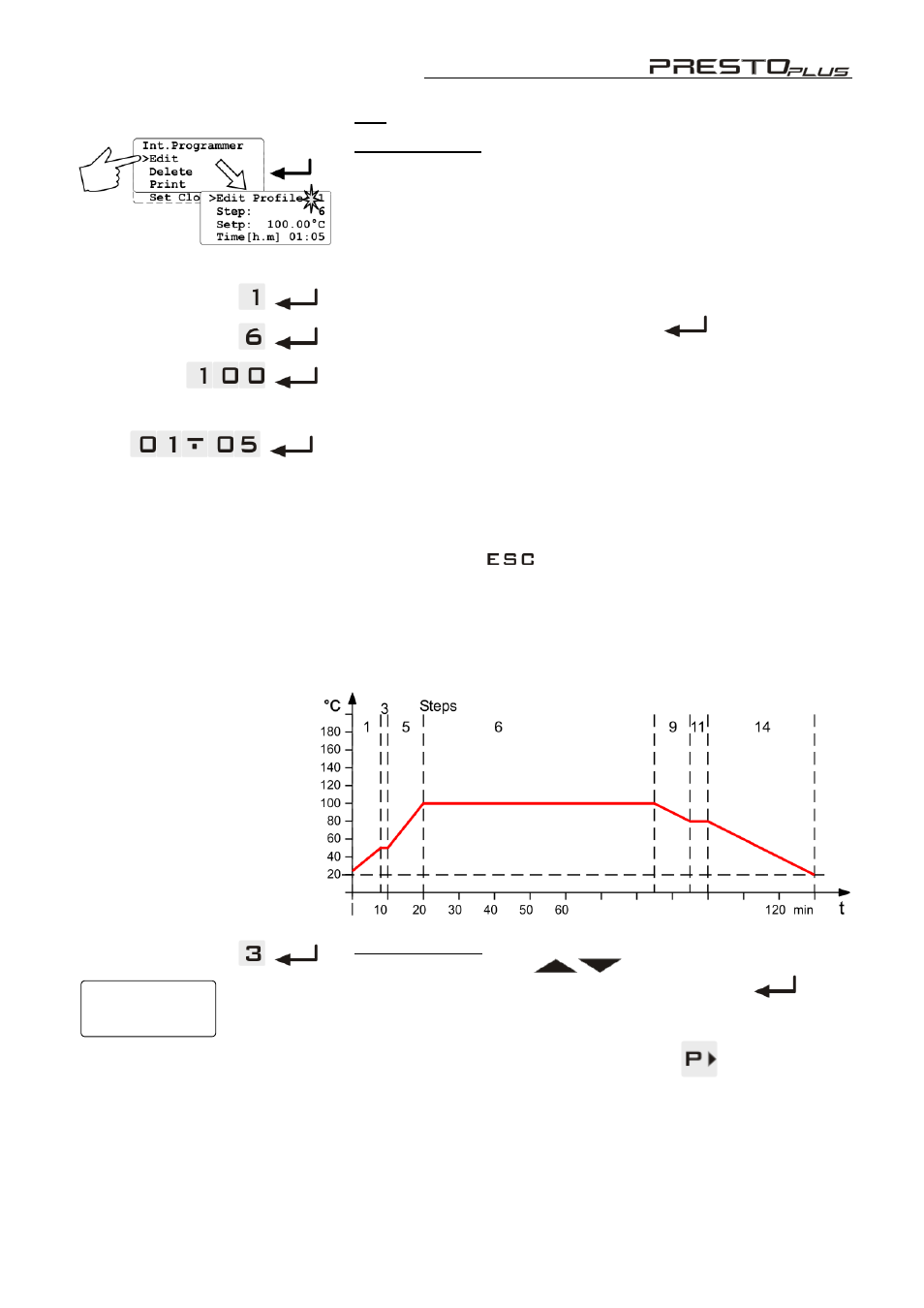

Examples:

Profile No 1:

Step

Setpoint

Time

Edit

Compile profiles:

 A flashing segment indicates that a number needs to be

entered.
Under submenu "Edit Profile" enter a profile number.
Six profiles may be stored (nos. 0 to 5).

 Then programme the desired values for each section.

Use the keypad to set section number, target temperature and

time period. Set each entry with enter

.


When the program is running, only sections having complete
information for target temperature and time period are
considered.
It makes sense, to leave out section numbers in the profile, in
order to use them later for corrections in the profile.
Important:
If a time of 00:00 is set for a profile, the profile is continued
with the next section only after the setpoint temperature
(±0.2 °C) is reached.

 Press escape

to return to the previous menu level.

Example:
Step

(No.)

1 3 5 6 9 11

14

Setpoint (°C)

50 50 100

100

80 80 20

Time

(h.m) 00:08 00.02 00:10 01:05 00:10 00:05 00:30

Step

Edit Profile: 1
>Step: 3
Setp: 50:00°C
Time[h.m] 00:02

Display sections:

1. Use the cursor keys

to select the submenu

"Step", enter the desired number and press enter

.

or
2.
If the submenu „Set“ is selected, section by section can be

shown in ascending order by the P-key

.

3. Each previously set value is displayed.
