DIGI-P122 / DIGI-P123 Installation Guide

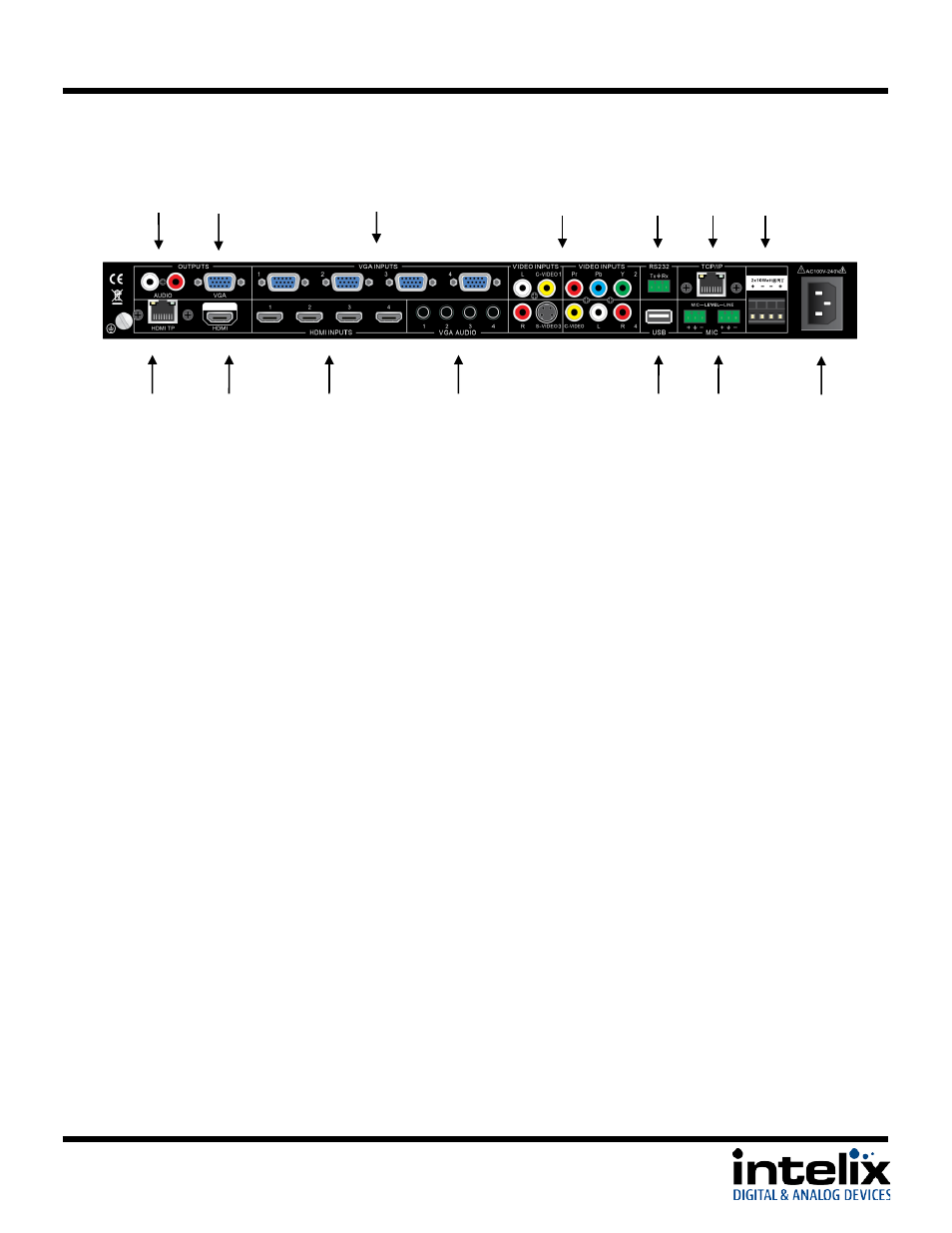

Rear Panel
Line Level Output – Always-on stereo line level output (mix of Mic and selected Source audio)
VGA Output – Scaled VGA output. If source is encrypted HDMI, no video will be output from this port.
VGA Inputs – VGA input for PC signals, combined with associated VGA audio input
Video Inputs – Analog AV inputs and associated audio inputs
C-Video 1 – Composite video and audio input. Audio is shared with S-Video 3.
YPbPr 2 – Component video and audio input. Audio is shared with C-Video 4.
S-Video 3 – S-Video and audio input. Audio is shared with C-Video 1.
C-Video 4 – Composite video and audio input. Audio is shared with YPbPr 2.
RS232 Port – Control of the device can be achieved by connecting to this with a PC Com Port or 3 rd party control system.
TCP/IP Port – Control of the device can be achieved by connecting to this with a Web Browser or 3 rd party control system.
Speaker Outputs – Stereo output for 4/8 Ω speakers. 10w/ch @ 8Ω or 20w/ch @ 4Ω
HDBaseT Output – Extender output compatible with HDBaseT receivers. Scaled video outputs with Mix audio are transmitted.
This option is only available on the DIGI-P123.
HDMI Output – HDMI output. Scaled video output with mixed audio is transmitted.
HDMI Inputs – HDMI AV input
VGA Audio Inputs – Stereo audio inputs associated with VGA Inputs
USB Port – Used for firmware updating
Microphone audio input – Microphone or Line level input intended for use for speech reinforcement. Audio is mixed with source
audio and the resulting mix is transmitted on the HDMI, VGA, speaker, and HDBaseT outputs.
110-240VAC Input – AC Power Inlet
Line Level
Output
110-240 VAC
Input
VGA
Output
VGA
Inputs
Video
Inputs
RS232
Port
TCP/IP
Port
Speaker
Outputs
HDBaseT
Output (DIGI-
P123 only)
HDMI
Output
HDMI
Inputs
USB
Port
VGA Audio
Inputs
Microphone
Audio Input
7
