DIGI-P122 / DIGI-P123 Installation Guide

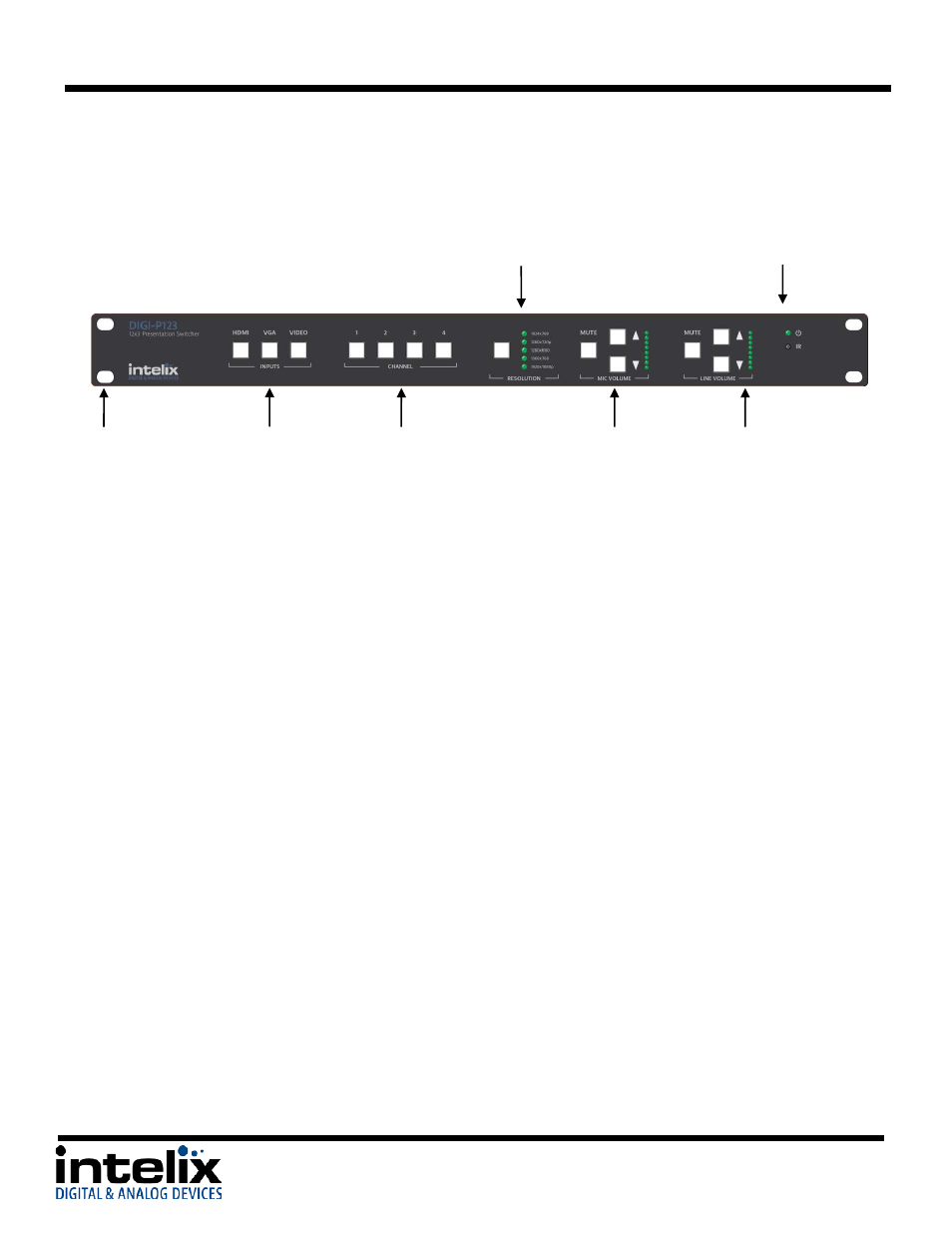

Front Panel
Resolution Selector Button and Indicator – Sets the resolution for the output. All video input signals will be scaled to this
resolution.
Power LED/IR Receiver – Power LED will indicate whether the unit is on. Point IR remote at IR receiver for remote control
operation. If using a 3 rd party IR control, place IR emitter over this window.
Integrated Rack Ears – 19” standard ears for mounting in equipment rack
Input Type Selector Buttons – Selects one of three input types to be displayed
Input Channel Selector Buttons – Selects one of four input channels (contingent upon input type selected). Press the Input Type,
then Input Channel to cause the unit to switch inputs.
Mic Volume and Mute Button / Indicators – Changes the level of the audio input connected to the mic/line input. This audio
input will mix with the “Line Audio”. Resulting mixed audio will be output on HDMI, line level output (VGA), and speaker level
output, as well as the HDBaseT output (DIGI-P123).
Line Volume and Mute Button / Indicators – Changes the level of the audio associated with the selected video input. This audio
input will mix with the “Mic Audio”. Resulting mixed audio will be output on HDMI, line level output (VGA), and speaker level
output, as well as the HDBaseT output (DIGI-P123).
Explanation of use for the front panel control is located in the section Front Panel Operation (page 9).
Input Channel
Selector Buttons
Input Type
Selector Buttons
Integrated
Rack Ears
Power LED/ IR
Receiver
Resolution Selector
Button and
Indicator
Mic Volume and
Mute Button /
Indicators
Line Volume and
Mute Button /
Indicators
6
